Description
MODEL: Bosch GCM18V-305GDC Solo

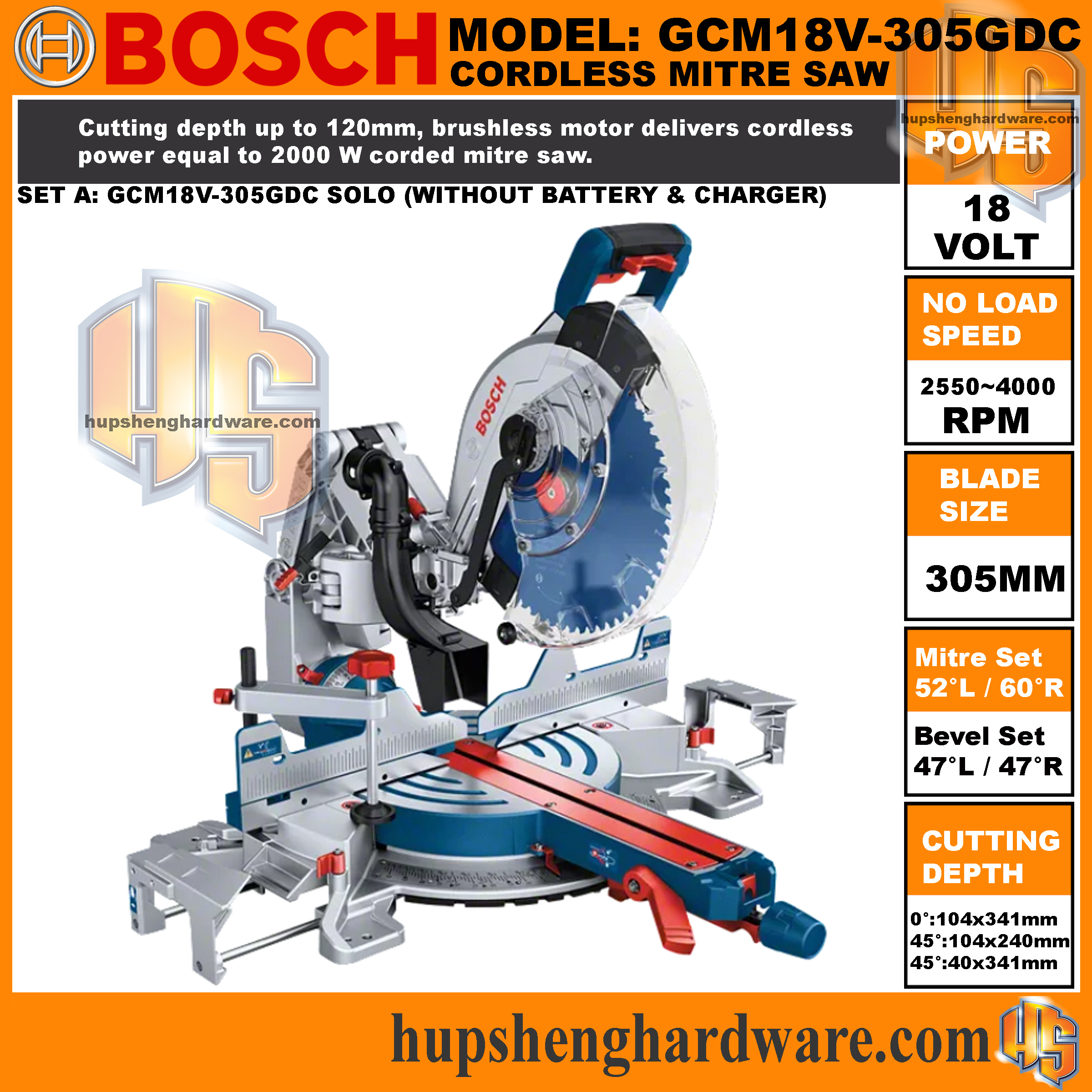

Bosch GCM 18V-305 GDC Professional BITURBO cordless mitre saw offers powerful cutting depth with cuts up to 120 mm. Fully optimised for the ProCORE18V technology, the mitre saw’s brushless motor delivers cordless power equal to 2000 W corded mitre saw.
ACCESSORIES INCLUDED
- WITHOUT BATTERY & CHARGER
- Clamp
- Dust bag
- 305mm Saw blade
- Insert plate
- Carton Box
FEATURES
- Brushless motor powered by ProCORE18V battery delivers cordless power equal to 2000W corded mitre saw

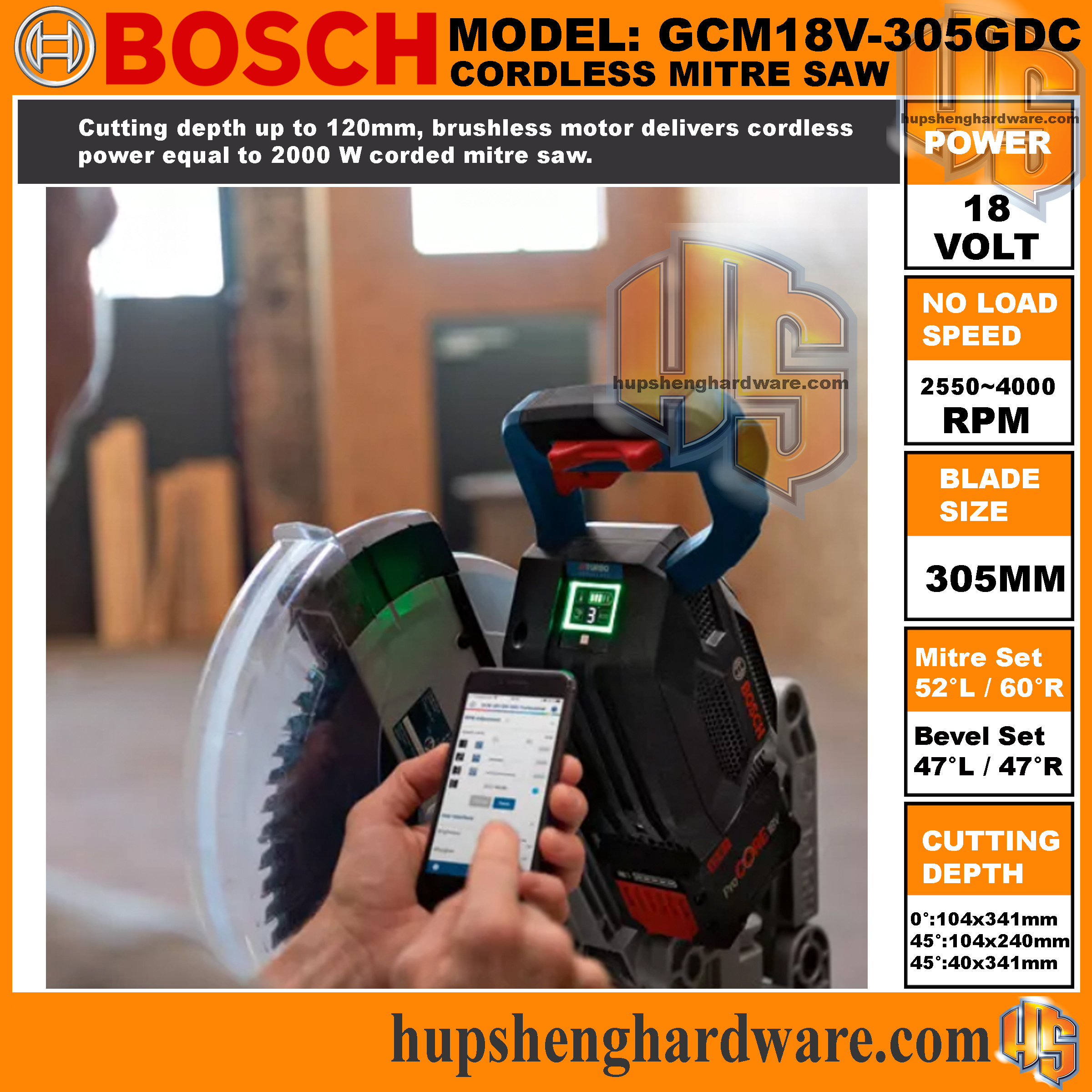

- HMI and connectivity for battery status check; speed selection including ECO mode
- Tool-less blade change; upfront bevel control; motor brake; space-saving glide arm for safe and convenient operation
SPECIFICATIONS
| Saw blade diameter | 305 mm |
| Mitre setting | 52 ° L / 60 ° R |
| Bevel setting | 47 ° L / 47 ° R |
| Battery voltage | 18.0 V |
| Weight | 26.6 kg |
| Cutting capacity, 0° | 104 x 341 mm |
| Cutting capacity 0° with spacer (max. vertical) | 120 x 200 mm |
| Cutting capacity 0° with spacer (max. horizontal) | 45 x 400 mm |
| Cutting capacity, 45° mitre | 104 x 240 mm |
| Cutting capacity, 45° bevel | 40 x 341 mm |

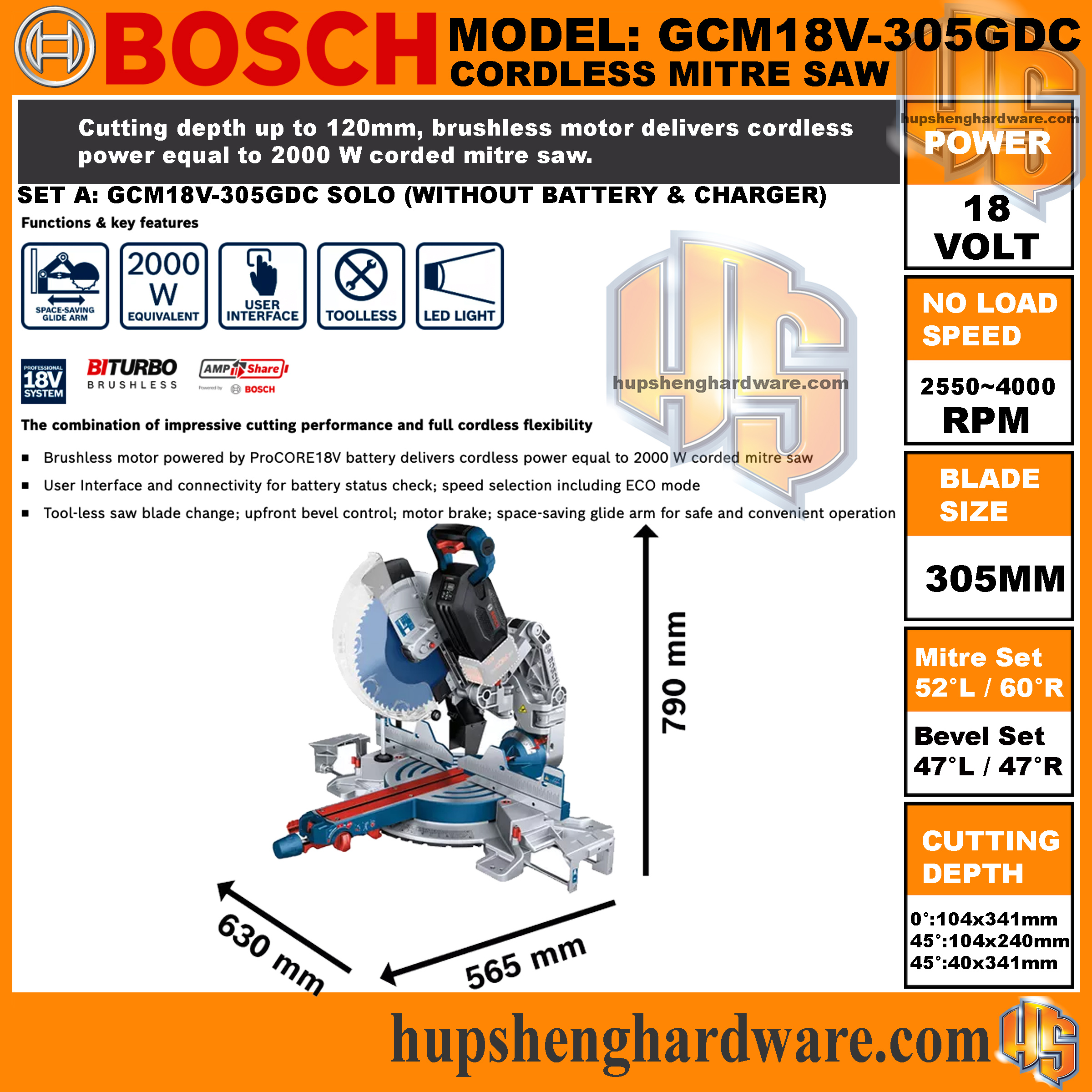

| Tool dimensions (width x length x height) | 565 x 630 x 790 mm |
| No-load speed | 2,550 – 4,000 rpm |
| Saw blade bore diameter | 30 mm |
