Description

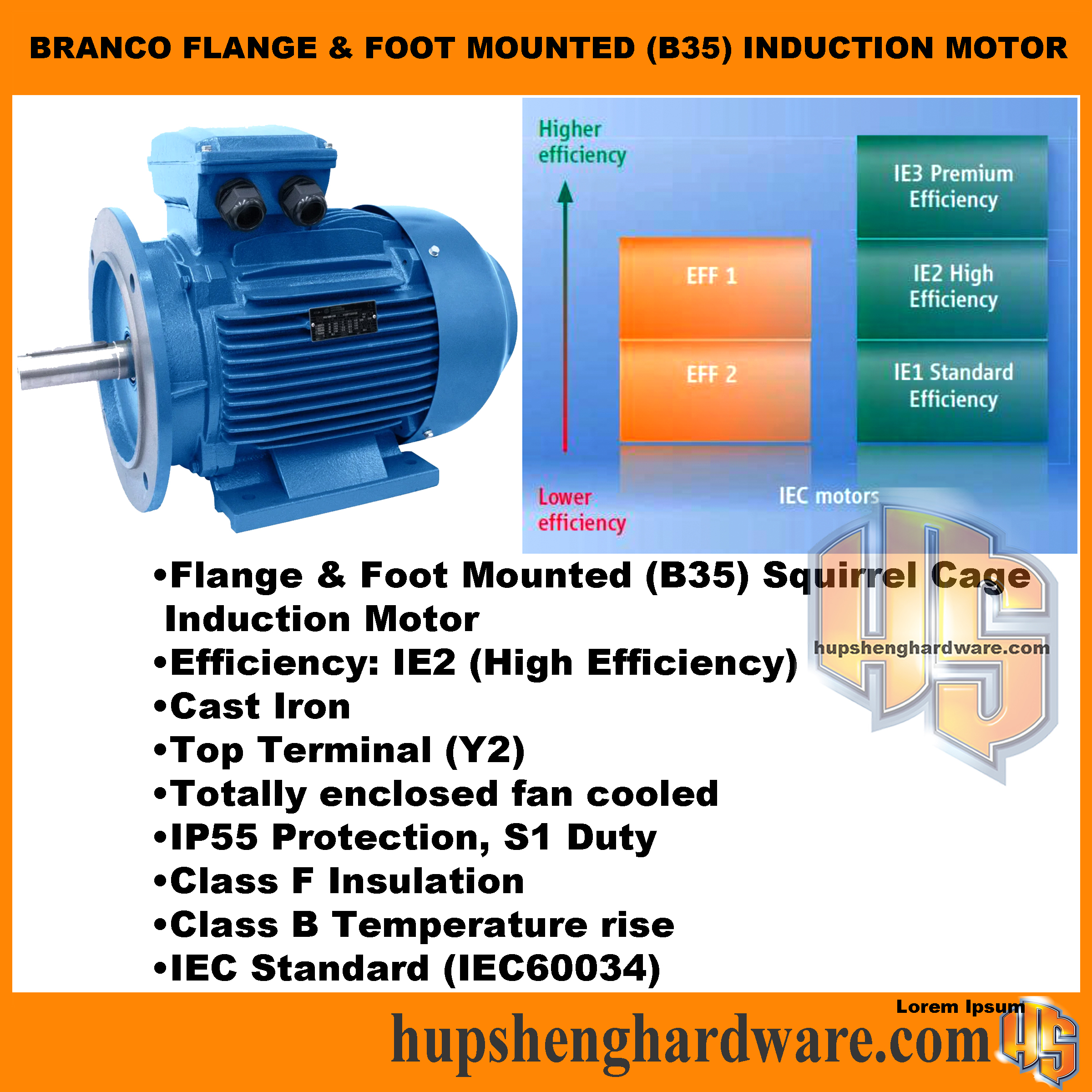

Model: BRANCO BR2-B35-100L1-4
BRANCO BR2-B35-100L1-4 high efficiency (IE2) squirrel cage flange & foot mounted induction motor designed with totally enclosed fan cooled.
Features
- IE2: High efficiency
- Totally enclosed fan cooled
- IP55 Protection, S1 Duty
- Class F Insulation
- Class B Temperature rise
- IEC Standard (IEC60034)
- Low noise
- Low vibration
- Ambient temperature : -15℃ ~ 40 ℃
Specifications
| Power | 2.2kW (3.0HP) |
| Current | 4.4A, 415V, 50Hz |
| Rotation Per Minute | 1425 rpm |
| Power Efficiency | 84.3% (100% Full Load) |
| Power Factor cosθ | 79% (100% Full Load) |
| Weight | +/-42 kg |
