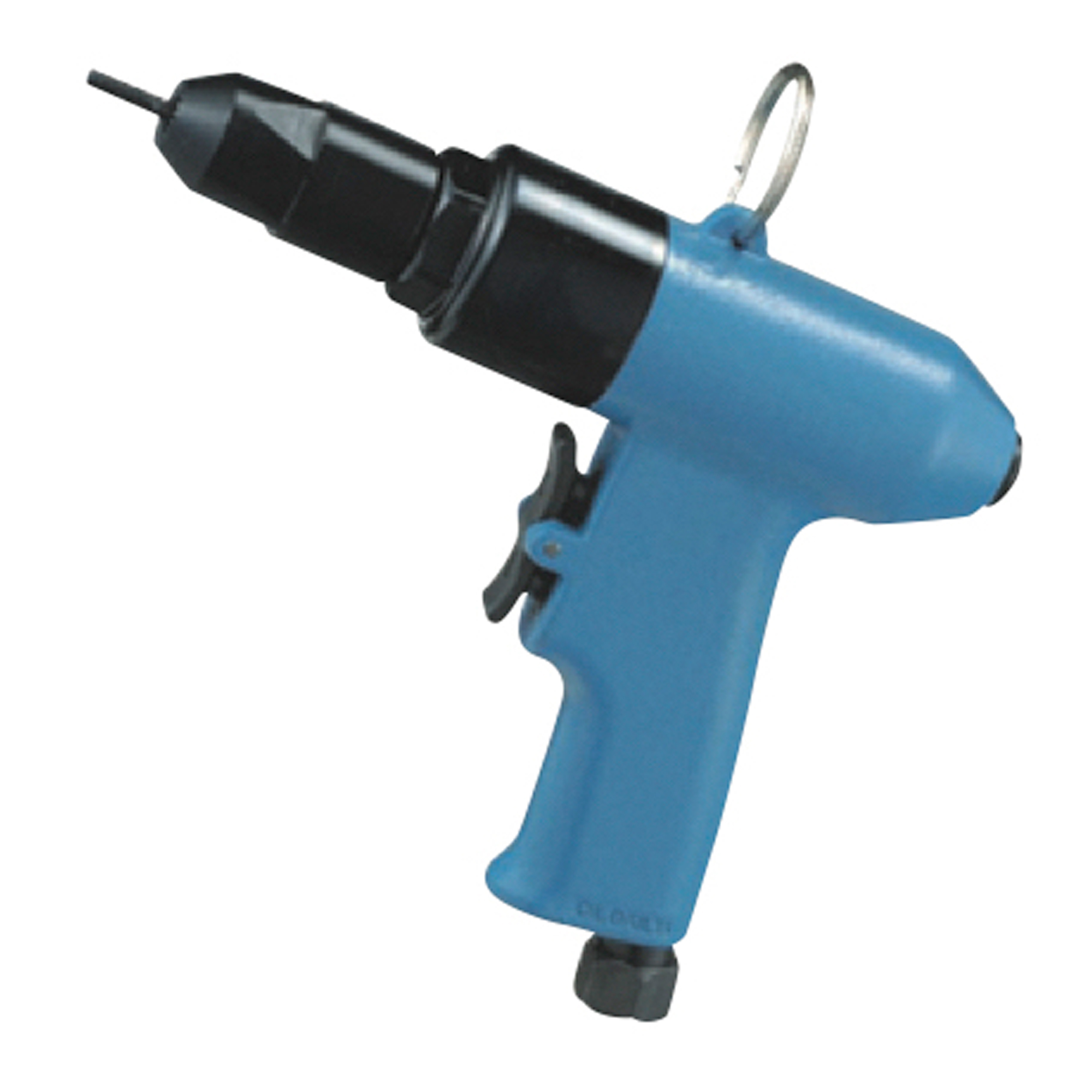

GISON GP836LC1: Pneumatic Pull Nut Setter, Mechanism: Gear, Speed: 700rpm, Nut Size: 3, 4, 5, 6mm, 1.2kg

Description

Model: GP836LC1

Gison GP836LC1 (made in Taiwan) is a pneumatic pull nut settler with gear mechanism.

Features

  • Air Pull Nut Setter (600rpm)

Applications

  • Aluminium Nut
  • Steel Nut

Specifications

Mechanism Gear Type
Optional Pulling Nut 3mm, 4mm, 5mm, 6mm
Free Speed 600 rpm
Net Weight 1.20 kg
Length 200 mm
Air Consupmtion 0.20 m3/min
Air Inlet 1/4″
Hose Size 6.5 mm
Air Pressure 90 psi

Optional Accessories

  • Nut 3mm & 4mm
  • Nut 5mm & 6mm
  • Nut 8mm & 10mm

Additional information

Weight 2.5 kg
