Description
MODEL: GRUNDFOS SCALA1 3-35 (Price is Negotiable)
Part Number: 99530424
Grundfos SCALA1 3-35 is a self-priming, multistage pump, which combines all of the components of a pressure booster into a compact composite enclosure.
APPLICATIONS
- pressure boosting of city mains water
- pressure boosting of water from roof tank
- pressure boosting of water from break tank
- pressure boosting of water from ground tank
- water supply from shallow wells [8 m (26.2 ft)]
- garden irrigation
- water transfer.

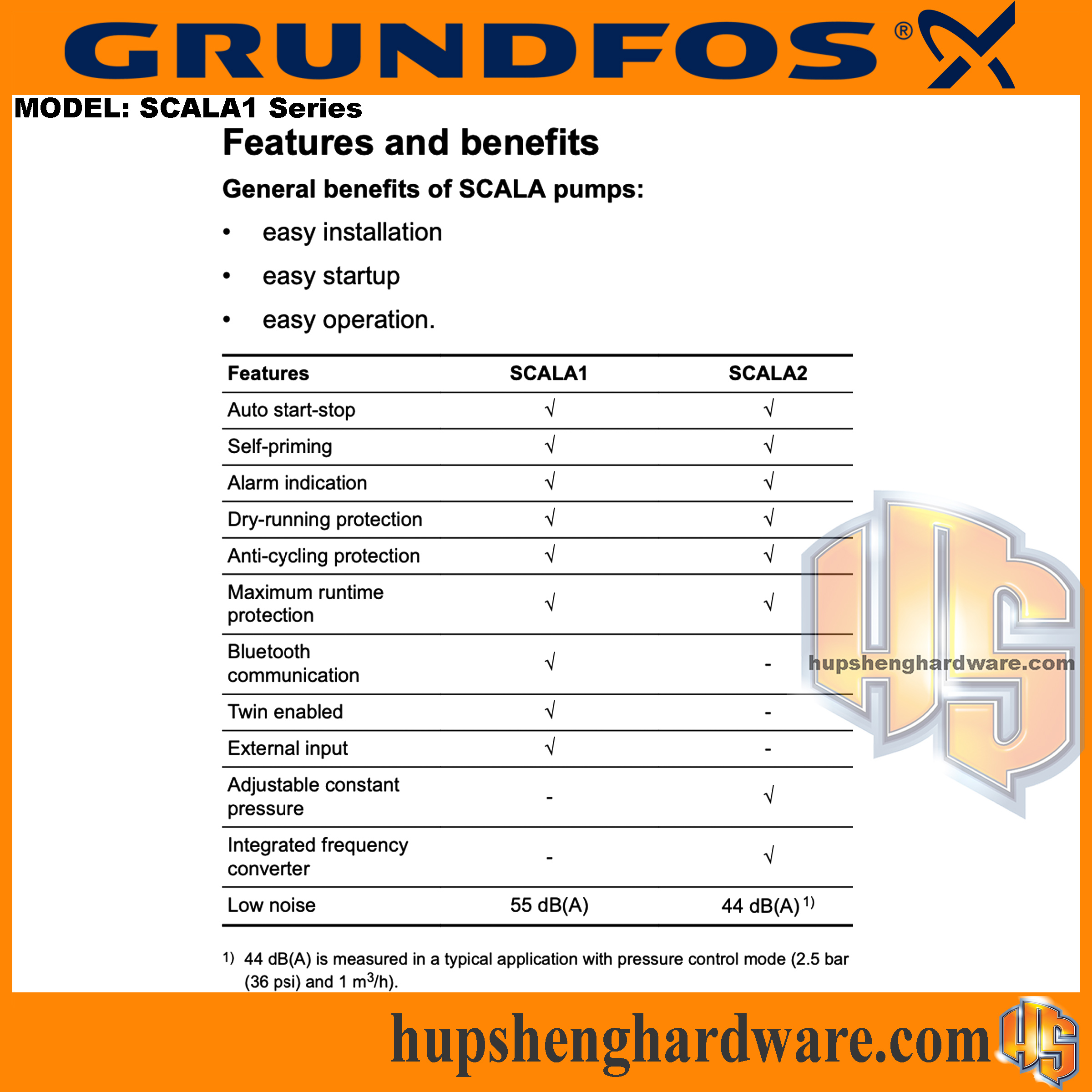

FEATURES
- Water on demand.
- All-in-one integrated booster.
- Bluetooth communication.
- External input.
- Low noise level < 55 dB(A).
PROTECTION FEATURES
- Dry-running protection
The product incorporates dry-running protection that automatically stops the pump from running without liquid. Dry-running protection means less risk of pump damage and lower maintenance costs. - Micro-leakage detection
The micro-leakage detection prevents the product from starting and stopping too often in case of a minor leakage in the system or if a tap has not been closed completely. The anti-cycling function will stop the pump, and an alarm will be indicated.
The factory setting for this function is on. - Maximum runtime
The maximum runtime function is a timer that can turn the pump off if it runs continuously for a certain amount of time. This time period is adjustable via Grundfos GO app.
PUMPED LIQUIDS
- clean, thin, fresh water
- pH value 4~7
- Sand and other impurities in the water can cause wear to the pump and pump blockage. Therefore, we recommend that you install a filter on the inlet side or apply a floating strainer to protect the pump.

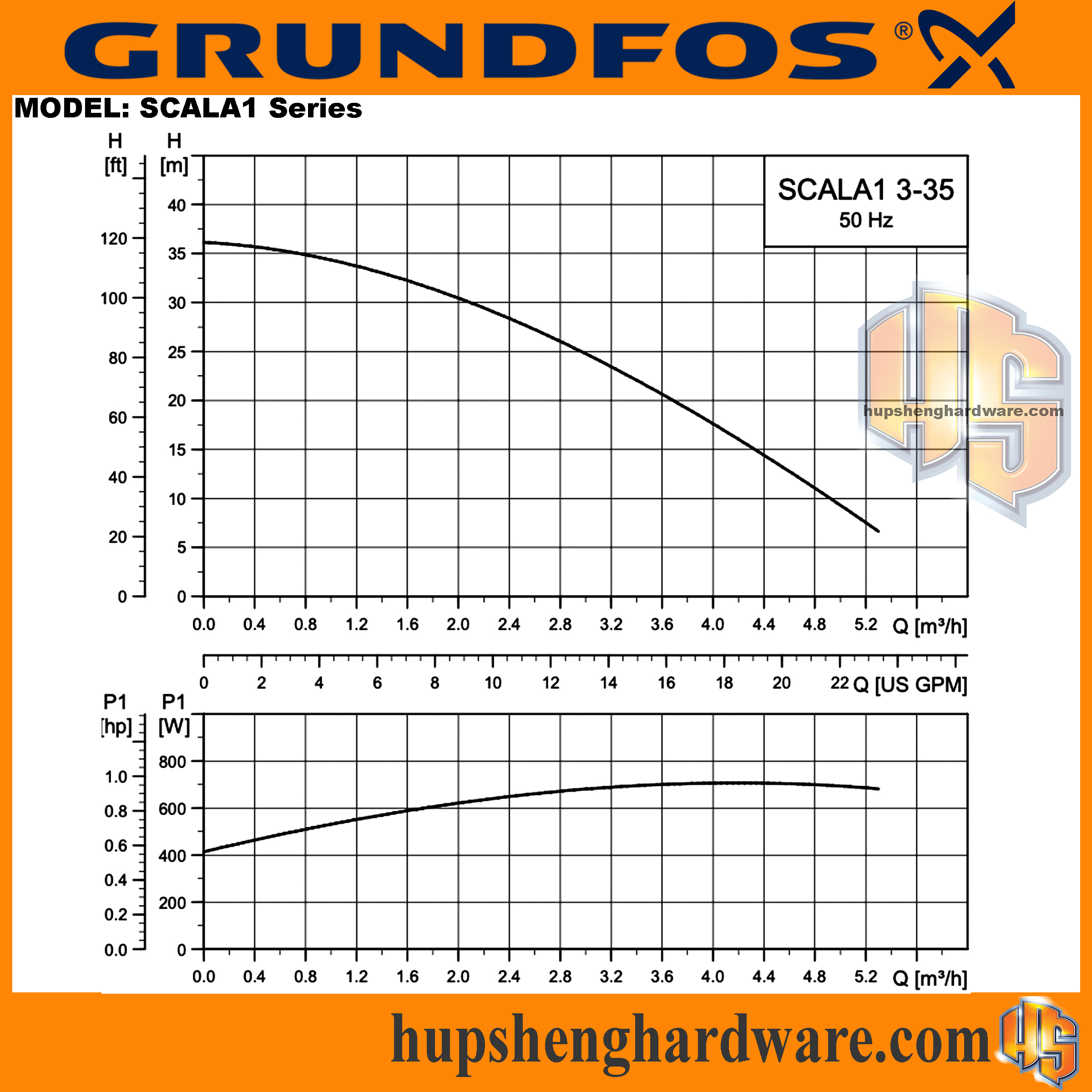

SPECIFICATIONS
| Size Discharge | 1″ x 1″ |
| Power | 720 W / Single phase |
| Nominal Flow Rate | 60 L/min |
| Max Head/Nominal Head | 36/20 meters |
| Manometric Suction Lift | Max. 8 meters |
| Liquid Temperature | Max. +45°C |
| Environment Temperature | Max. +40°C |
| Weight | 12kg |
