Description

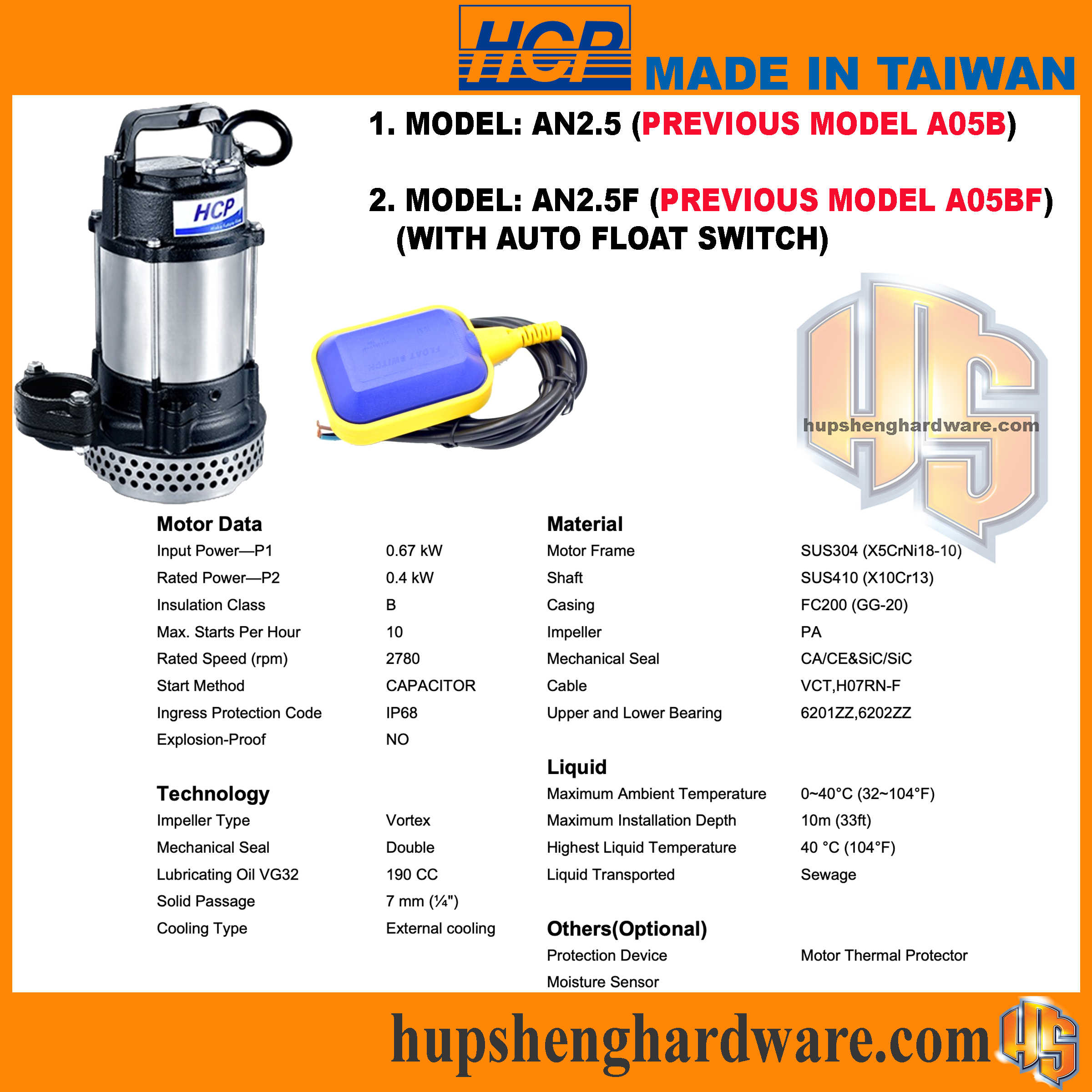

Model: HCP AN2.5 (Price is negotiable)
HCP AN2.5 is a submersible sewage pump with vortex impeller. The AN Series Submersible Wastewater Sump Pumps are light weight and portable with strainers that block foreign matter.
- Without auto float switch
- Made in Taiwan
- Previous Model: A05B
Features
- A precision manufactured motor is achieved by utilising the highest standard of quality control.
- All rotors adopt heat treatment methods for drive shaft assembling.
- Stator winding impregnated with varnish that is heat dried in an industrial oven.
- Standard accessories include : cable with an epoxy resin sealed water resistant cable base, Auto-cut thermal motor protector, dual mechanical seals and lip seal design.
Applications
- Drainage of sewage from the building basements, hotel industry, and waste water from factories
- Drainage of sewage from industrial process factories
- Emptying of septic tanks, cesspits and sewage pump stations.
- Pumping surface and drainage water from garages and sprinkler systems.
Limits of Use
- Liquid Temperature: 0~40°C
- Installation Depth: 10m

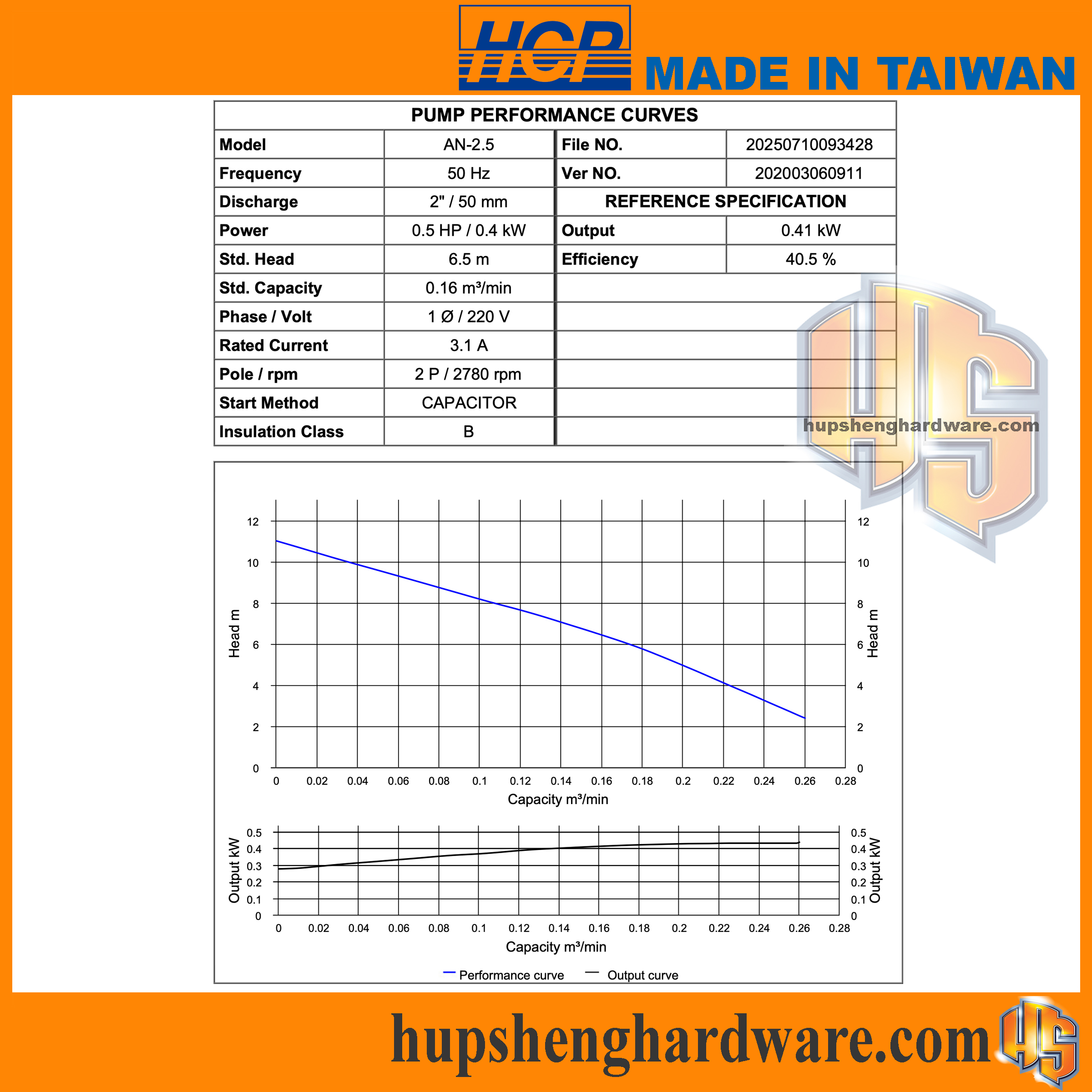

Specifications
| Power | 0.5 HP (400 watts) |
| Discharge | 2″ (50mm) |
| Phase | 1Ø |
| Start Method | Capacitor |
| Efficient / Maximum Head | 6.5 / 11 meters |
| Efficient / Maximum Flow Rate | 160 / 260 L/min |
| Solid Passage | 7mm |
| Weight | 13.5 kg |
