Description
Model: 4839-1

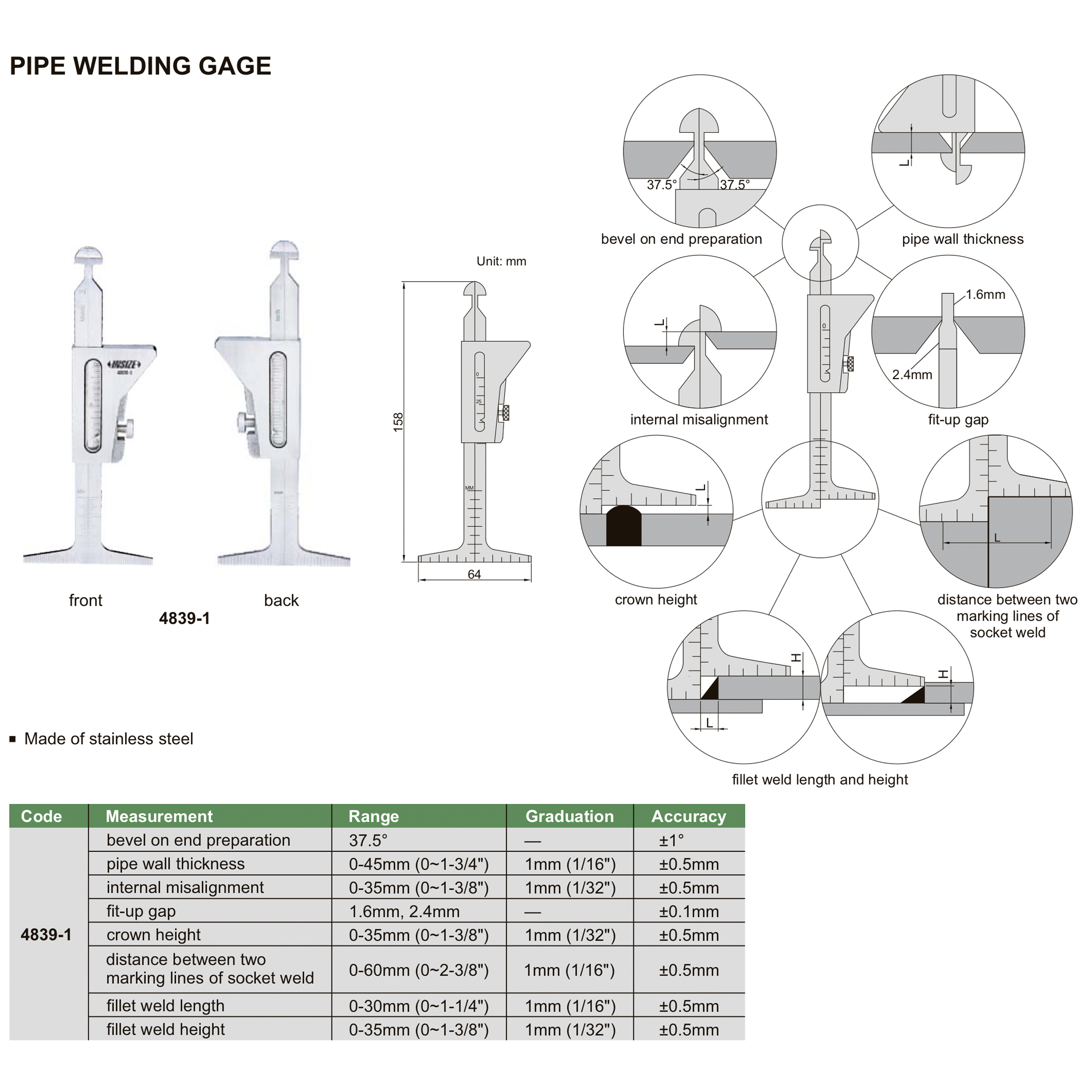

Insize 4839-1 is a pipe welding gage made of stainless steel.
Features
- Made of stainless steel
Specifications
| Measurement | Range | Graduation | Accuracy |
| Bevel on End Preparation | 37.5° | – | +/-1° |
| Pipe Wall Thickness | 0-45mm(0-1-3/4″) | 1mm(1/16″) | +/-0.5mm |
| Internal Misalignment | 0-35mm(0-1-3/8″) | 1mm(1/32″) | +/-0.5mm |
| Fit-up Gap | 1.6mm, 2.4mm | – | +/-0.1mm |
| Crown Height | 0-35mm(0-1-3/8″) | 1mm(1/32″) | +/-0.5mm |
| Distance Between Two Marking Lines of Socket Weld | 0-60mm(0-2-3/8″) | 1mm(1/16″) | +/-0.5mm |
| Fillet Weld Length | 0-30mm(0-1-1/4″) | 1mm(1/16″) | +/-0.5mm |
| Fillet Weld Height | 0-35mm(0-1-3/8″) | 1mm(1/32″) | +/-0.5mm |
