Description
Model: LEO 4ACm60 (Price is Negotiable)

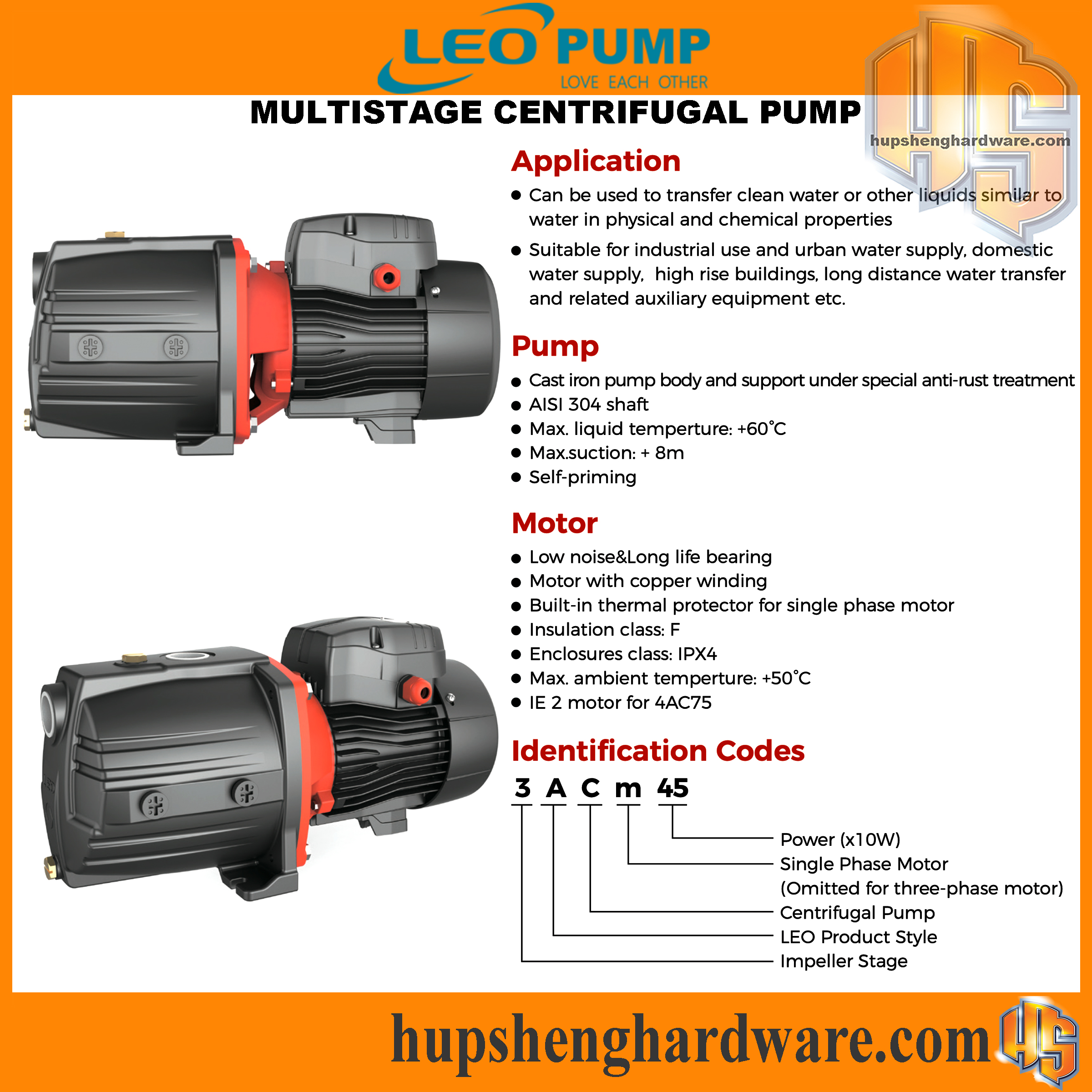

LEO 4ACm60 is a multistage centrifugal pump with 3 stages impeller. Suitable for industrial use and urban water supply, pressure boosting for high buildings and fire fighting,
Applications
- Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
- Suitable for industrial use and urban water supply, pressure boosting for high buildings and fire fighting, garden irrigation, long-distance water transfer, heating ventilation and air conditioning, circulation and pressure boosting for cold and hot water, and supporting equipment etc.
PUMP
- Cast iron pump body and support under special anti-rust treatment
- AISI 304 shaft
- Max. liquid temperature: +60°C
- Max. suction: +8 m
Motor
- Low noise & Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor Insulation class: F
- Enclosures class: IPX4
- Max. ambient temperature: +50°C
- IE 2 motor
Specifications
| Size Discharge | 1”x1” |
| Power | 0.6kW / 220V / 50Hz |
| Flow Rate | 5~70L/min |
| Head | 45~10 meters |
| Manometric Suction Lift | Max. 8 meters |
| Liquid Temperature | Maximum +60°C |
| Environment Temperature | Max. +50°C |
