Description
Model: LEO AJDm110/4H (Price is Negotiable)

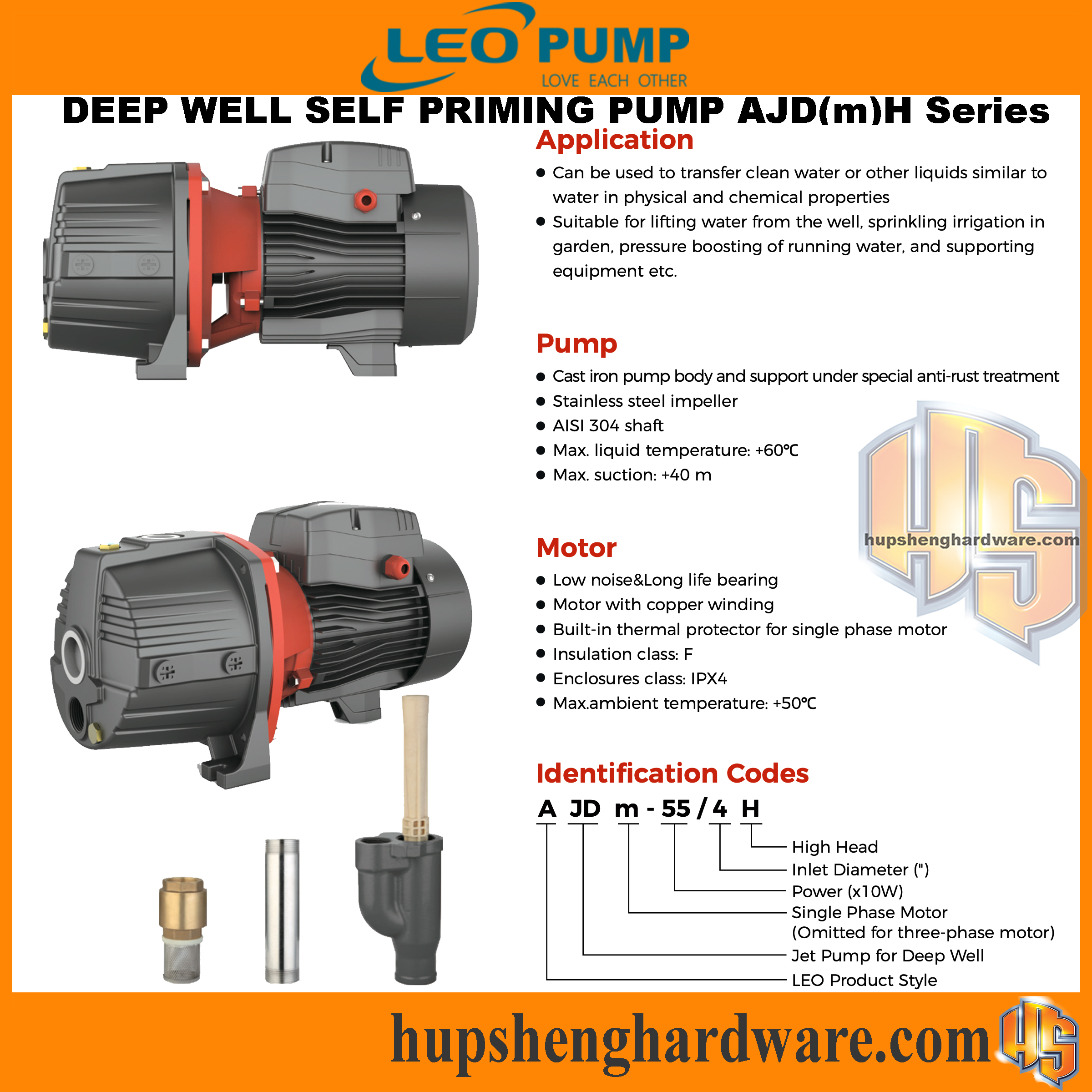

LEO AJDm110/4H is a deep well jet self priming pump. Suitable for lifting water from the well, sprinkling irrigation in garden, pressure boosting of running water.
Applications
- Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
- Suitable for lifting water from the well, sprinkling irrigation in garden, pressure boosting of running water, and supporting equipment etc.
Pump
- Cast iron pump body and support under special anti-rust treatment
- Stainless steel impeller
- AISI 304 shaft
- Max. liquid temperature: +60°C
- Max. suction: +40 m
Motor
- Low noise & Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor
- Insulation class: F
- Enclosures class: IPX4
- Max.ambient temperature: +50°C

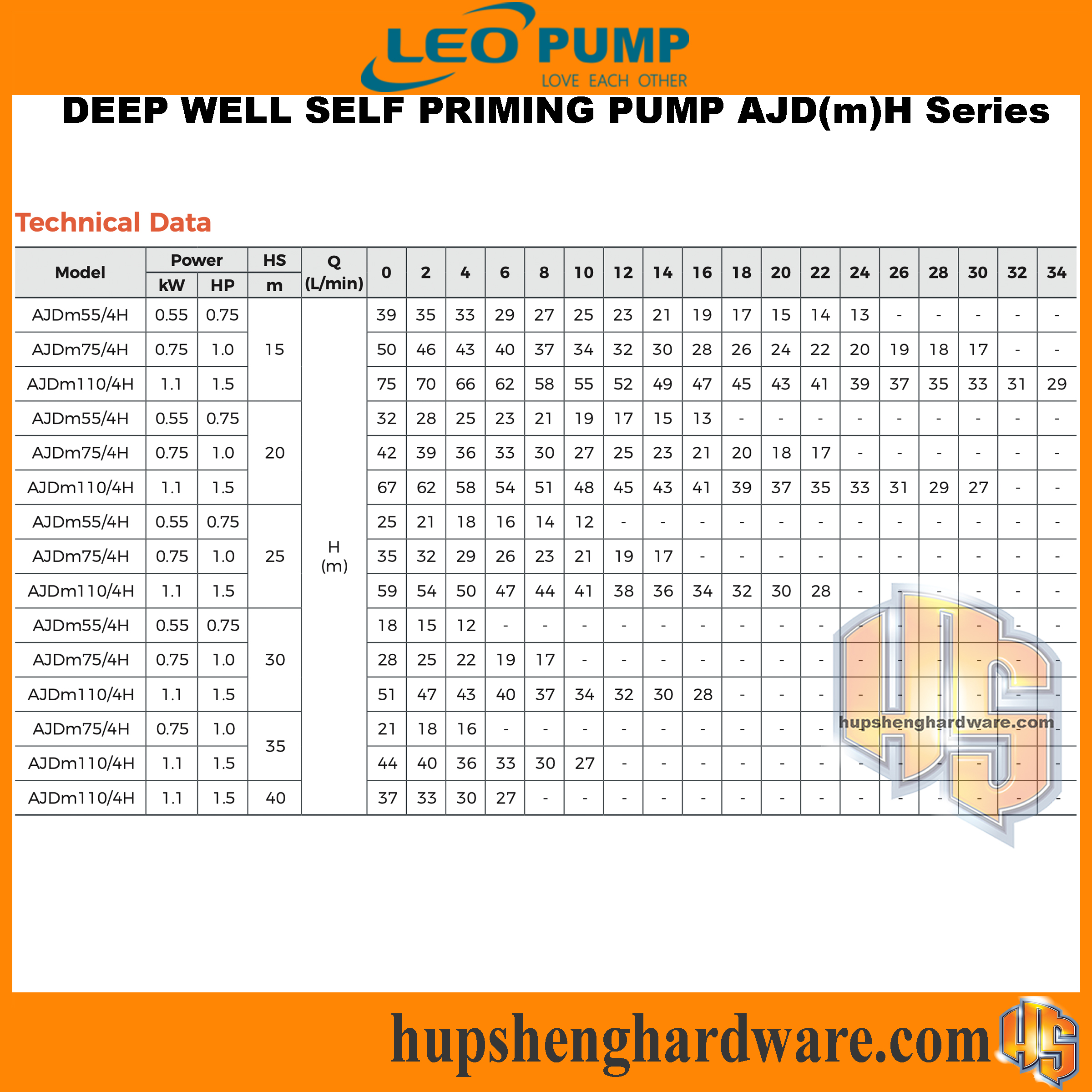

Specifications
| Size Discharge | 1¼”x1” |
| Power | 1.1kW / 220V / 50Hz |
| Flow Rate | 2~34L/min |
| Head | 70~28 meters |
| Manometric Suction Lift | Max. 40 meters |
| Liquid Temperature | Maximum +60°C |
| Environment Temperature | Max. +50°C |
