Description
Model: LEO LRP15-90A/160 (Price is Negotiable)
LEO LRP15-90A/160 is a circulation pump for pressure boosting for domestic water supply, floor heating system and solar pumping system.
Applications
- Pressure boosting for domestic water supply
- Floor heating system
- Solar pumping system
Pump
- Automatic pressure boosting
- Anti-rust cast iron pump body
- NoryI impeller with heat resistance up to 150°C
- 95% alumina ceramic shaft
- Liquid temperature: 2°C ~ 60°C
Motor
- Insulation class: H
- Enclosures class: IP44
- 99% alumina ceramic bearing

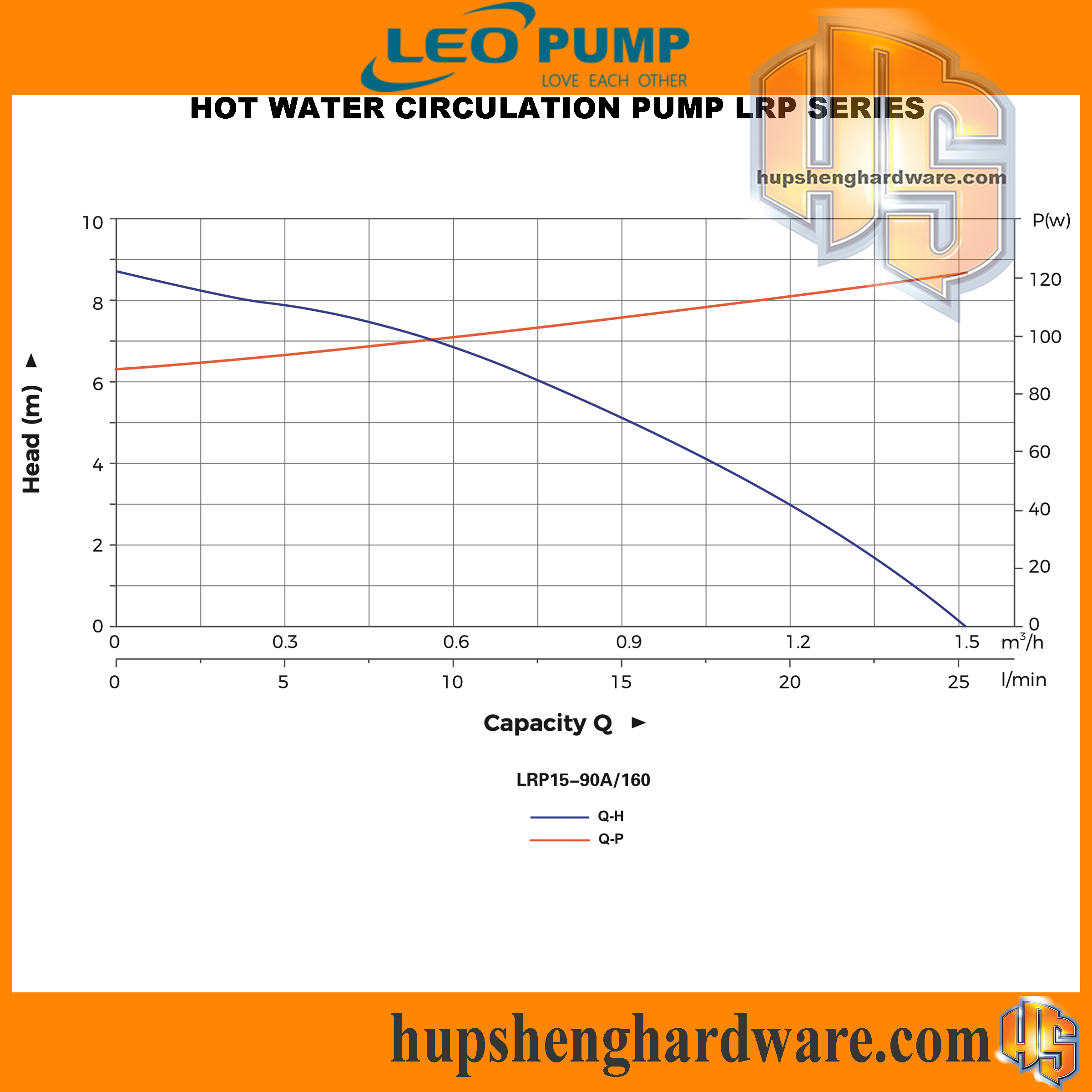

Specifications
| Size Discharge | ½”x½” |
| Power | 0.12kW / 220V / 50Hz |
| Flow Rate | 25 L/min |
| Head | 8.5 meters |
| Manometric Suction Lift | N/A |
| Liquid Temperature | Maximum +60°C |
| Environment Temperature | Max. +50°C |
