Description
Model: LEO XHSm1500 (Price is Negotiable)
LEO XHSm1500 is a self priming centrifugal pump with semi open impeller. Suitable for wastewater treatment: Used in pumps handling sewage and wastewater with small solids or fibrous material.
Applications
- Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
- Suitable for industrial use and urban water supply, pressure boosting for high buildings and fire fighting, garden irrigation, long-distance water transfer, heating ventilation and air conditioning, circulation and pressure boosting for cold and hot water, and supporting equipment etc.
PUMP
- Cast iron pump body and support under special anti-rust treatment
- AISI 304 shaft
- Max. liquid temperature: +60°C
- Max. suction: +8 m
Motor
- Low noise & Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor Insulation class: F
- Enclosures class: IPX4
- Max. ambient temperature: +50°C
- IE 2 motor

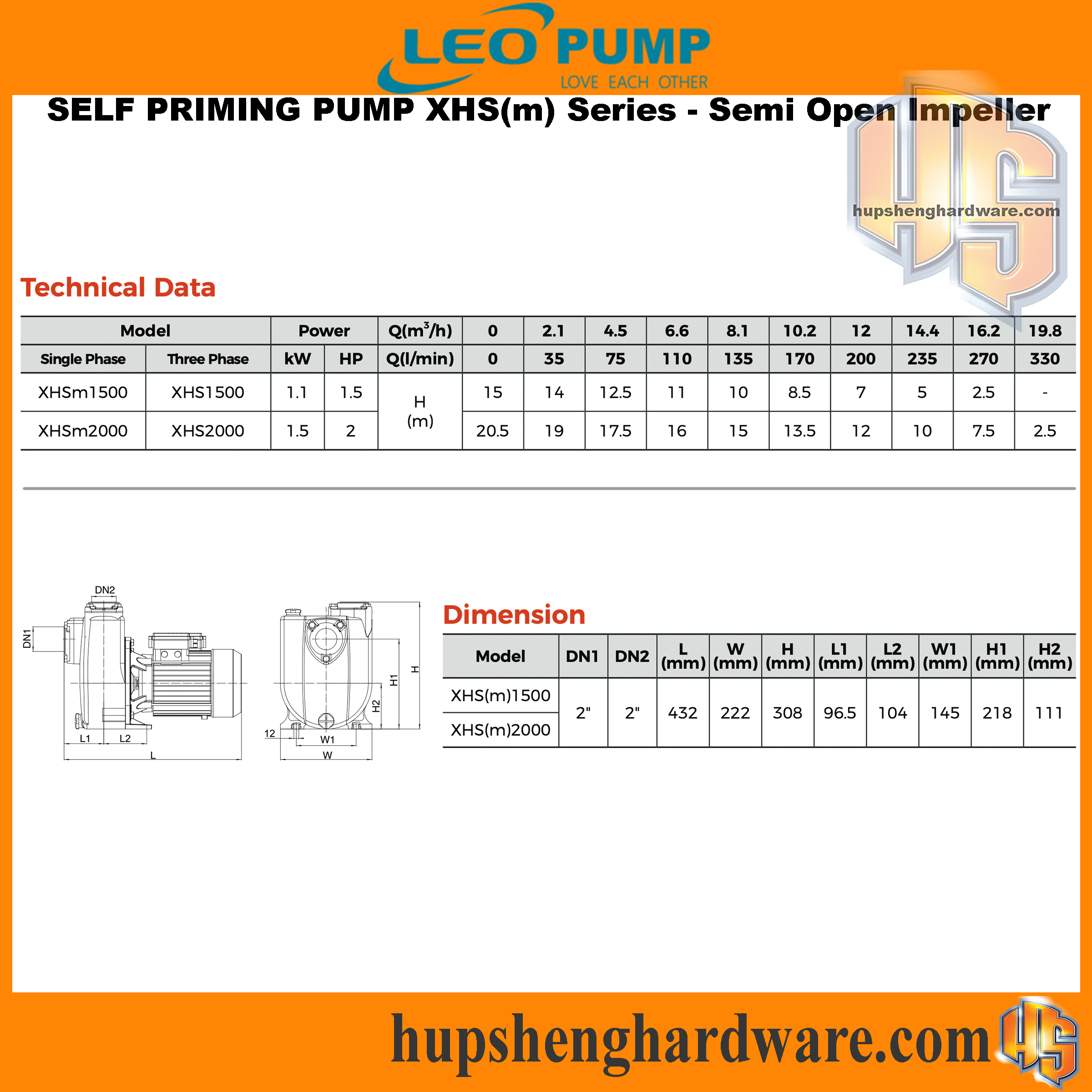

Specifications
| Size Discharge | 2”x2” |
| Power | 1.1kW / 220V / 50Hz |
| Flow Rate | 35~270L/min |
| Head | 14~2.5 meters |
| Manometric Suction Lift | Max. 8 meters |
| Liquid Temperature | Maximum +60°C |
| Environment Temperature | Max. +50°C |
