Description
Model: Mello ARC250M

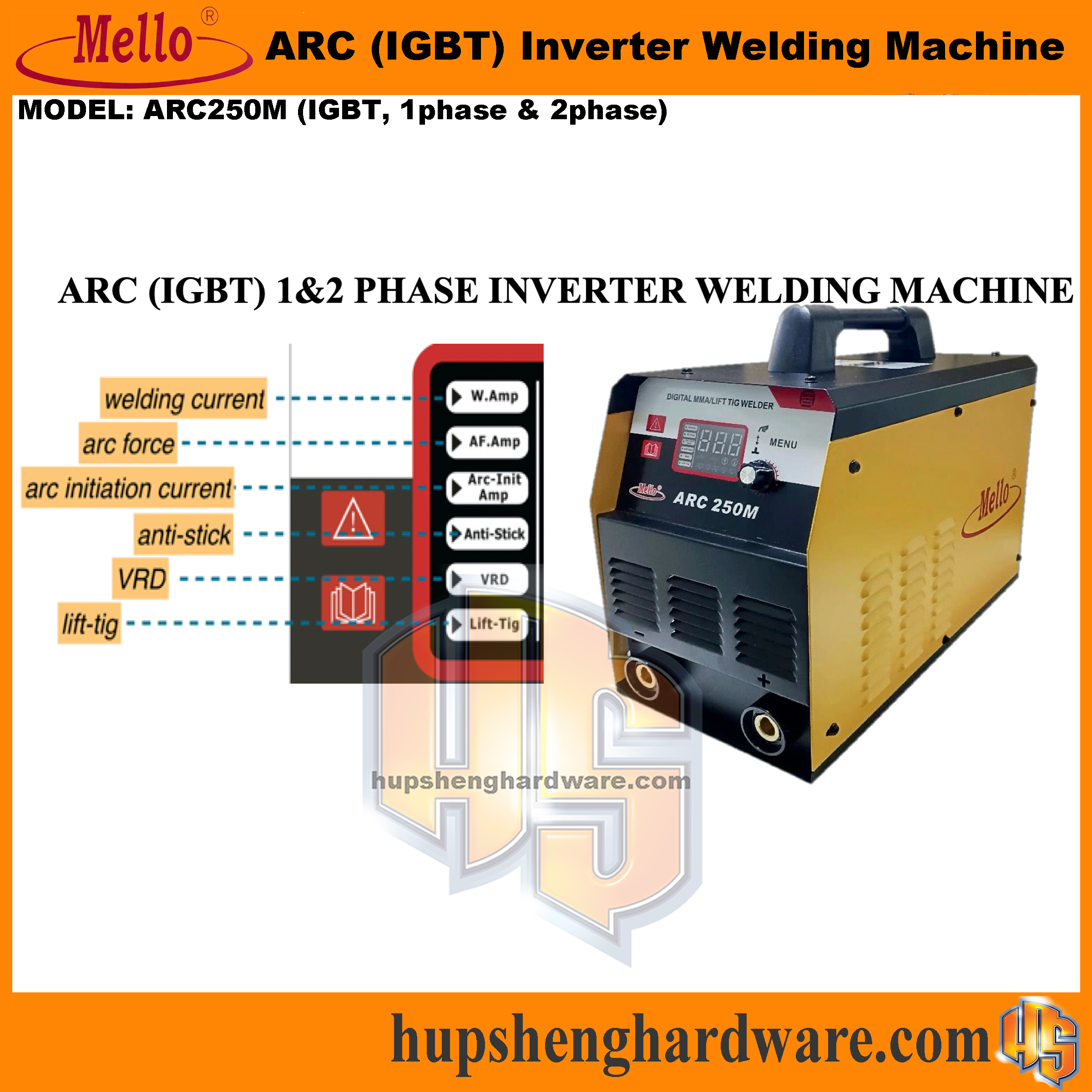

Mello ARC250M is an inverter IGBT ARC welding machine suitable for welding rod 1.6mm to 5.0mm. (1phase & 2phase)

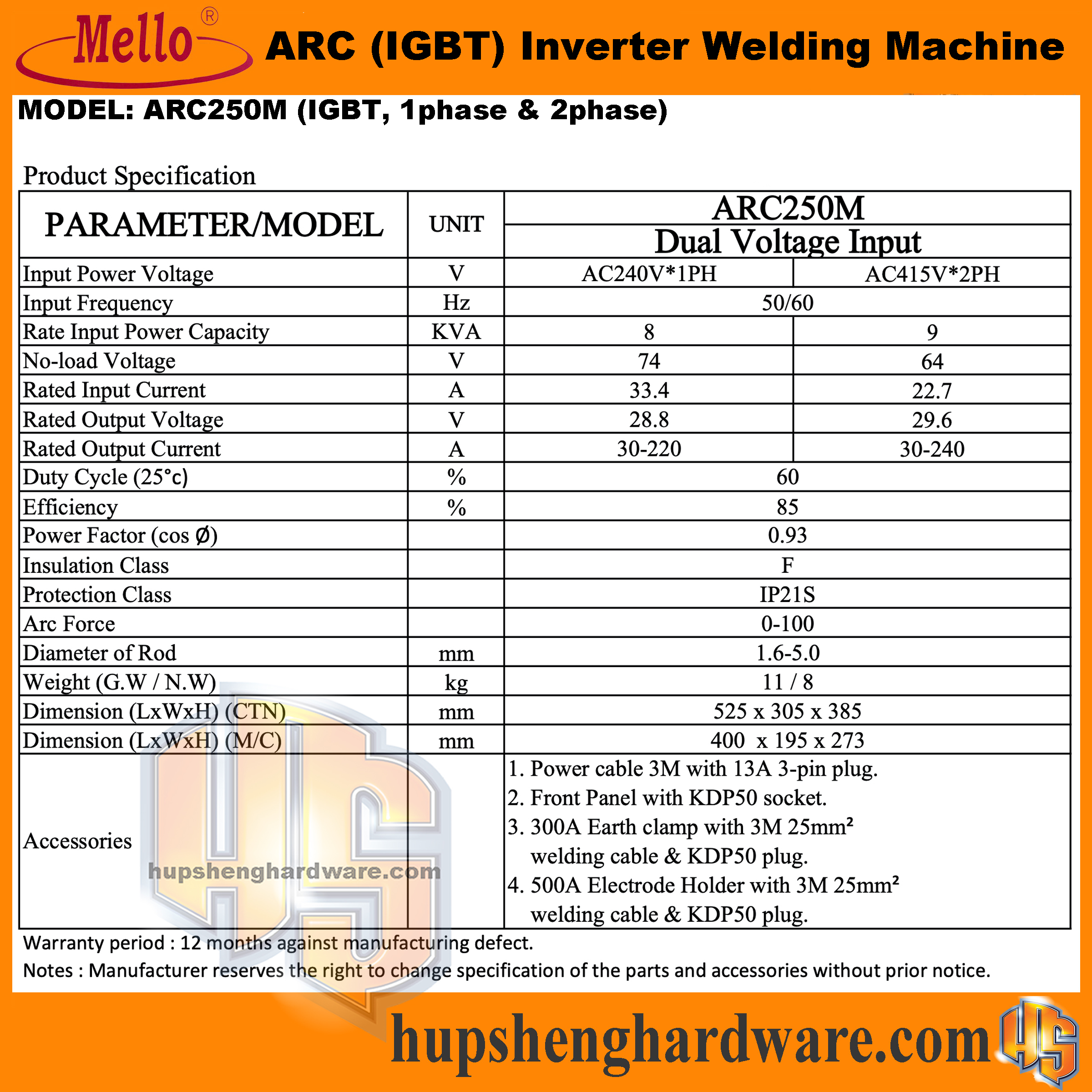

| PARAMETER/MODEL | UNIT | ARC250M Dual Voltage Input |
| Input Power Voltage | V | AC240V*1 PH AC415V*2PH |
| Input Frequency | Hz | 50/60 |
| Rate Input Power Capacity | KVA | 8 9 |
| No-load Voltage | V | 74 64 |
| Rated Input Current | A | 33.4 22.7 |
| Rated Output Voltage | V | 28.8 29.6 |
| Rated Output Current | A | 30-220 30-240 |
| Duty Cycle (25ºc) | % | 60 |
| Efficiency | % | 85 |
| Power Factor (cosø) | 0.93 | |
| Insulation Class | F | |
| Protection Class | IP21S | |
| Arc Force | A | 0-100 |
| Diameter of Rod | mm | 1.6 – 5.0 |
| Weight (G.W / N.W) | kg | 11 / 8 |
| Dimension (L x W x H) (CTN) | mm | 525 x 305 x 385 |
| Dimension (L x W x H) (M/C) | mm | 400 x 195 x 273 |
| Accessories | 1. Power cable 3M with 13A 3-pin plug. 2. Front Panel with KDZ50 socket. 3. 300A Earth clamp with 3M 25mm² welding cable & KDP50 plug. 4. 500A Electrode holder with 3M 25mm² welding cable & KDP50 plug. |
