Description

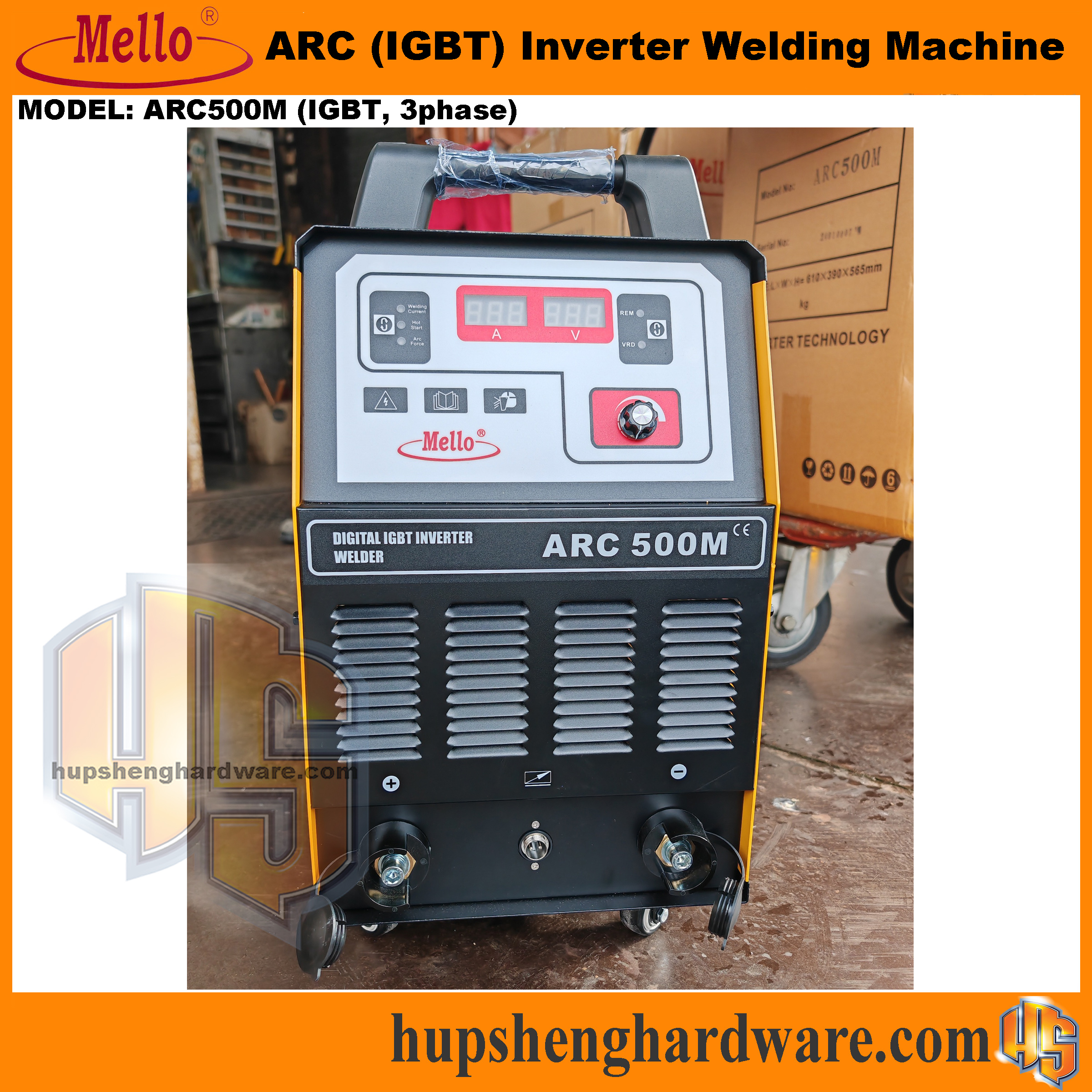

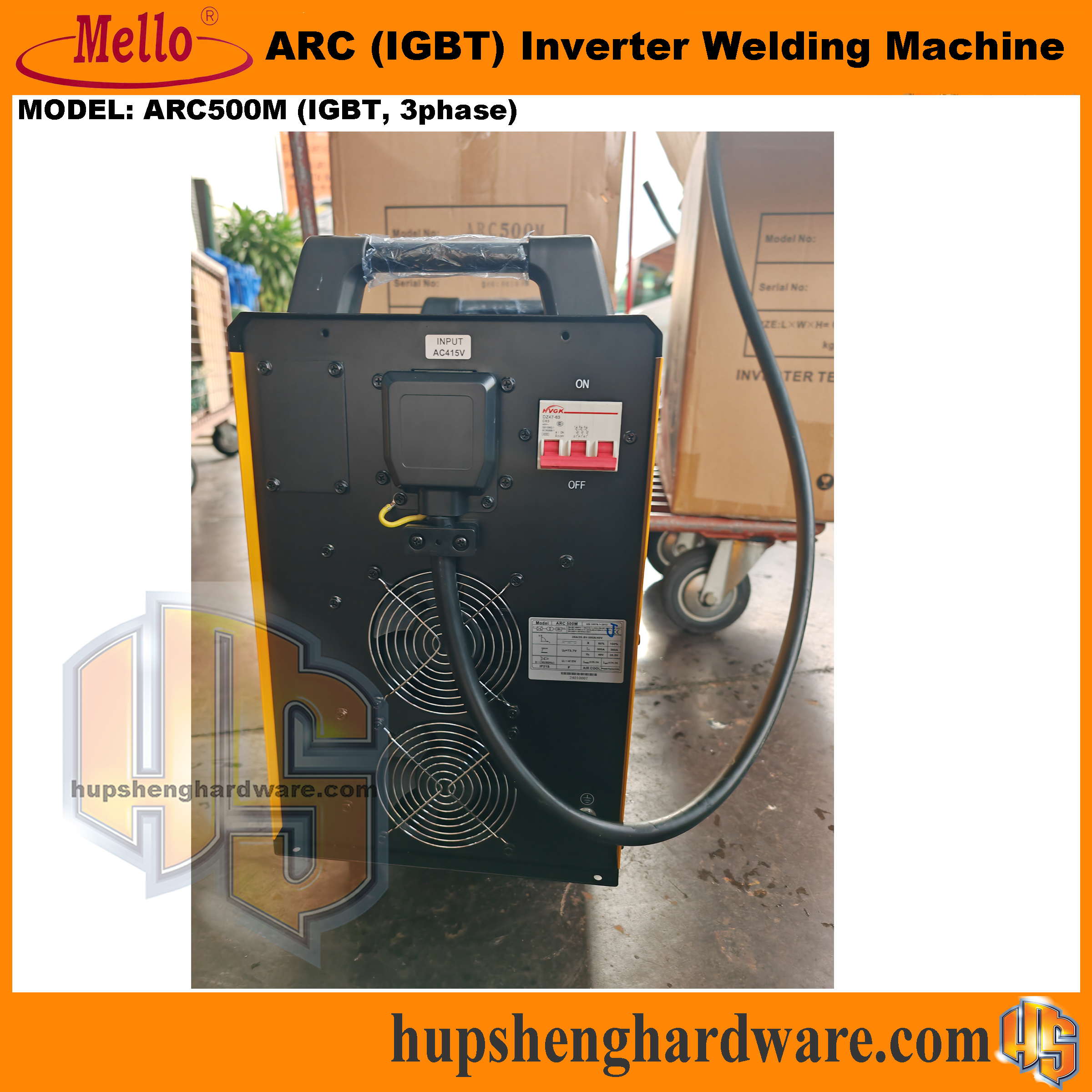

Model: Mello ARC500M
Mello ARC500M is an inverter IGBT ARC welding machine suitable for welding rod 1.6mm to 6.0mm. (3phase)

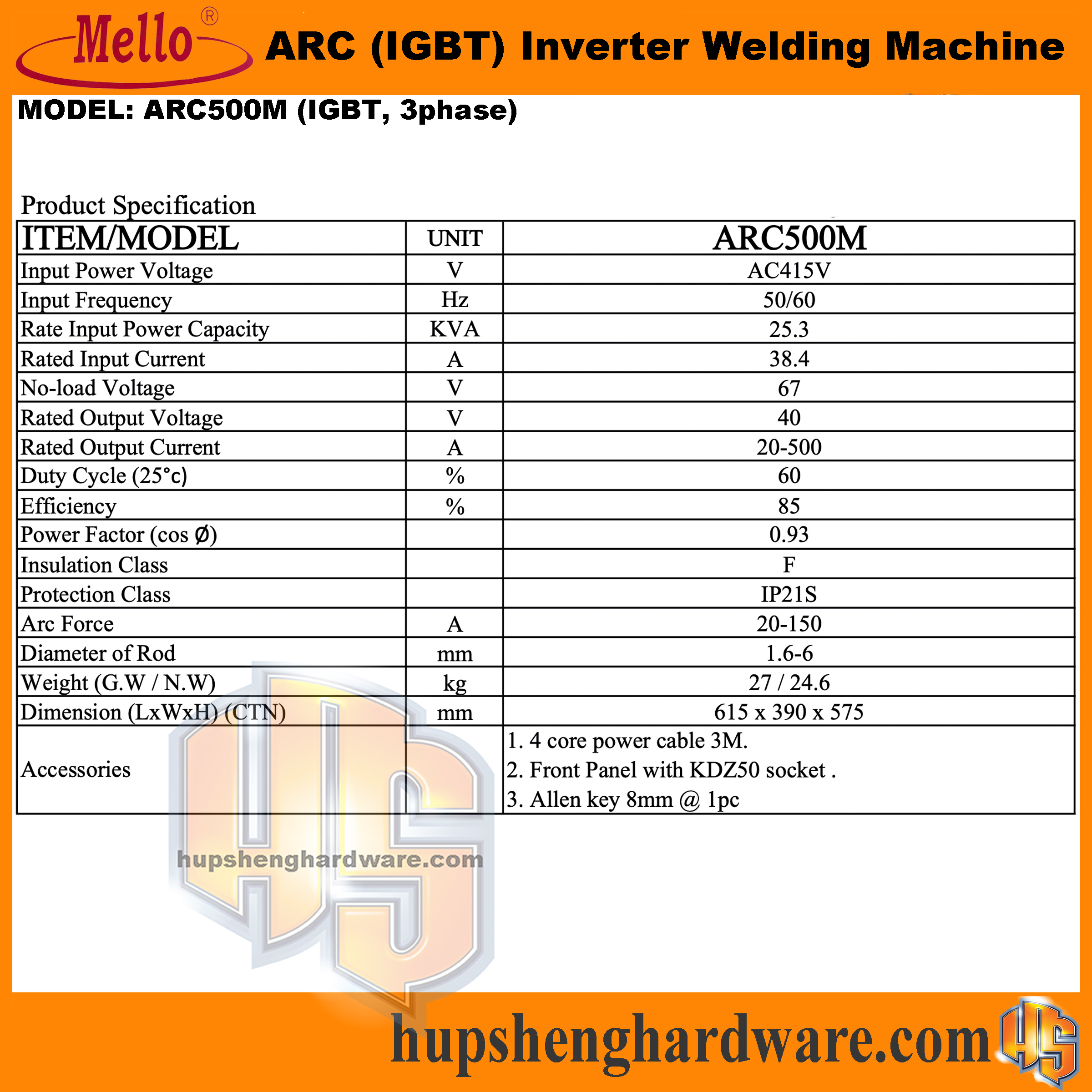

| ITEM/MODEL | UNIT | ARC500M |
| Input Power Voltage | V | AC415V |
| Input Frequency | Hz | 50/60 |
| Rate Input Current | A | 38.4 |
| Rate Input Power Capacity | KVA | 25.3 |
| No-load Voltage | V | 67 |
| Rated Output Voltage | V | 40 |
| Output Current Range | A | 20-500 |
| Duty Cycle (25ºc) | % | 60 |
| Efficiency | % | 85 |
| Power Factor (cosø) | 0.93 | |
| Insulation Class | F | |
| Protection Class | IP21S | |
| Arc Force | A | 20-150 |
| Diameter of Rod | mm | 1.6 – 6 |
| Weight (G.W / N.W) | kg | 27 / 24.6 |
| Dimension (L x W x H) (CTN) | mm | 615 x 390 x 575 |
| Accessories | 1. Power cable 3M. 2. Front Panel with KDZ50 socket. 3. Allen key 8mm @ 1pc |
