Description

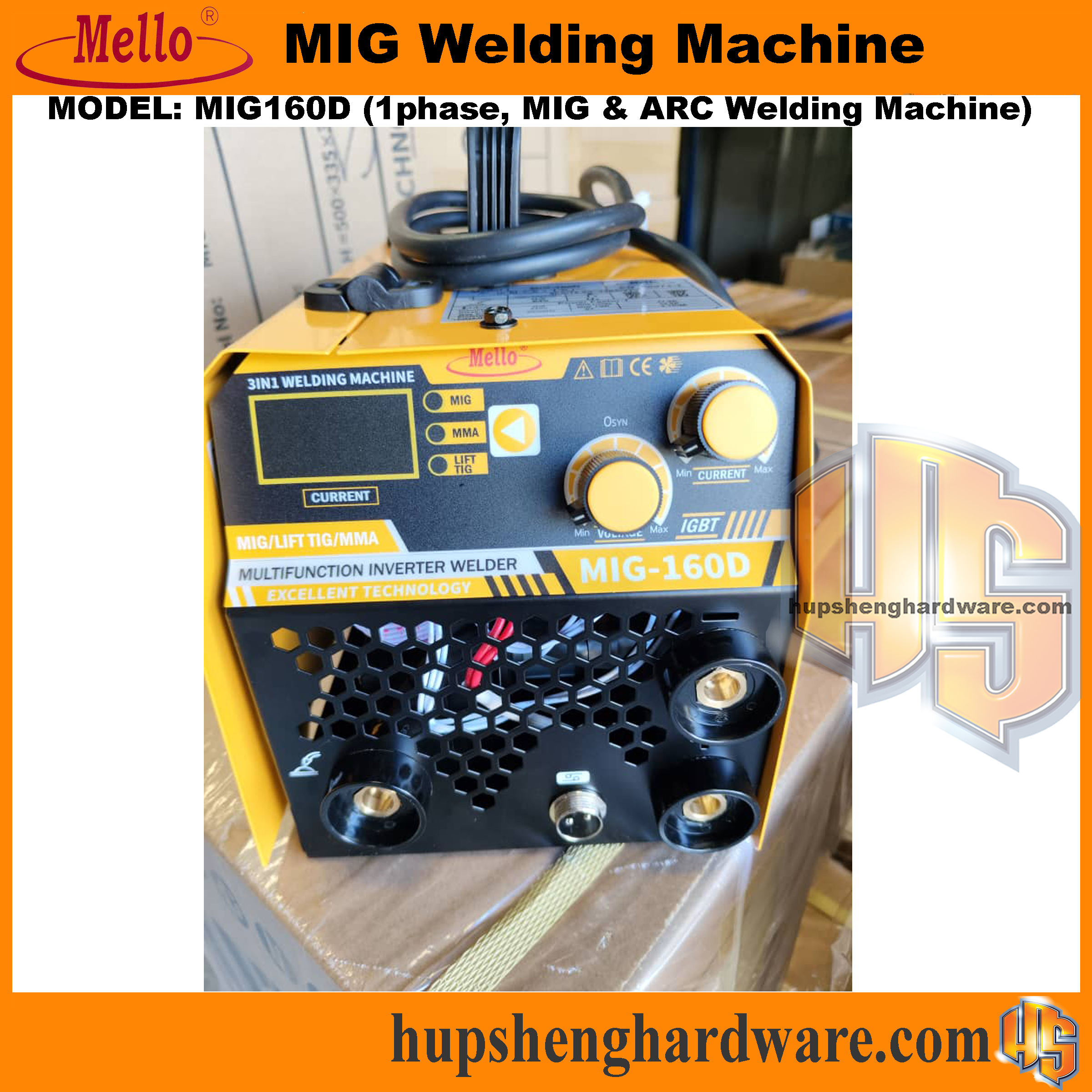

Model: MIG160D
Mello GIG160D is an IGBT 2in1 Welding machine: Fluxcore MIG & ARC Welding. It has synergic control means the interaction of elements and parameters to form a single control.
Specifications
| Input Power Voltage / Freq. | 240V, 50Hz |
| Rate Input Power Capacity | 5.5 kVA |
| No Load Voltage | 64V |
| Output Current Range | 30 – 130Amp |
| Output Voltage Range | 15-22V |
| Duty Cycle | 60% |
| Efficiency | 85% |
| Feeding Speed | 2-15 m/min |
| Type of Wire Feeder | Inside |
| Diameter of Spool | 100mm |
| Insulation | Class F |
| Protection Class | IP21S |
| Post Flow Time | N/A |
| Welding Thickness | 0.8mm |
| Diameter of Wire | 0.8 mm |
| Dimensions (L x W x H) | 315mm x 154mm x 233mm |
| Weight | 5.7kg |
Accessories Included
- MB15 Integrated MIG Torch 2M
- 300A Earth Clamp with cable
