Description

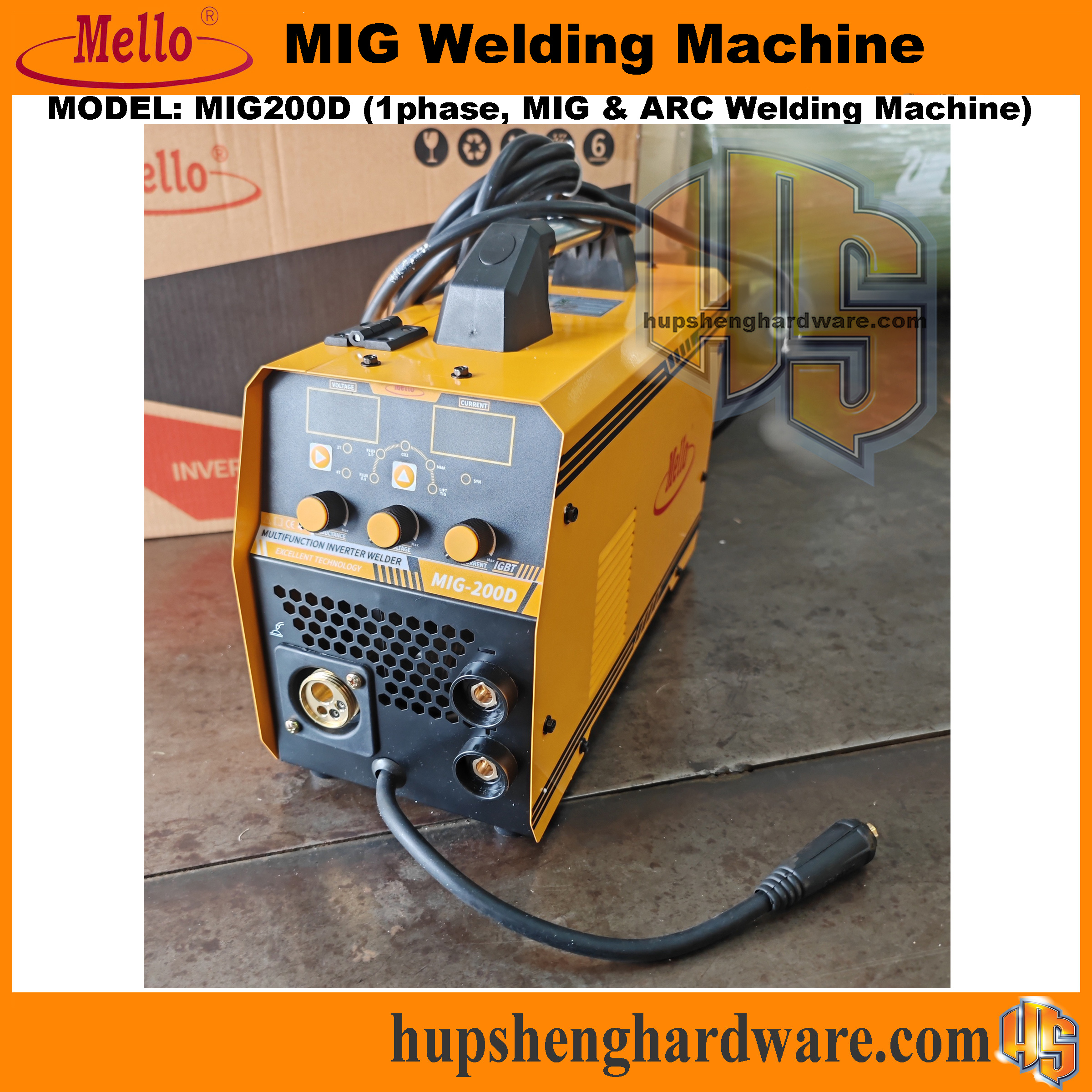

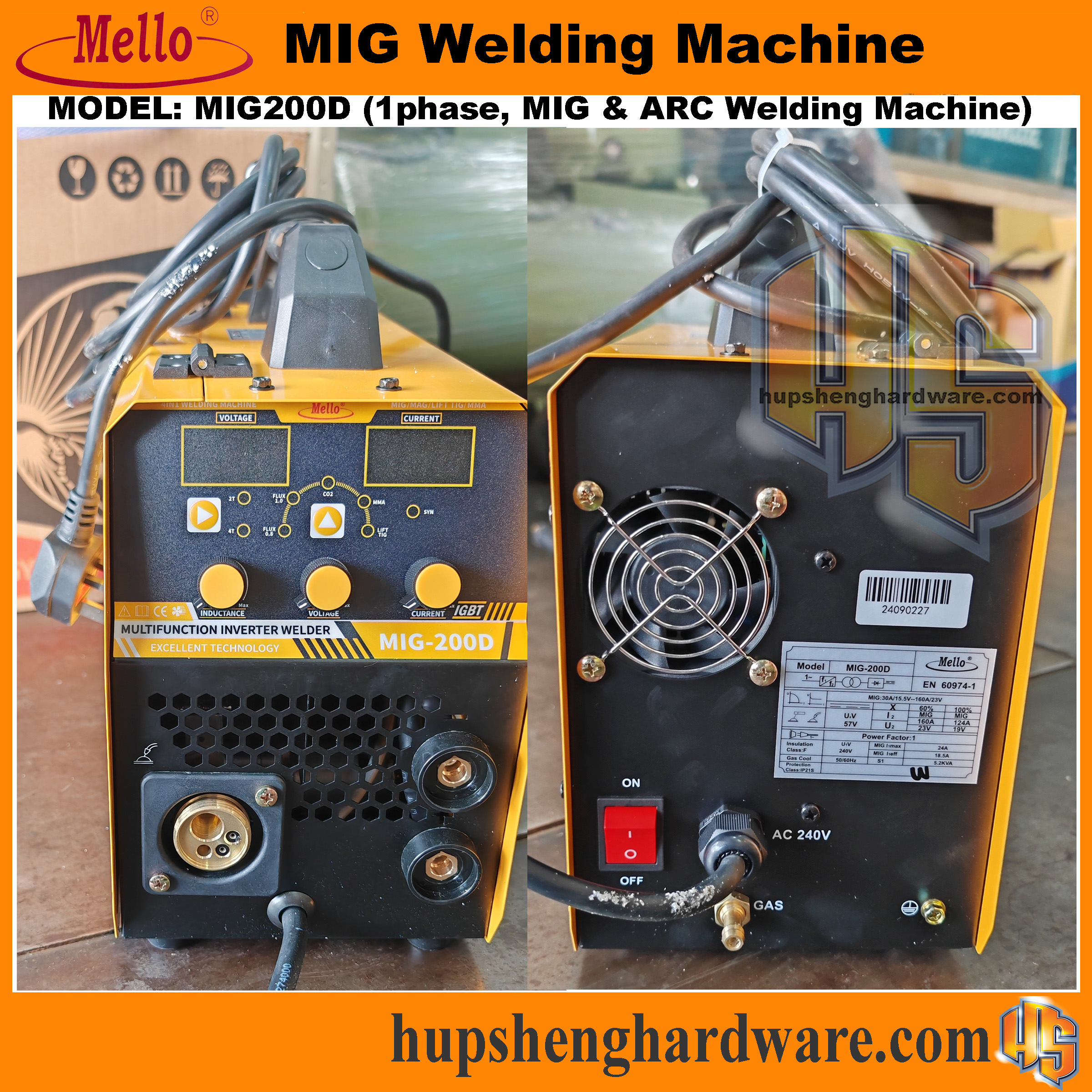

Model: Mello MIG200D
Mello MIG200S IGBT MIG ARC welding machine with current range 30-160 Amp.

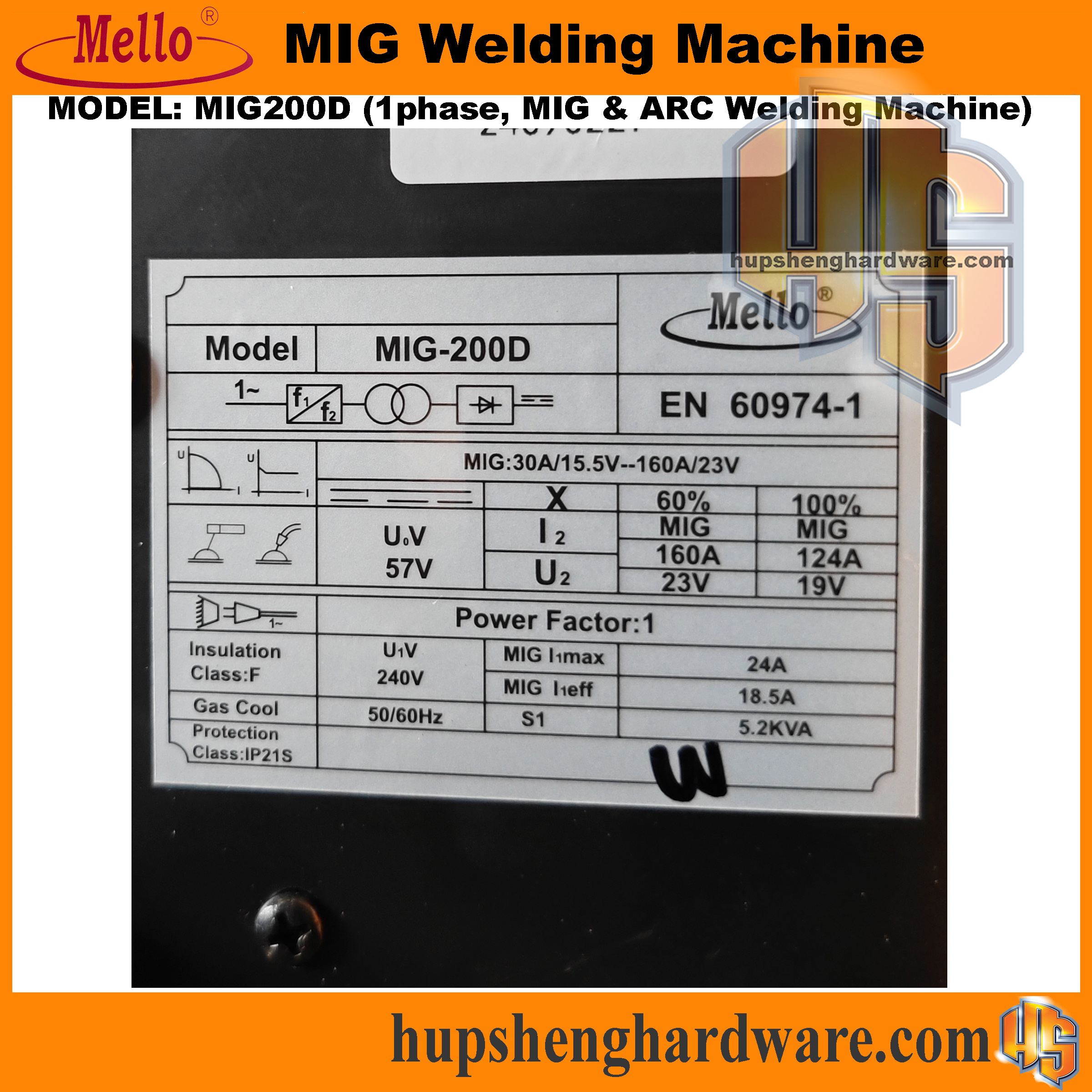

Specifications
| Input Power Voltage / Freq. | V/Hz | AC240 50/60 |
| Rate Input Power Capacity | KVA | 7.5 |
| No-Load Voltage | V | 64 |
| Output Current Range | A | 30-160 |
| Output Voltage Range | V | 19-23 |
| Duty Cycle (25°C) | % | 60 |
| Efficiency | % | 85 |
| Feeding Speed | M/MIN | 2-15 |
| Type of Wire Feeder | Inside | |
| Diameter of Spool | mm | 200 |
| Insulation Class | F | |
| Weight | KG | 7 |
| Dimension | mm | 425 x 310 x 183 |
| Protection Class | IP21S | |
| Post Flow Time | S | 1±0.5 |
| Welding Thickness | mm | Above 0.8 |
| Diameter Of Wire | mm | 0.8/1.0 |

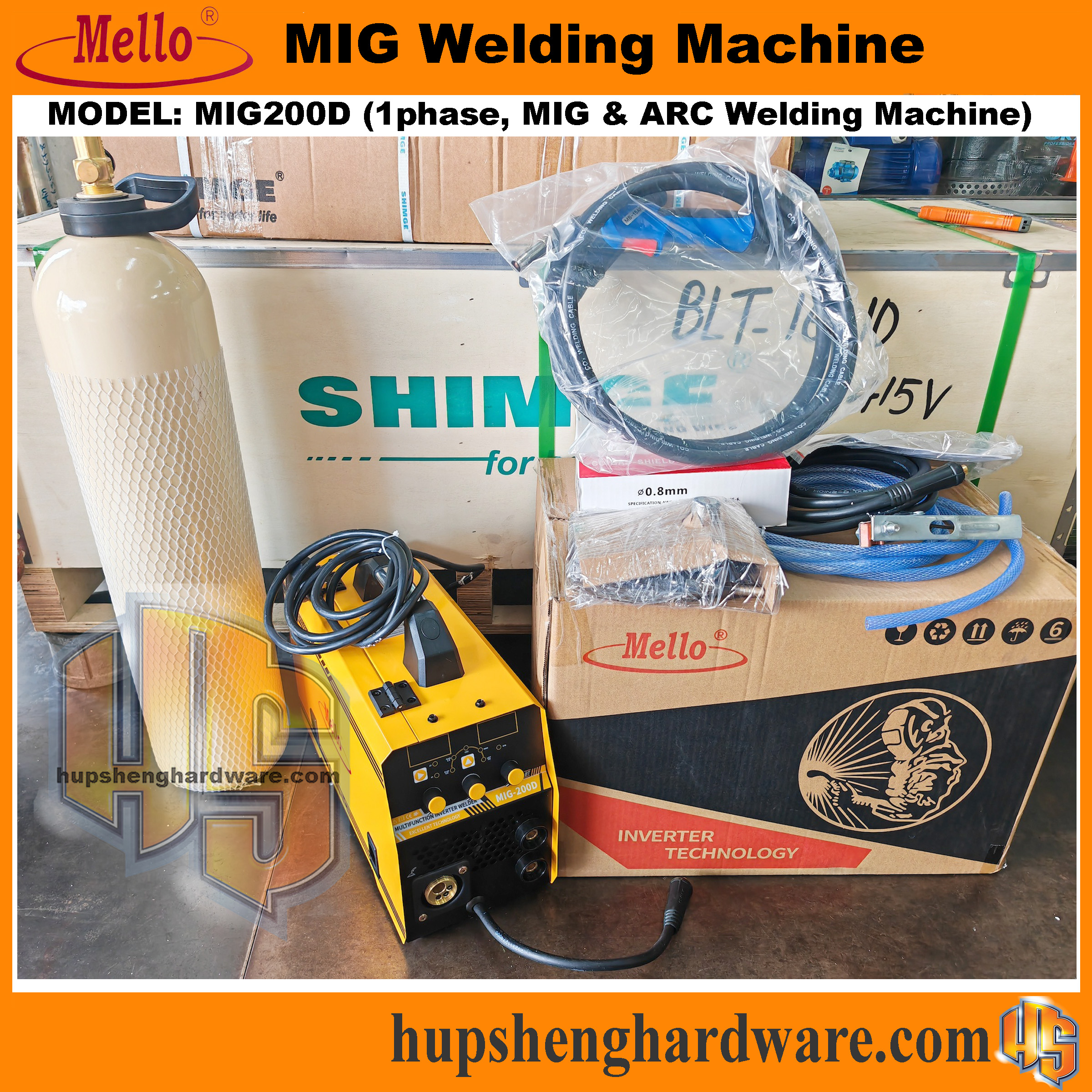

Accessories Included
- Power Cable 3M with 13A 3 pin plug
- Front Panel with KDP50 socket
- Earth clamp with cable
- CO2 Regulator
- Gas hose & 2pcs hose clip
- CO2 Gas
- 0.8mm x 1kg Welding Wire
