Description

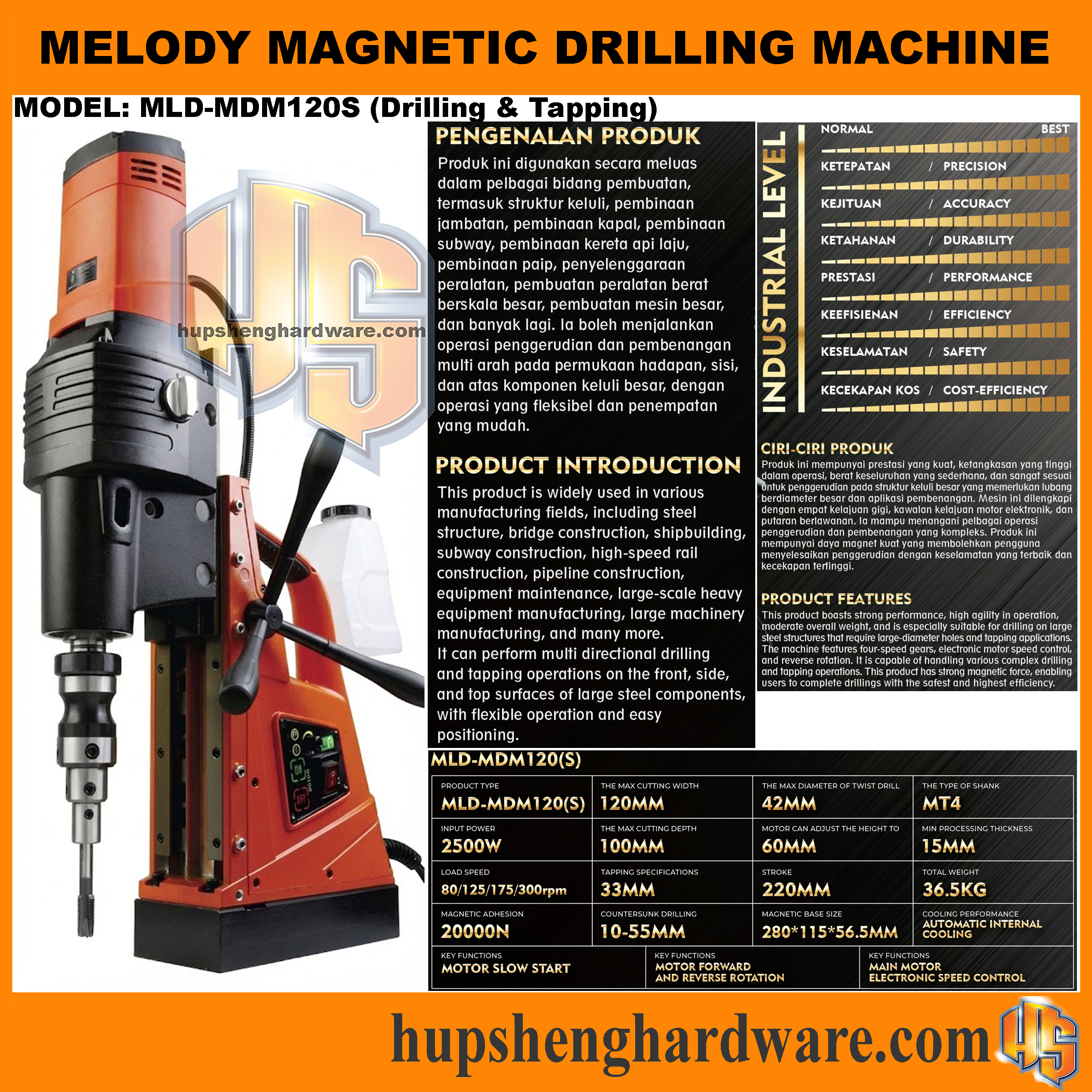

Model: Melody MLD-MDM120S
Melody MLD-MDM120S is a magnetic drilling and tapping machine. Featured with double sided slide rail, 2500w input power armature and magnetic adhesion of 20000N.
Accessories Included
- PVC container for coolant
- Hanging belt
- Arbor with Morse Taper
- Pilot pin 6mm
- Pilot pin 8mm
Features
- Reversible
- Motor’s air vent with slope protection design which can effectively prevents liquid or dust entering the motor.
- Double sided slide rail which can adjust the the motor’s height according to different situations.
- Automatic internal lubricate matter circulation function : to ensures gearwheels to have longer lifespan.
- Integrated slope-body design to ensure it overall stiffness and its drilling precision.
- Magnetic base bottom has a wear resistance design, it prolongs the base bottom from wearing off.
Specifications
| Input Power | 2500W, 240V, 50Hz |
| Load Speed | 80/125/175/300 rpm |
| Magnetic Adhesion | 20000N |
| Maximum Drilling Size with TCT Broach Cutter | 12~120mm |
| Maximum Drilling Size with Twist Drill Bit | 3~42mm |
| Maximum Cutting Depth | 100mm |
| Maximum Tapping Capacity | 33mm |
| Stroke | 220mm |
| Adjustable Height for Motor | 60mm |
| Countersunk Drilling | 10~55mm |
| Shank Type | MT 4 |
| Minimum Cutting Depth | 5mm |
| Total Weight | 36.5kg |
| Cooling System for Motor | Automatic Internal Cooling |
