MEUDY KBZ622 Submersible Drainage Pump, 22kW, Maximum Flow 4000L/min, Maximum Head 53mH, 3phase, 4″, 297kg

Description

Model: Meudy KBZ622

Meudy KBZ622 is a submersible drainage water pump with rigid cast iron body. Greatly increased max. submersion depth due to m.seal resistant to high pressure 0.5Mpa.

• 3phase

Features

• The body of motor and pump is made of rigid cast iron for long lasting durability.
• Greatly increase maximum submersion depth due to mechanical seal resistant to high pressure.
• Semi-open impeller made of high chrome alloy match with wear plate (ductile iron) achieves superior durability.
• Effective motor cooling due to discharge channel cast as part of the motor housing.
• Hermetically sealed motor equipped build-in thermal protection for the power below 15kW.

Applications

• Civil engineering
• Mines
• Quarries
• Coal ore
• Slurries
• Sewage treatment plants

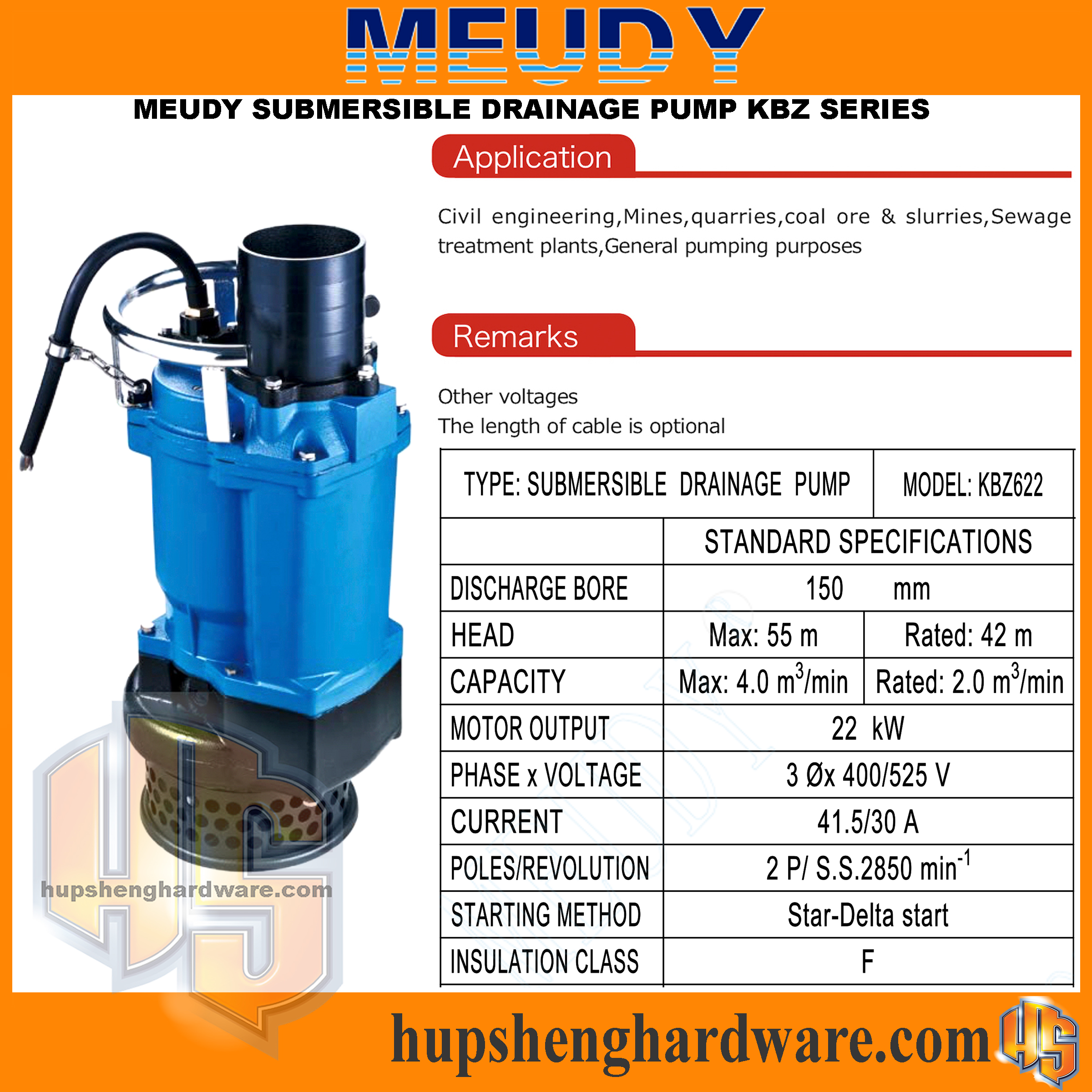

Specifications

Accessories Included

• 8m Power cable
