Description
Model: MGZ-F100A (Made in Japan)

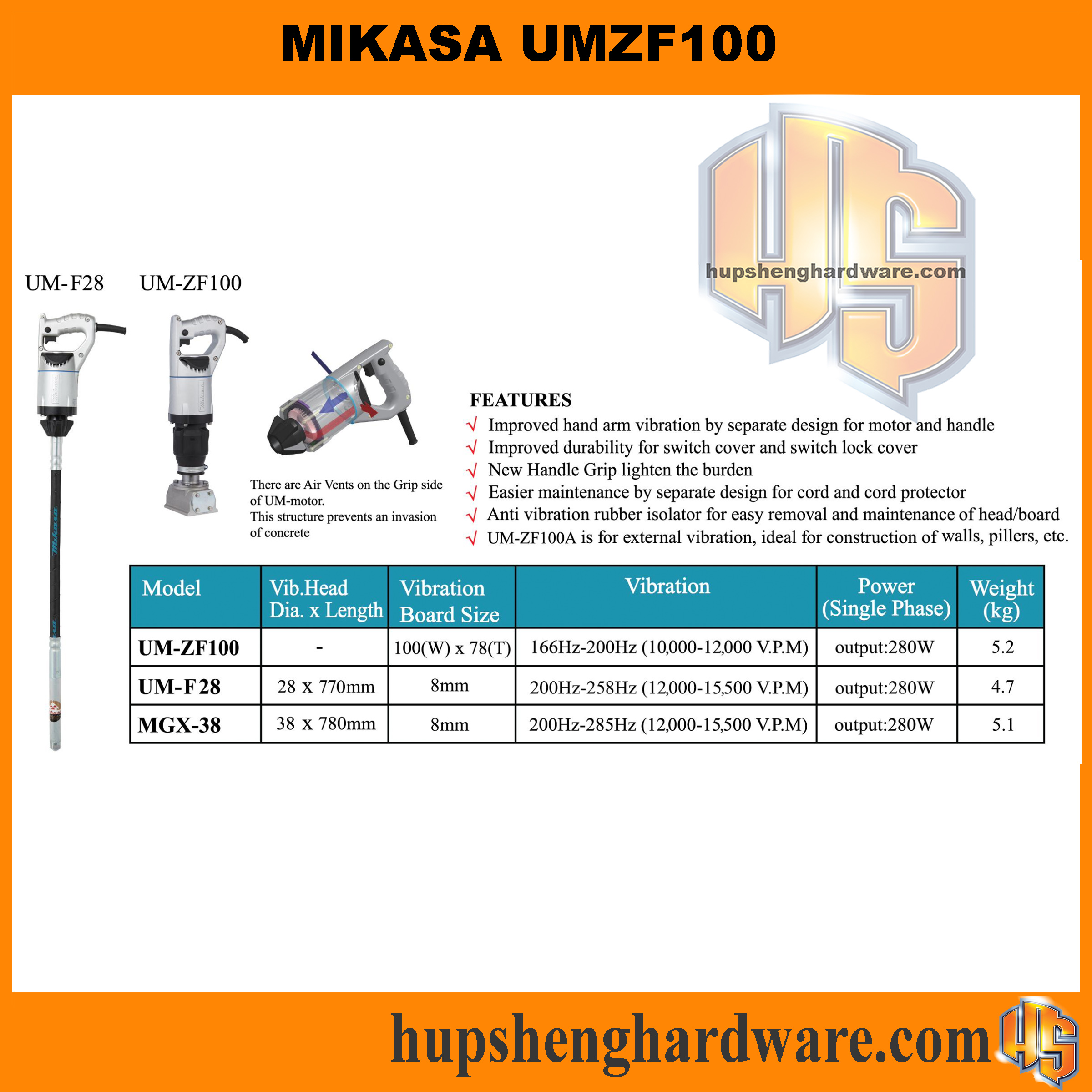

Mikasa MGZ-F100A is an external concrete vibrator.
Features
- Weight reduction and improvement of wear resistance were achieved by the use of aluminium die cast for the motor case.
- Double insulation motor that does not require grounding is used for excellent safety.
- Handle part is a split type, and the anti-vibration rubber on the surface where your hand will touch serves to reduce fatigue.
- Wear resistant cover is placed on the switch lever and stopper areas to prevent entry of concrete and water.
- Most suited for casting of stone masonry, side ditch, building foundation and concrete products.
Features of MGZ motor
- MGZ motor sucks in air from behind, cooloing inside by letting the air flow through a special oath before the air is released backward.
- Because there is no ventilation opening on the front cover where mortar tends to splash, entry of mortar can be prevented.
Specifications
| Vibration Board Size | 78mm x 100mm |
| Vibration | 166Hz~200Hz (10000V.P.M~12000V.P.M) |
| Power | 280 watts |
| Voltage | 220 Volts |
| Dimensions (L x H) | 395mm x 78mm |
| Weight | 5 kg |
