Description
MODEL: Pentax MDT100
Pentax MDT100 is a volumetric pump with liquid ring impeller that gives considerable suction power to the pump. Particularly suitable for liquid transfer (including volatile liquids). The model has a brass front cover thus avoiding the risk of blockage.
- Brass impeller
- WITHOUT Cable
SPECIFICATIONS
| Size Discharge |
1″ x 1″ |
| Power |
0.74 W / 415V |

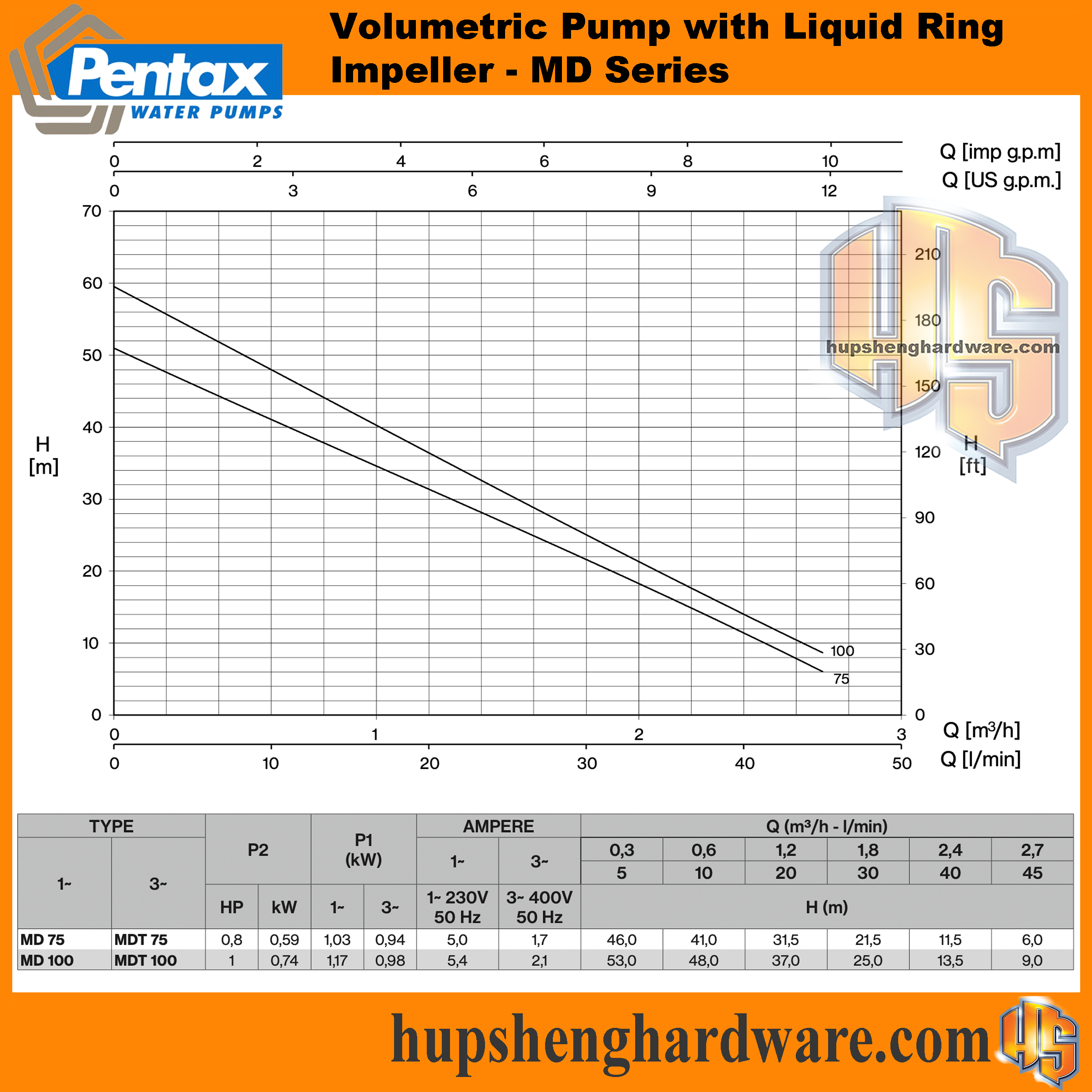

| Flow Rate |
5 ~ 45 L/min |
| Head |
53 ~ 9 meters |
| Manometric Suction Lift |
Max. 4 meters |

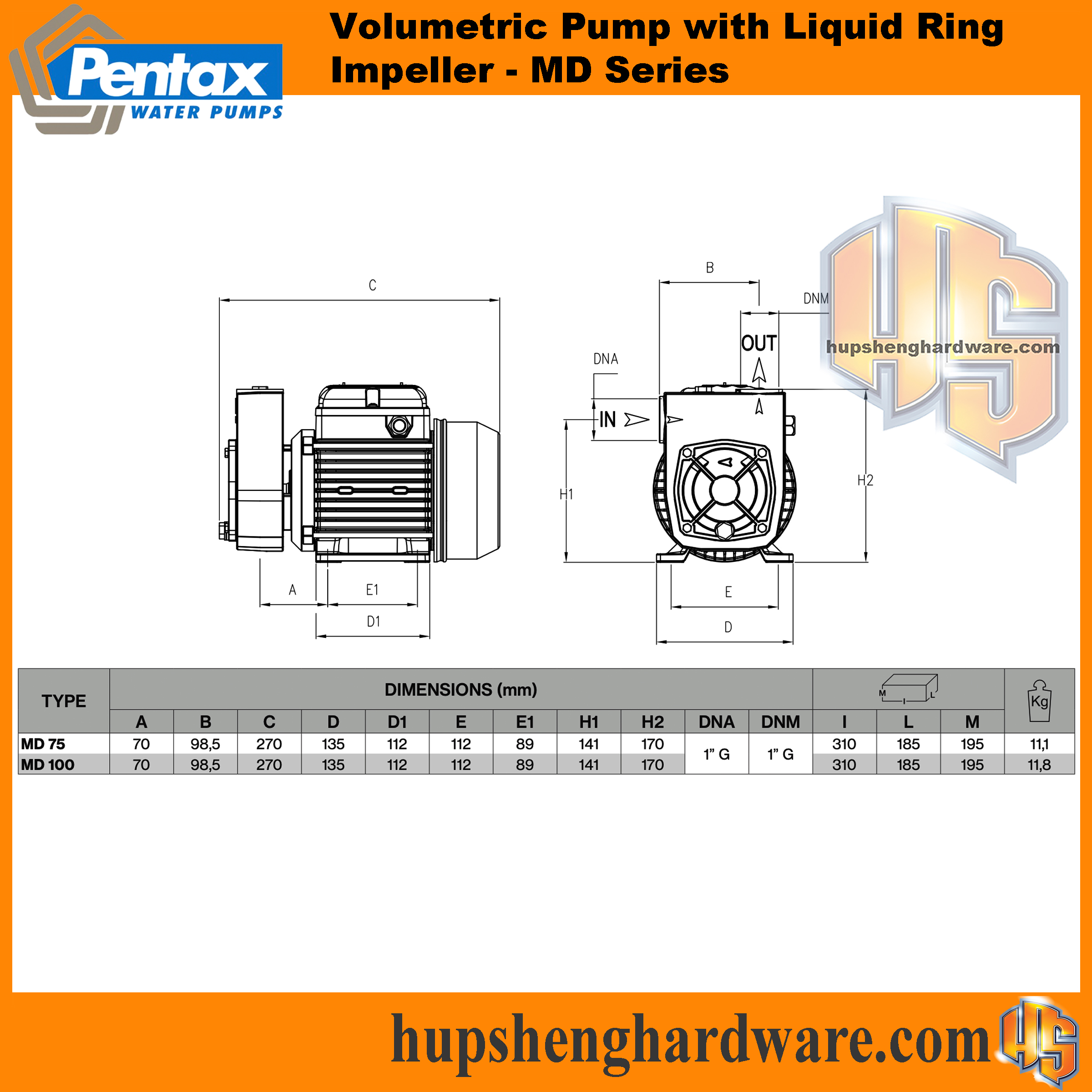

| Dimensions (L x W x H) |
270 x 135 x 170mm |
| Weight |
11.8kg |
CONSTRUCTION FEATURES
| Pump body |
cast iron and brass |
| Motor bracket |
cast iron |
| Impeller |
brass |
| Seal |
ceramic-graphite-NBR |
| Pump shaft end |
steel AISI 416 |
| Ambient temperature |
0 – 90 °C |
| Pump body gasket |
max 8 bar |
MOTOR
| 2 poles induction motor |
3~ 230/400V-50Hz
1~ 230V-50Hz |
| Insulation class |
F |
| Protection degree |
IPX4 |
