Description

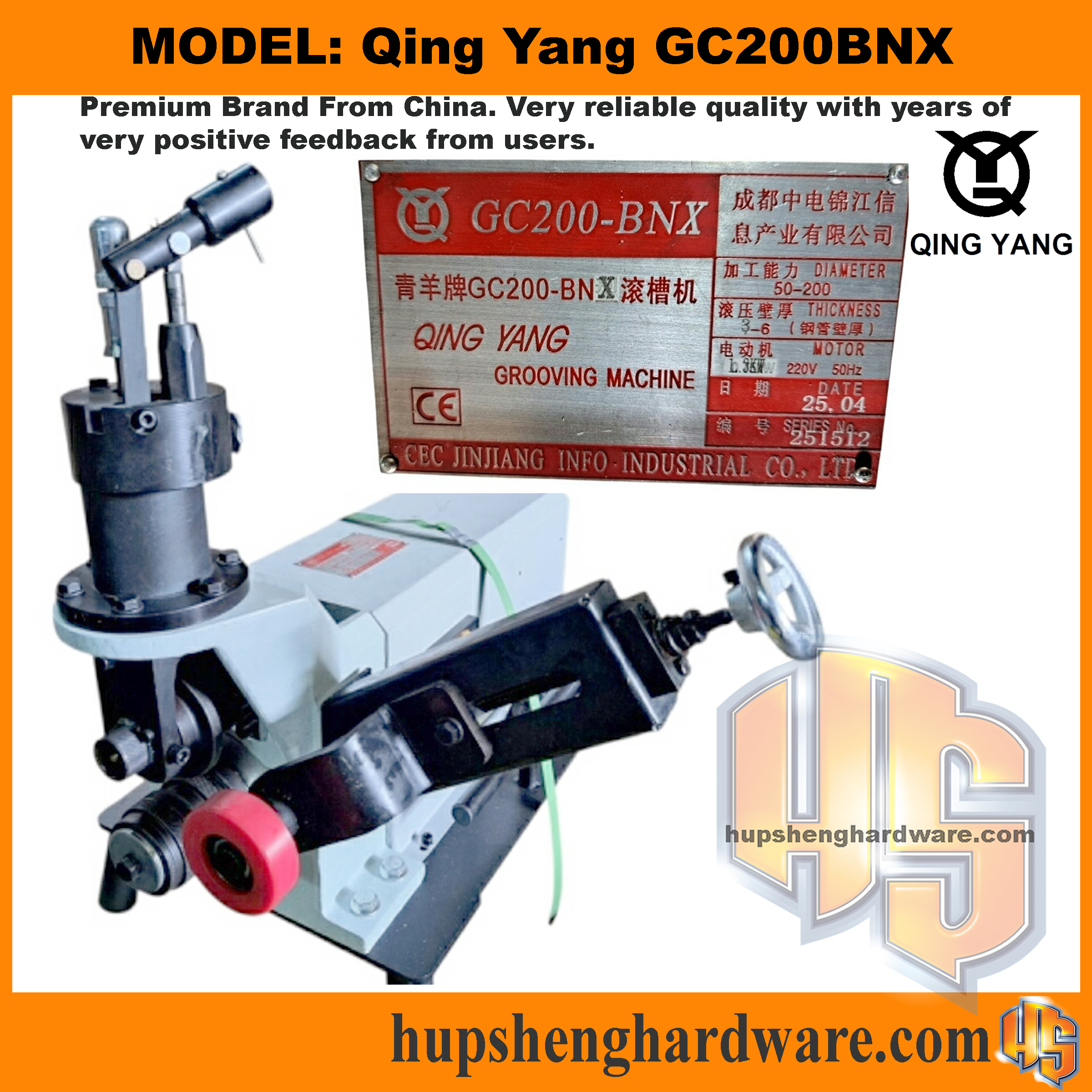

Model: Qing Yang GC200BNX
Qing Yang GC200BNX is a reliable portable GI pipe grooving machine. It is applicable for GI pipe & Stainless steel pipe
Applications
- Use for rolling annular groove at the end of the steel pipe to install ring clasps for pipe connection.
- Suitable for GI pipe & Stainless steel pipe
Features
- Light in weight.
- Hydraulic drive.
- Good performance-price ration.
- Easy and reliable operation.
- Upper pinch roller is adjustable relative to lower knurl roller.

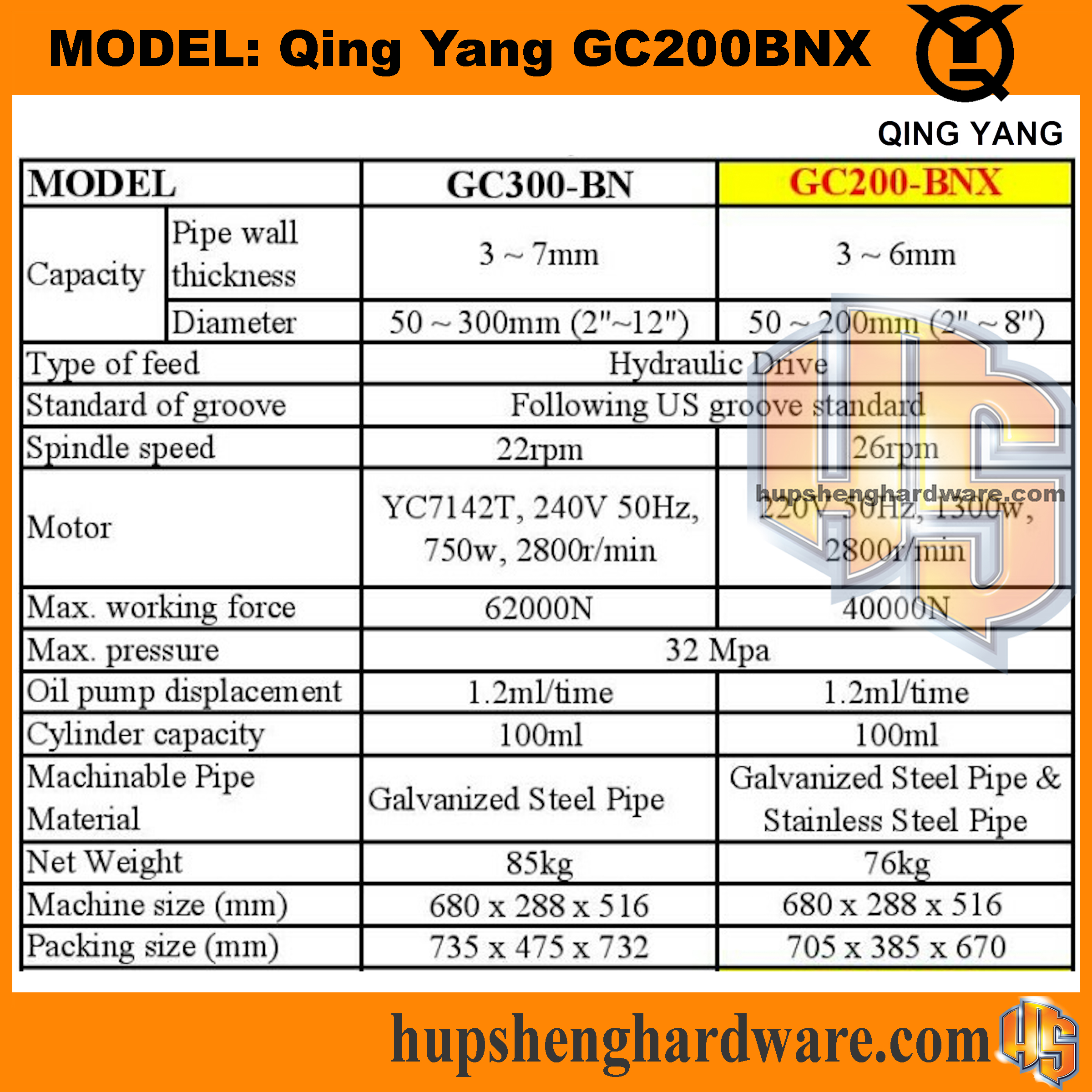

Specifications
| Capacity Pipe Wall Thickness | 3~6mm |
| Capacity Pipe Diameter | 50~200mm |
| Type of Feed | Hydraulic Drive |
| Standard of Groove | Following US groove standard |
| Spindle Speed | 26rpm |
| Motor | YC7142T(Short shaft), 220V, 50Hz, 1300W, 2800rpm |
| Max. Working Force | 4000N |
| Max.Pressure | 32MPa |
| Oil Pump Displacement | 1.2ml/time |
| Cylinder Capacity | 100ml |
| Weight | 76kg |
| Machine Size | 680mm x 288mm x 516mm |
| Packing Size | 705mm x 385mm x 670mm |

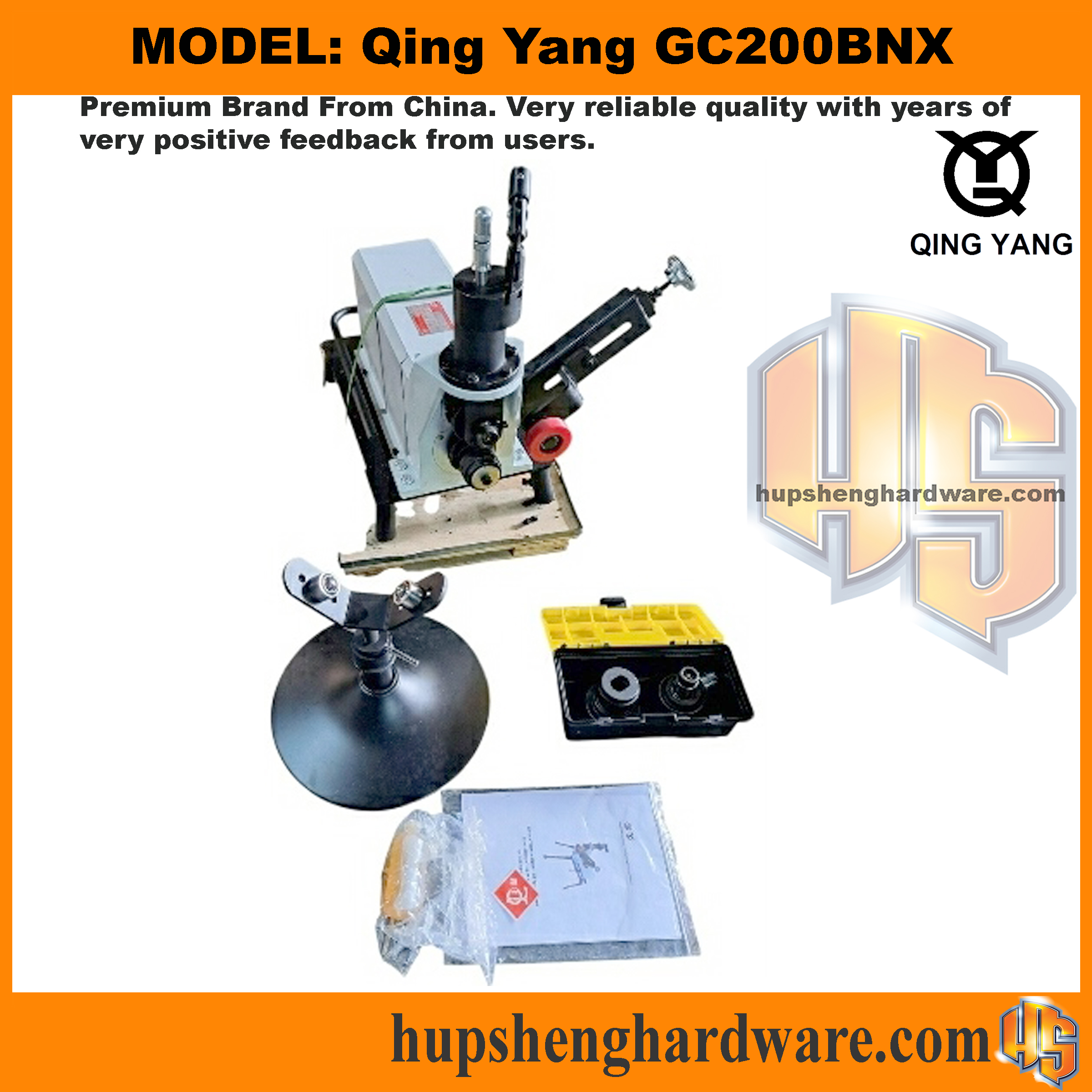

Accessories Included
- Roller Stand
- Stabilizer
