Description
Model: AP97A
SAER AP97A high flow open impeller self priming water pump.
- 1 phase
- Made in Italy
Descriptions
- The open impeller design allows water with a solid content to pass easily, whether sandy, muddy or particle laden.
- The air of the suction piping is sucked inside the pump body by the depression created by the rotating impeller, therefore it emulsifies with the liquid contained into the pump body.
- The emulsion air-liquid is pushed into the delivery channel where the air, which is lighter, gets separated and gets out from the delivery piping. The liquid which is heavier, returns into circulation.
- Once the pump gets rid of all the air from the suction piping, the pump starts and it works as a normal centrifugal pump. Therefore, the pump can work also with a mixture of air-liquid.
- Non-return valve fitted to the discharge side which enables a small quantity of liquid to be retained in the pump body thus allowing an automatic prime and suction lift to any applications.
Applications
- Water supply from river, streams, dirty water distribution, agricultural applications, building sites, dirty water disposal.
Application Limit
- Temperature of the liquid to +70 °C
- Ambient Temperature +40 °C
- Manometric suction lift up to 8 m (HS)
- Max. working pressure 6 bar
Installations
- Upon installation always prime the pump body first before start up. Pump must be installed with the motor shaft in the horizontal position.
Specifications
| Size Discharge | 2″ x 2″ |
| Power | 1100 W / Single Phase |

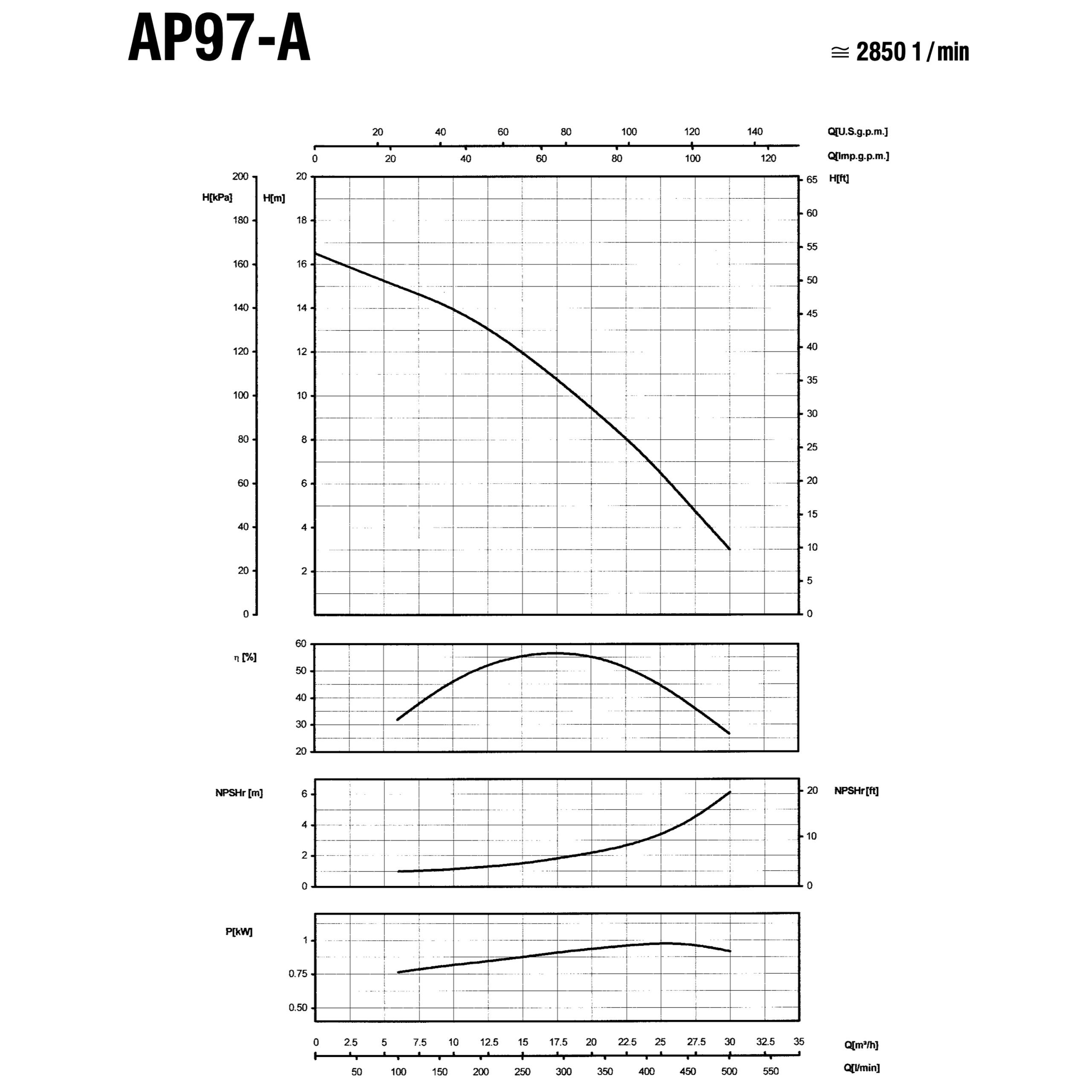

| Flow Rate | 100 ~ 500 L/min |
| Head | 15 ~ 4.6 meters |
| Manometric Suction Lift | Max. 8 meters |
| Liquid Temperature | Max. +70°C |
| Environment Temperature | Max. +40°C |

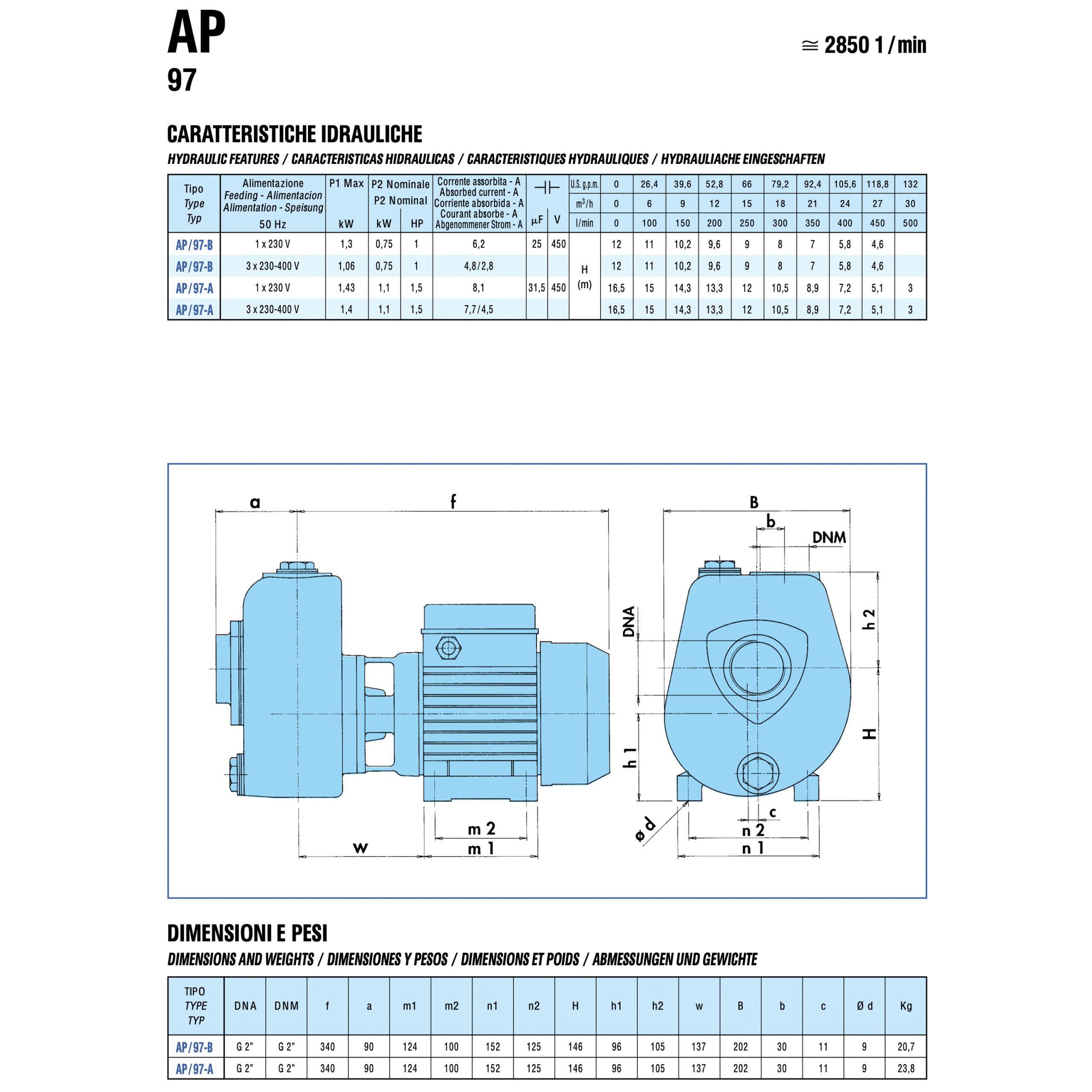

| Dimensions (L x W x H) | 430mm x 152mm x 250mm |
| Weight | 23.8 kg |
Accessories Included
- Without cable
- Carton box
