Description
Model: Tokuden T150

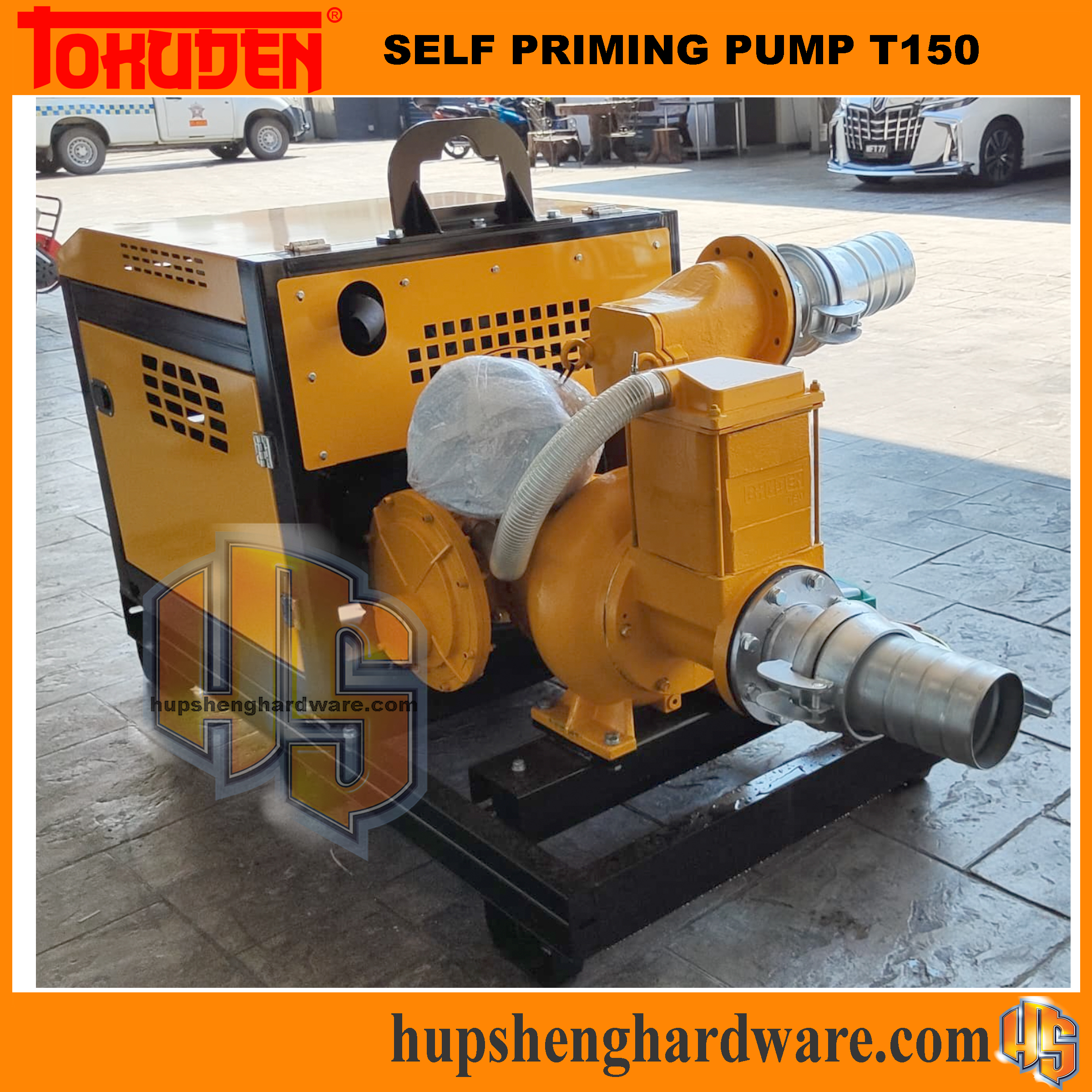

Tokuden T150 is a 6 inch self priming sludge pump specially designed to handle clean or dirty water containing limited solids, and mostly use extensively on construction sites for dewatering. T150 is automatic priming and re-priming, is by flood lubricating rotary sliding vane vacuum pump.
Features
- High capacity water pump, used for WellPoint dewatering and sump pumping.
- Hard wearing cast iron parts.
- Automatic priming.
- High airflows vacuum system specially designed for dewatering works.
- Hours of unattended operation or intermittent flow.
- Lifting Hook.
- Key start Engine.
- Available option four wheel site trailer.

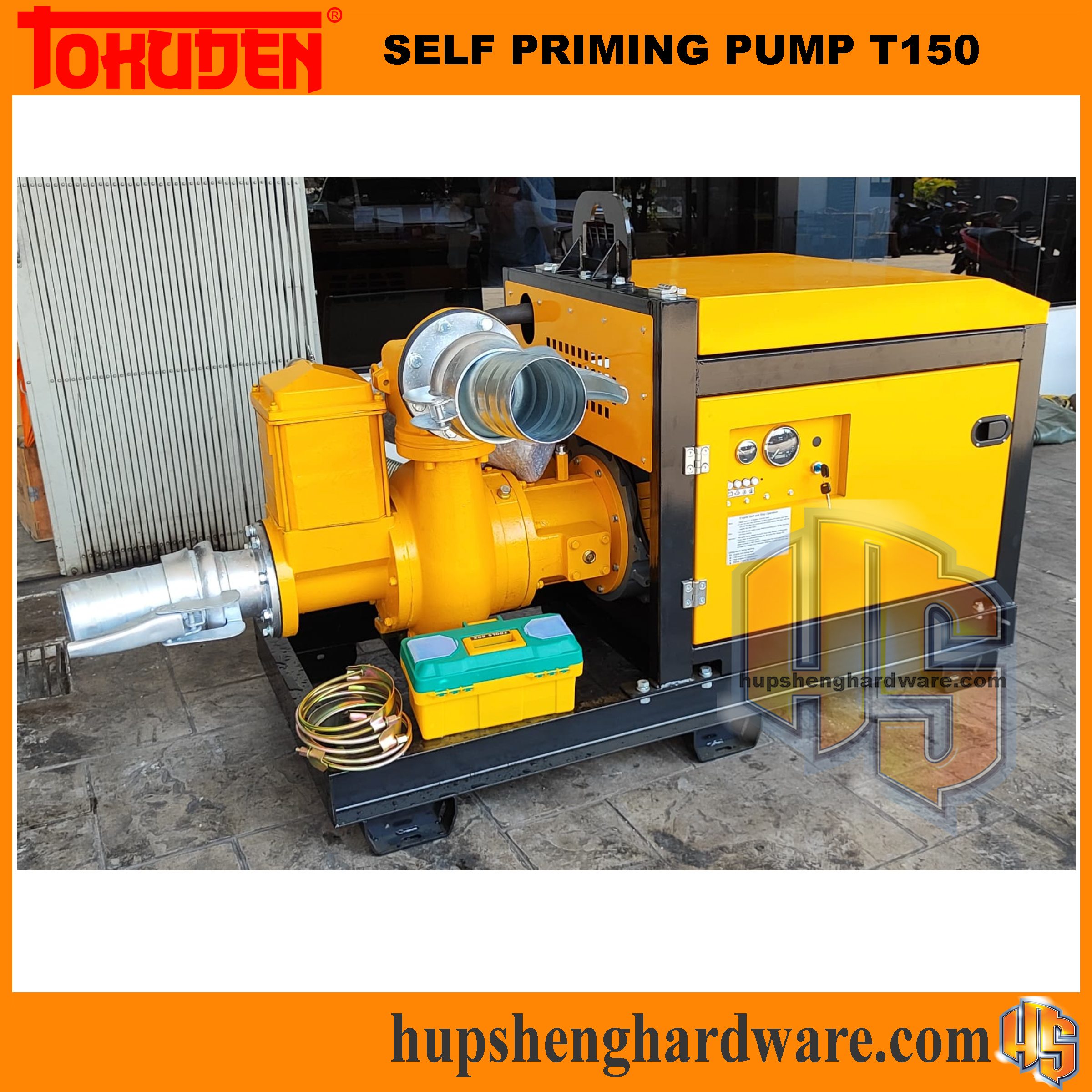

Accessories Included
- 6” Suction Strainer X 1
- Hose Clips x 2
- Tool Box X 1

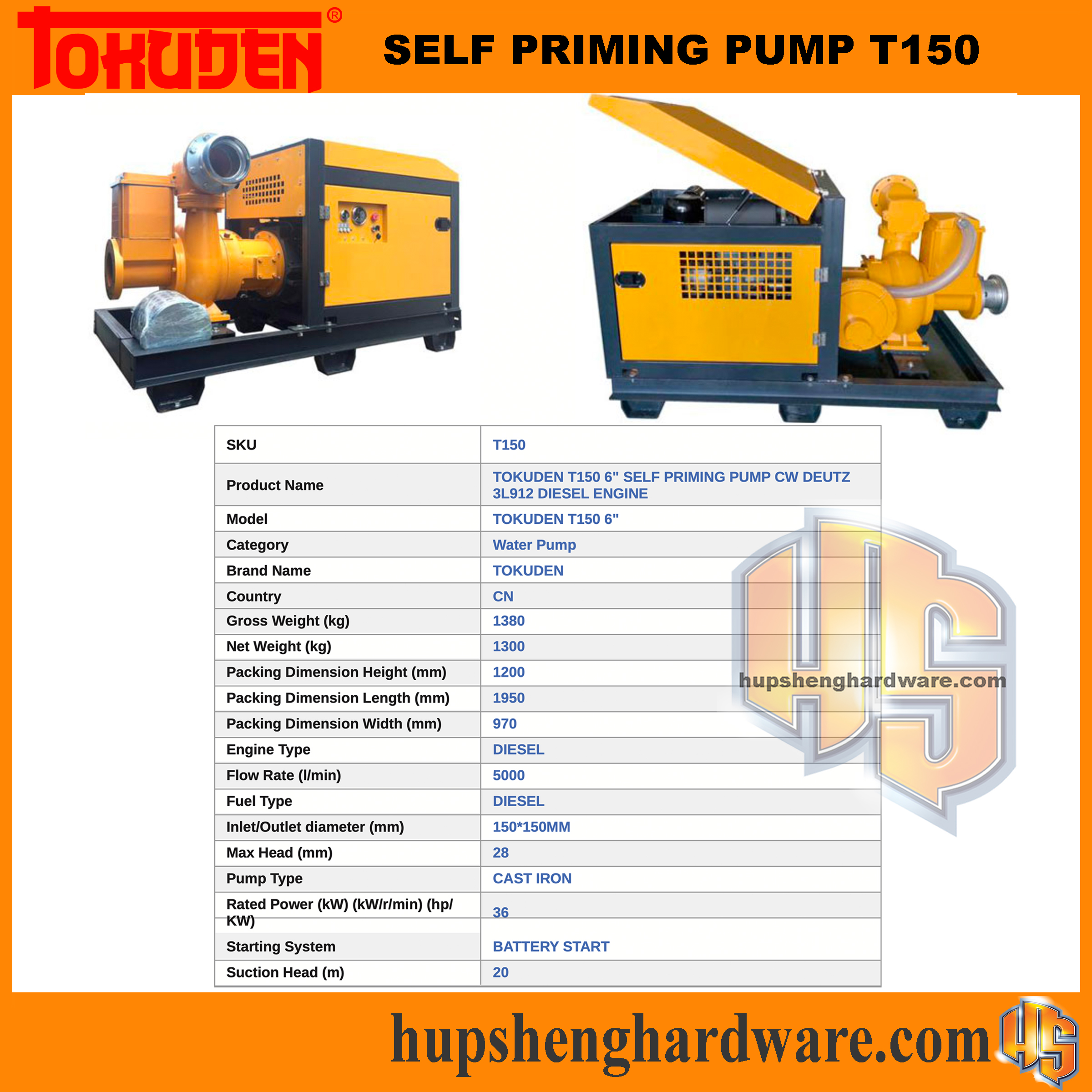

Specifications
| Model | T-150 |
| Type | Self-priming Centrifugal |
| Suction x Delivery Diameter (inch) | 6” x 6” |
| Total Head (m) | 28m |
| Max. Flow | 5000L/min |
| Axle Seal Material | Mechanical Seal (Ceramic-carbon) |
| Suction m(ft) | 20 |
| Engine | DEUTZ 3L912 |
| Engine Type | Air-cooled Diesel |
| Max. Output (hp/rpm) | 32HP / 1500RPM |
| Starting System | Electric Start |
| Weight (kg) | 1380kg |
| Dimensions (LxWxH) (mm) | 1950 x 970 x 1200mm |
