Description
Model: Bosch GCM305-216S Slide Miter Saw

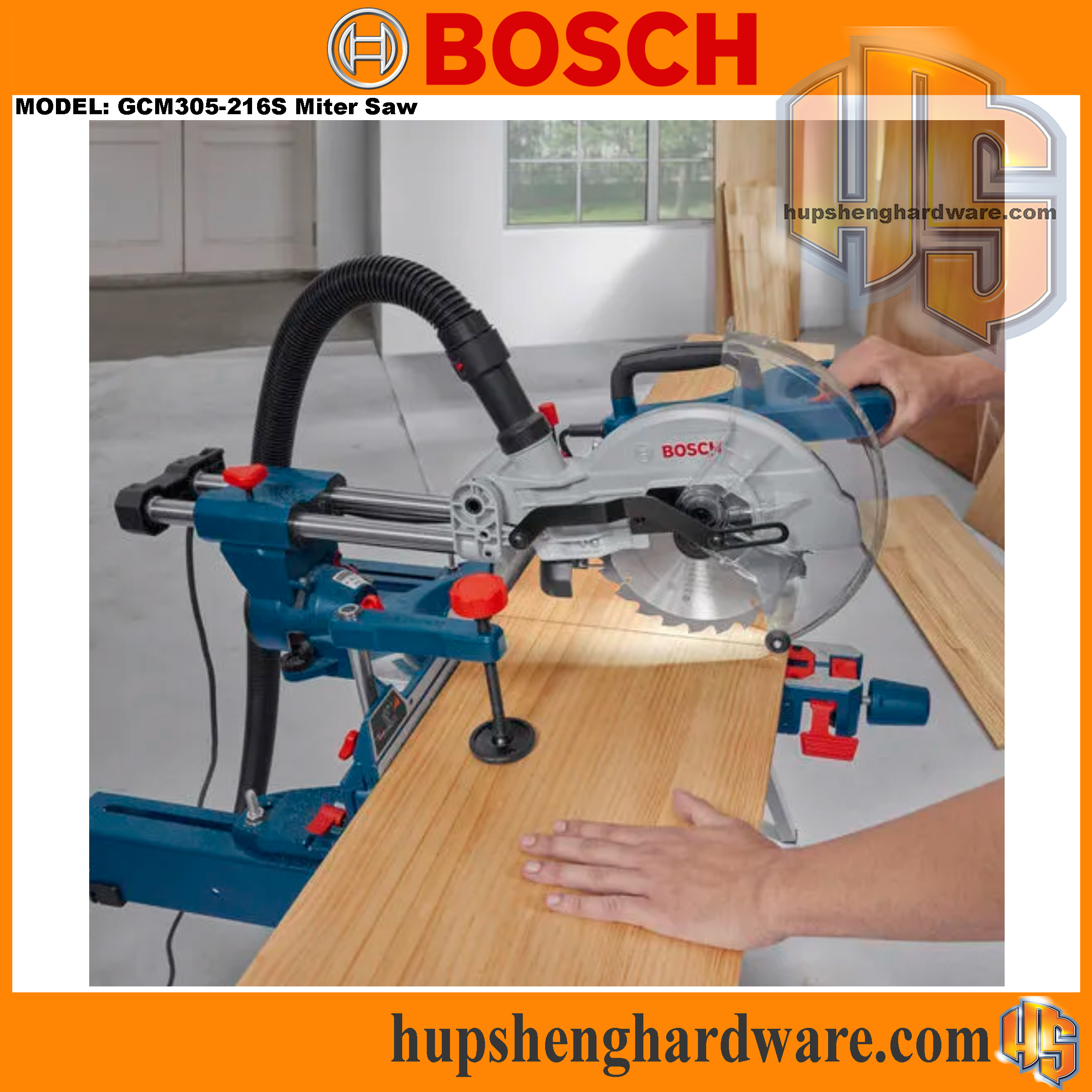

Bosch GCM305-216S corded mitre saw is great for crosscuts through wood and aluminium, combining bevel and mitre angle cuts.
- Parts Number: 0601B610L0
Accessories Included
-
1 x vacuum adapterOrder number: 1 619 PC5 054
-
Mounting clampOrder number: 1 619 PC5 274
-
1 x clamping wrenchOrder number: 1 619 PC5 116
-
Dust bagOrder number: 1 619 PB6 246
-
Measuring rulerOrder number: 1 619 PB9 141
Features
- Long-lasting cutting accuracy: with the integrated LED light system which indicates the cutting line for the user and requires no manual adjustments
- Keep your workflow efficient: the front-access bevel control lets you change angles quickly and easily
- Professional performance in your hands: the motor delivers sufficient cutting power for the toughest cuts
- Work effortlessly with large pieces of wood: thanks to the detachable workpiece(optional) supporting extended table lengths

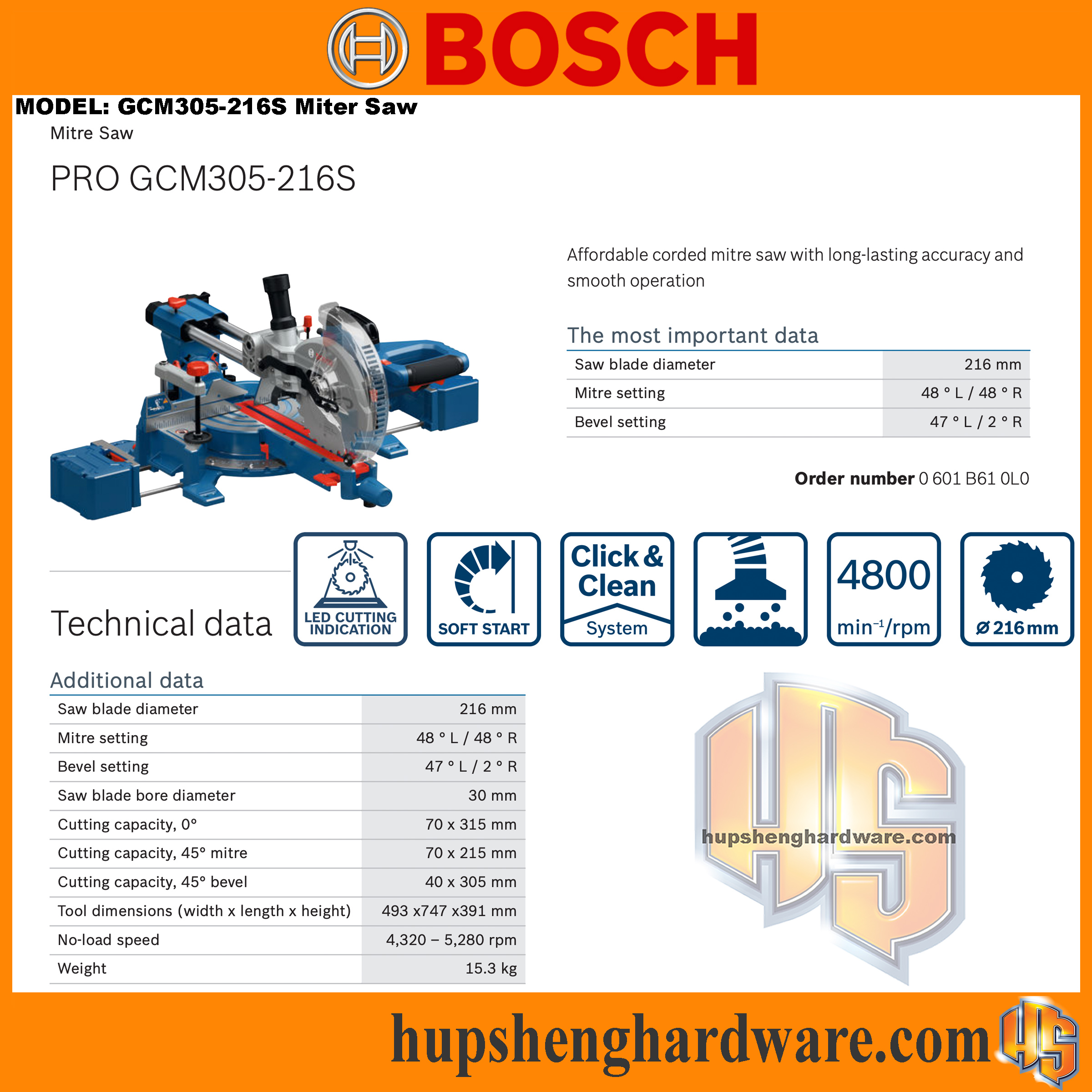

Specifications
| Saw blade diameter | 216 mm |
| Mitre setting | 48 ° L / 48 ° R |
| Bevel setting | 47 ° L / 2 ° R |
| Rated input power | 1,300 W |
| Cutting capacity, 0° | 70 x 315 mm |
| Cutting capacity, 45° mitre | 70 x 215 mm |
| Cutting capacity, 45° bevel | 40 x 305 mm |
| No-load speed | 4320~5280 rpm |
| Weight | 19.5 kg |

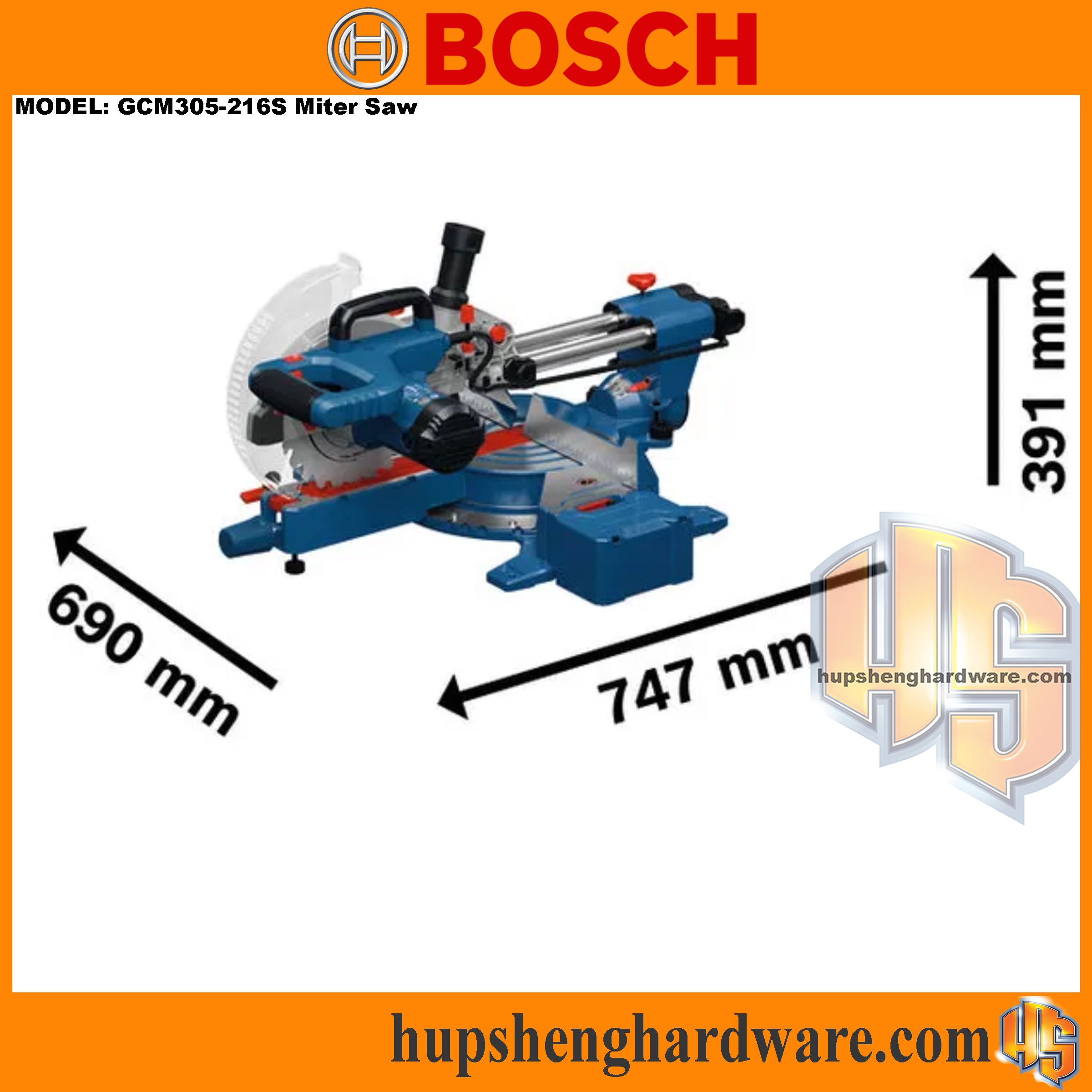

| Tool dimensions (width x length x height) | 493 x747 x391 mm |
