Description
Model: Bosch GCM340-350D
Bosch GCM340-350D miter saw is for crosscuts through wood and aluminium and can handle both bevel and miter angle cuts. It is the ideal tool for cabinet installers and carpenters, joiners, window and door installers, framers, roofers and more.
- 0 601 B60 0L0
Accessories Included
-
Supporting blockOrder number: 1 619 PC5 276
-
1 x vacuum adapterOrder number: 1 619 PC5 054
-
Blade for 0B0/0K0/0L0/0F0/080Order number: 2 608 846 526
-
Mounting clampOrder number: 1 619 PC5 274
-
1 x clamping wrenchOrder number: 1 619 PC5 116
-
Dust bagOrder number: 1 619 PB6 246
-
Measuring rulerOrder number: 1 619 PB9 141

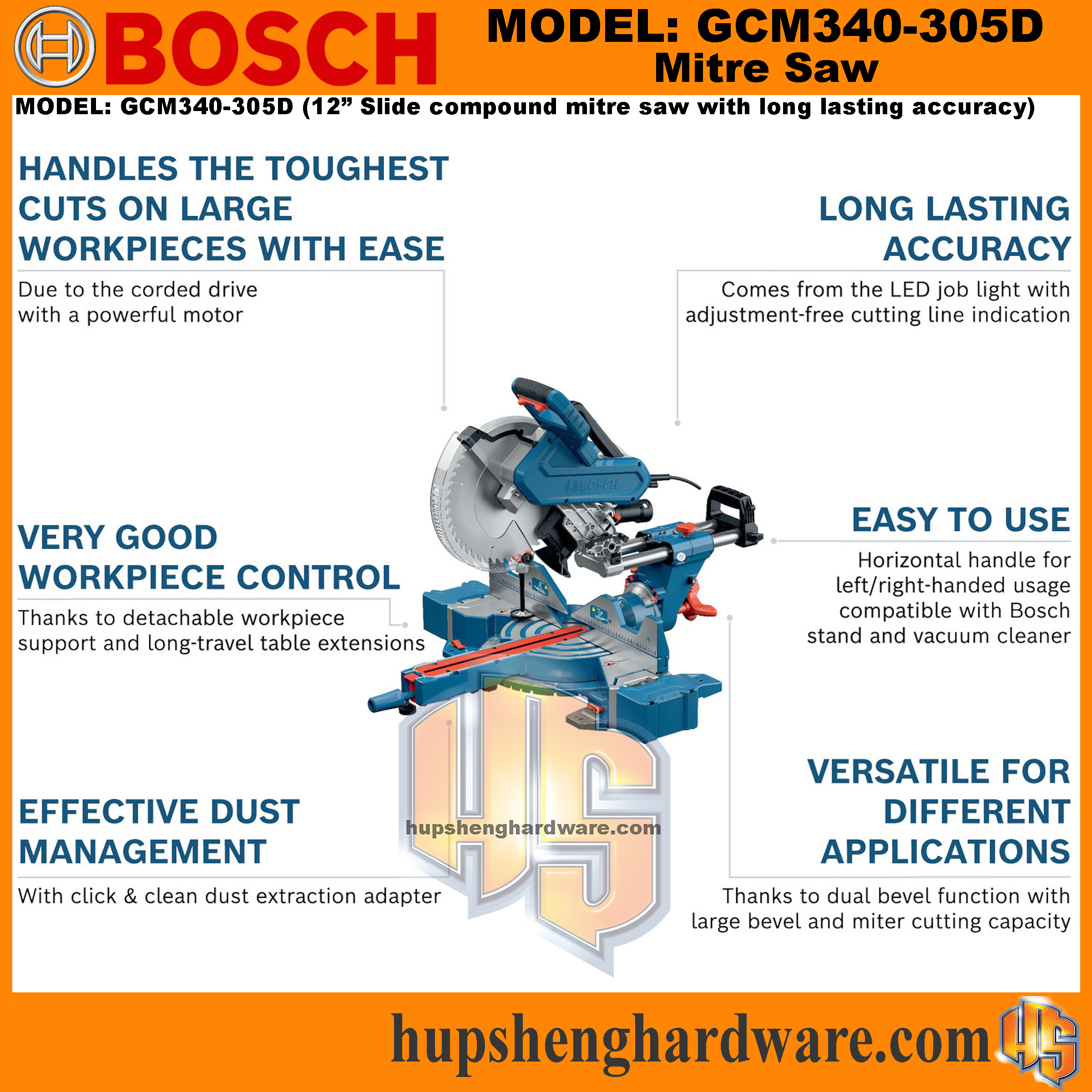

Features

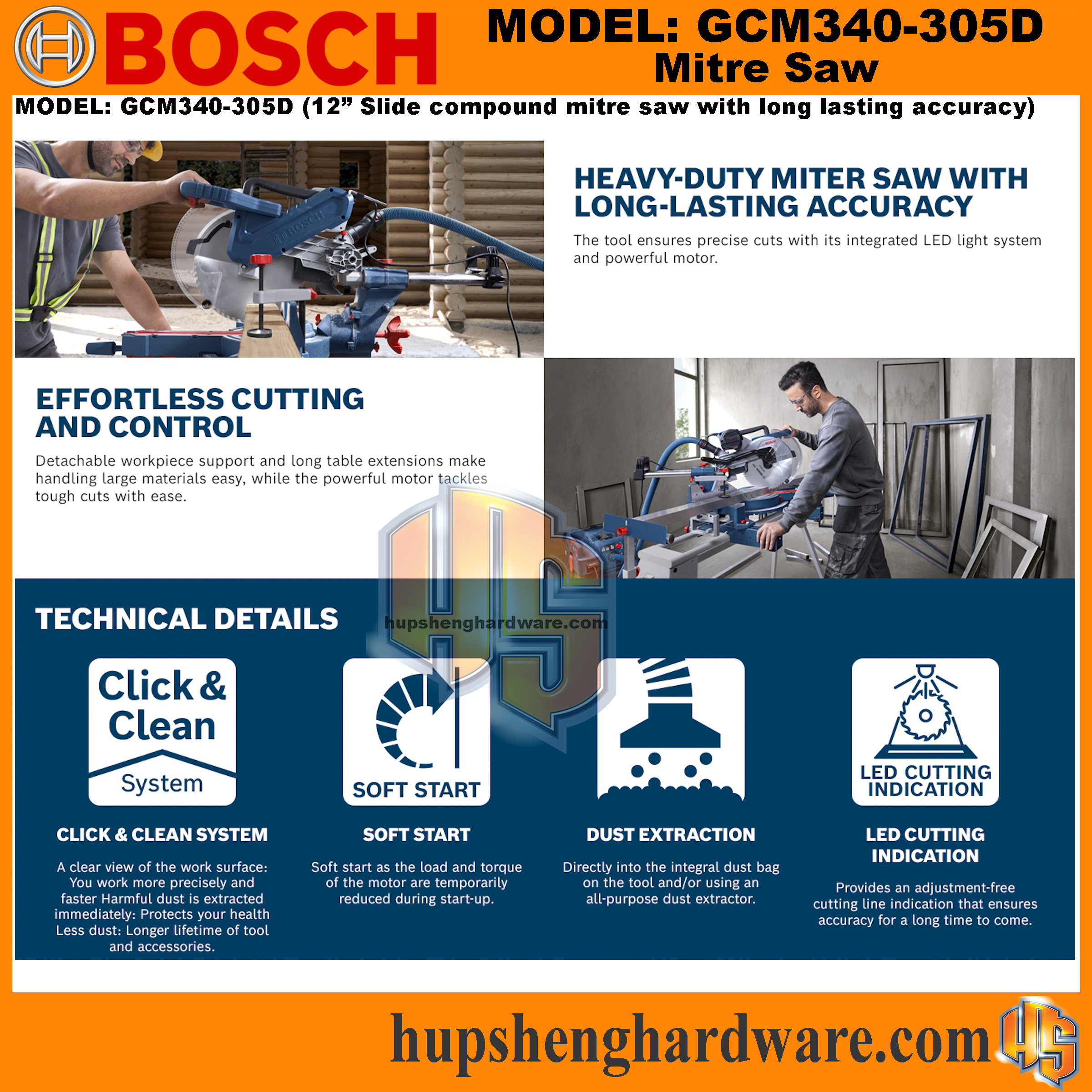

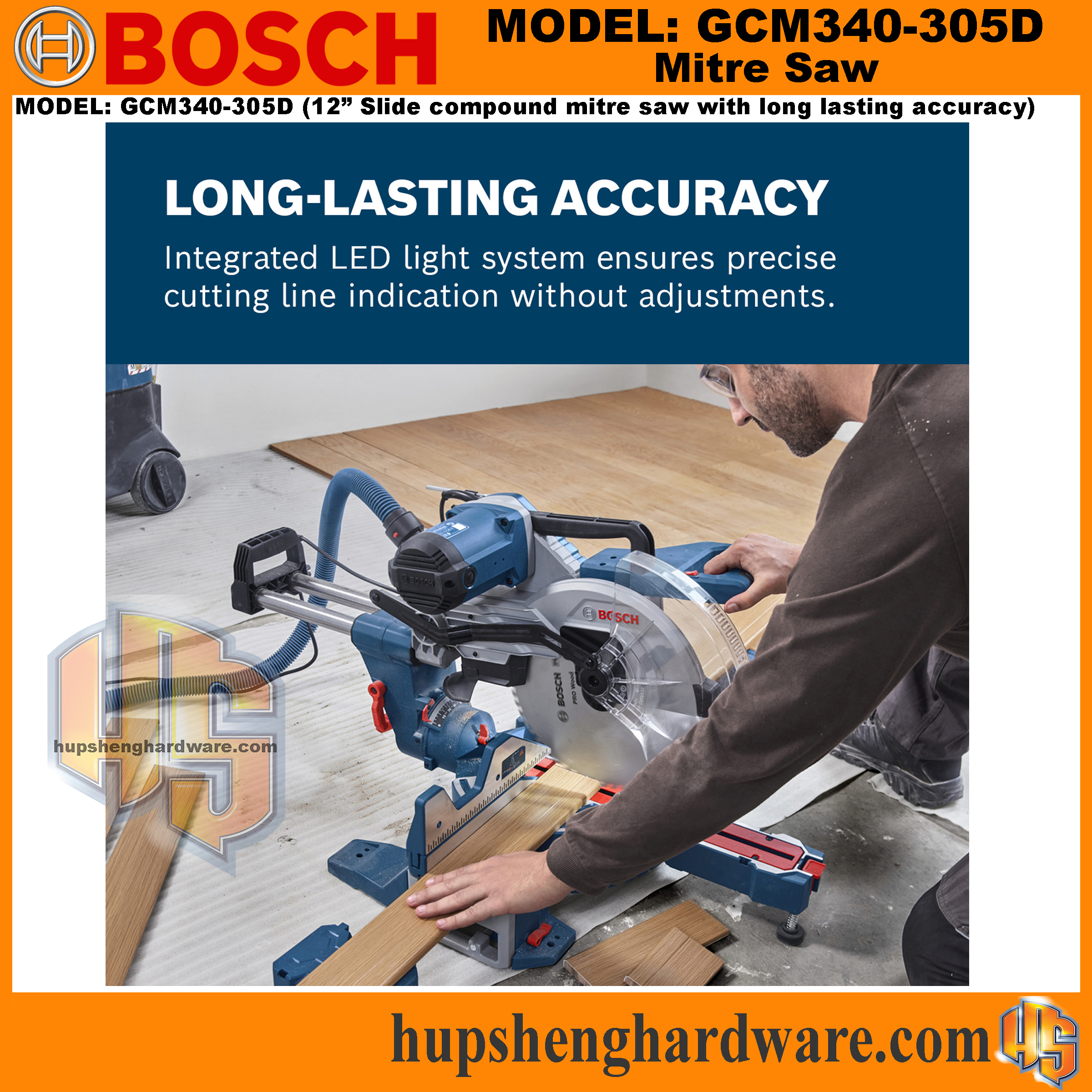

- Long-term accuracy thanks to integrated LED light system with reliable cutting-line indication.

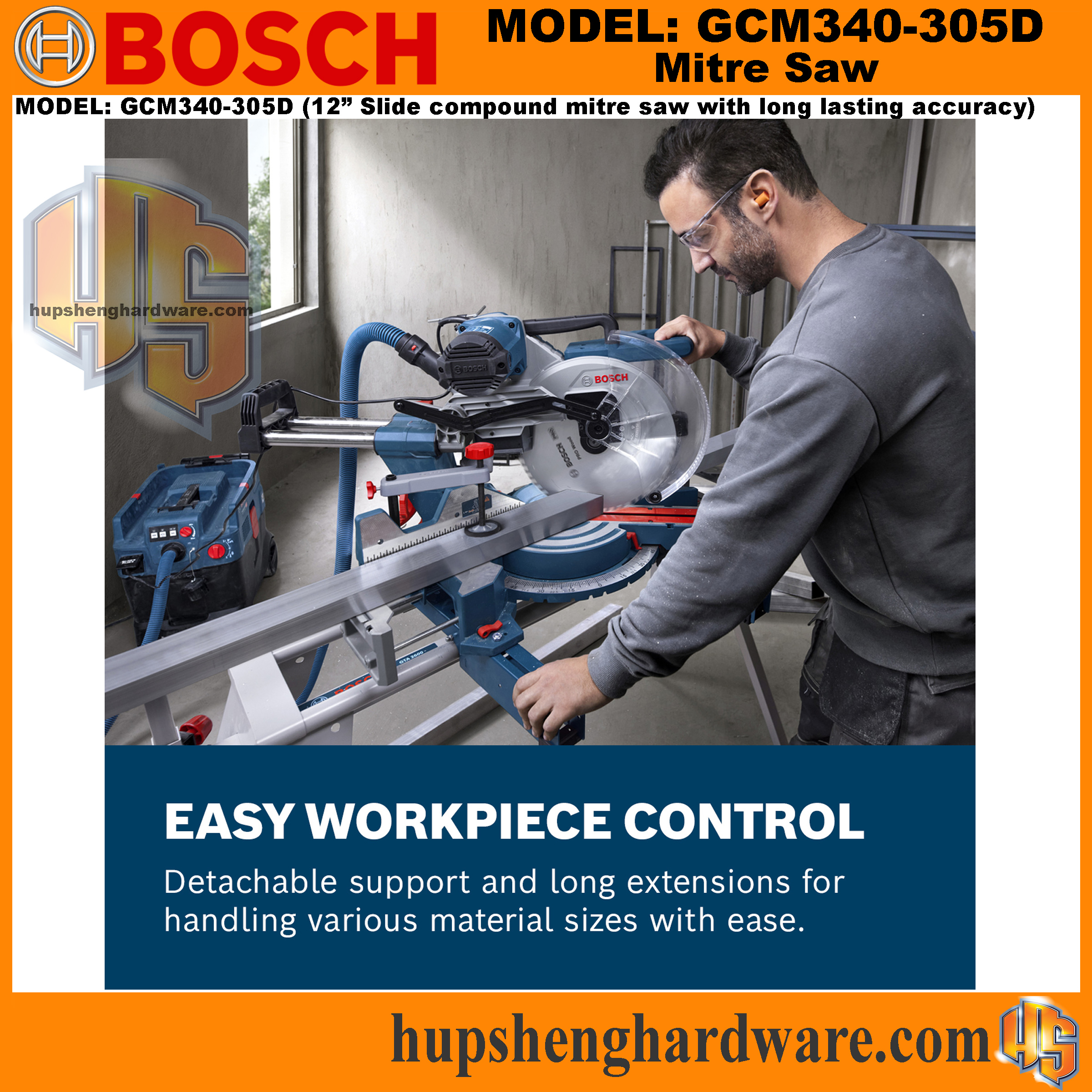

- Easy workpiece control for different material sizes due to detachable workpiece support and long extensions.

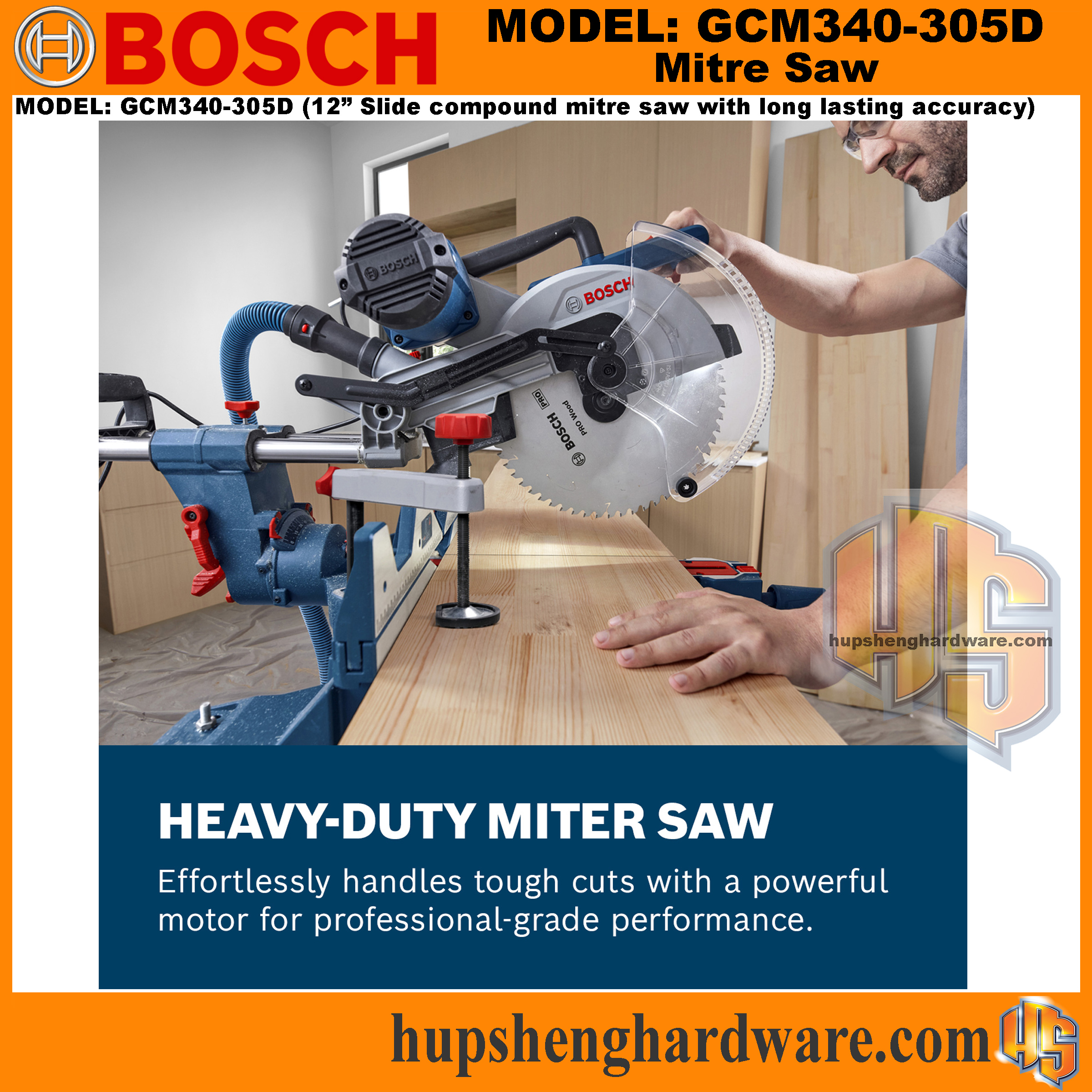

- Effortless cutting – even for large pieces of wood – thanks to strong cutting capacity driven by powerful motor

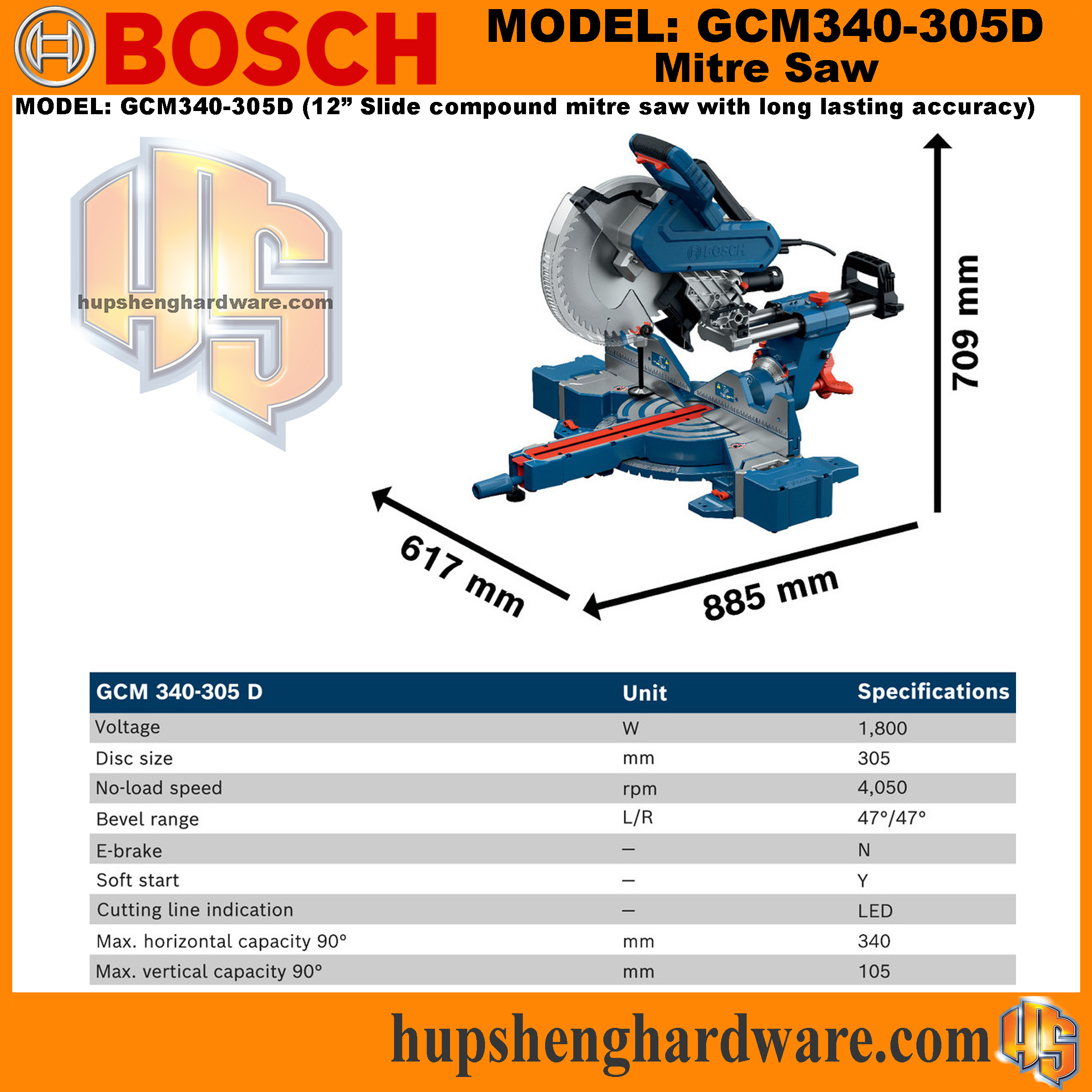

Specifications
| Saw blade diameter | 305 mm |
| Saw blade bore diameter | 25 mm |
| Rated input power | 1.800 W |
| Cutting capacity, 0° | 105 x 340 mm |
| Cutting capacity, 45° mitre | 105 x 245 mm |
| Cutting capacity, 45° bevel | 340 mm |
| Mitre setting | 52 ° L / 60 ° R |
| Bevel setting | 47 ° L / 47 ° R |
| Tool dimensions (width x length x height) | 617 x885 x709 mm |
| No-load speed | 4,050 rpm |
| Weight | 21,4 kg |
