Description
Model: Bosch GLL100-33XG
Bosch GLL100-33XG features 3 x 360° lines for simultaneous horizontal and vertical levelling, allowing for easy layout of large spaces with just one tool. For starting right away, the GLL 100-33 XG laser receiver mode is always activated.
Accessories Included
- AA1 alkaline battery adapter
1 608 M00 C1B - Ceiling clip DK 20 Professional
1 608 M00 C4C - Pouch
- Universal Mount LB 10 Professional
Features

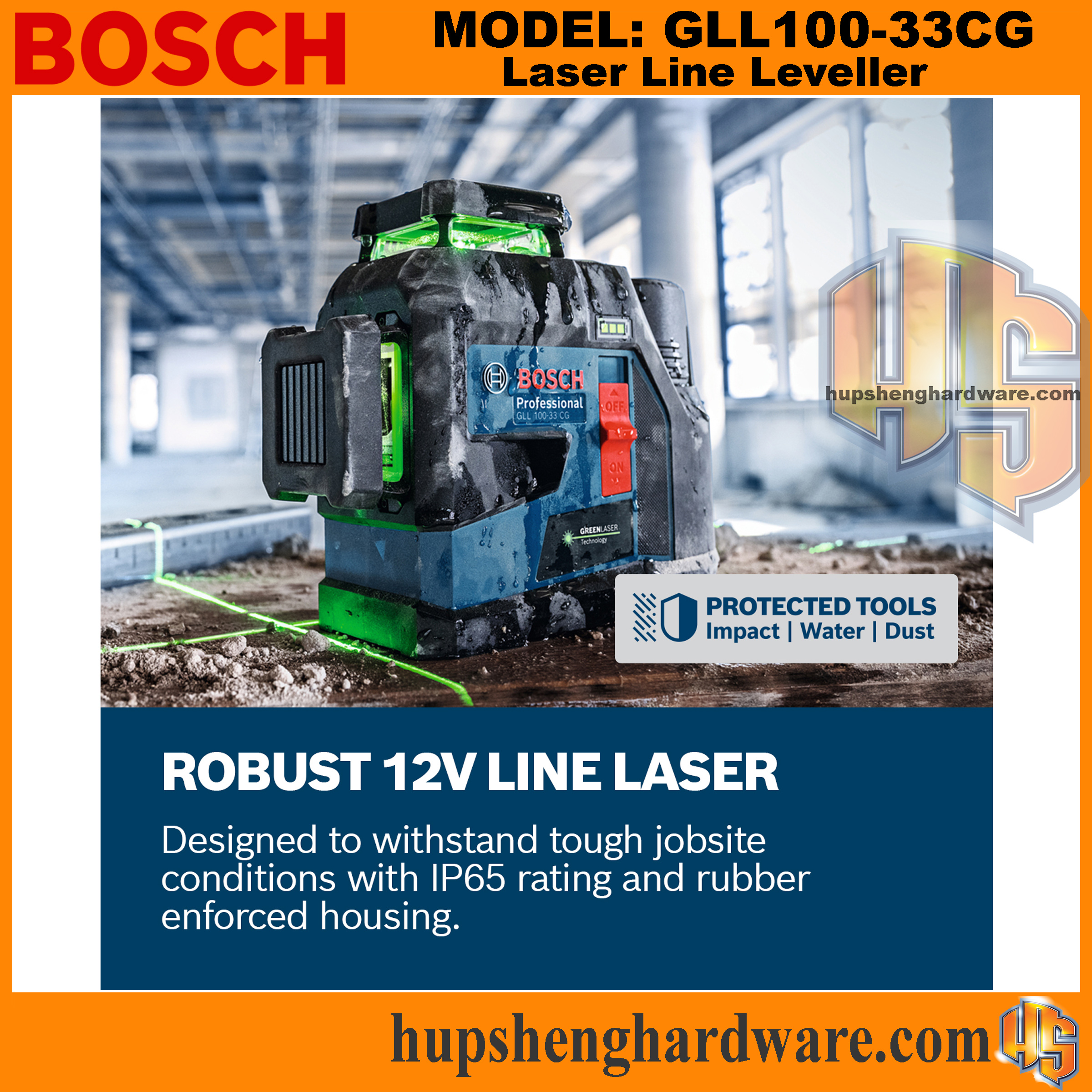

- Durable design with rubber enforced housing and IP65 rating ensures reliability in tough working conditions

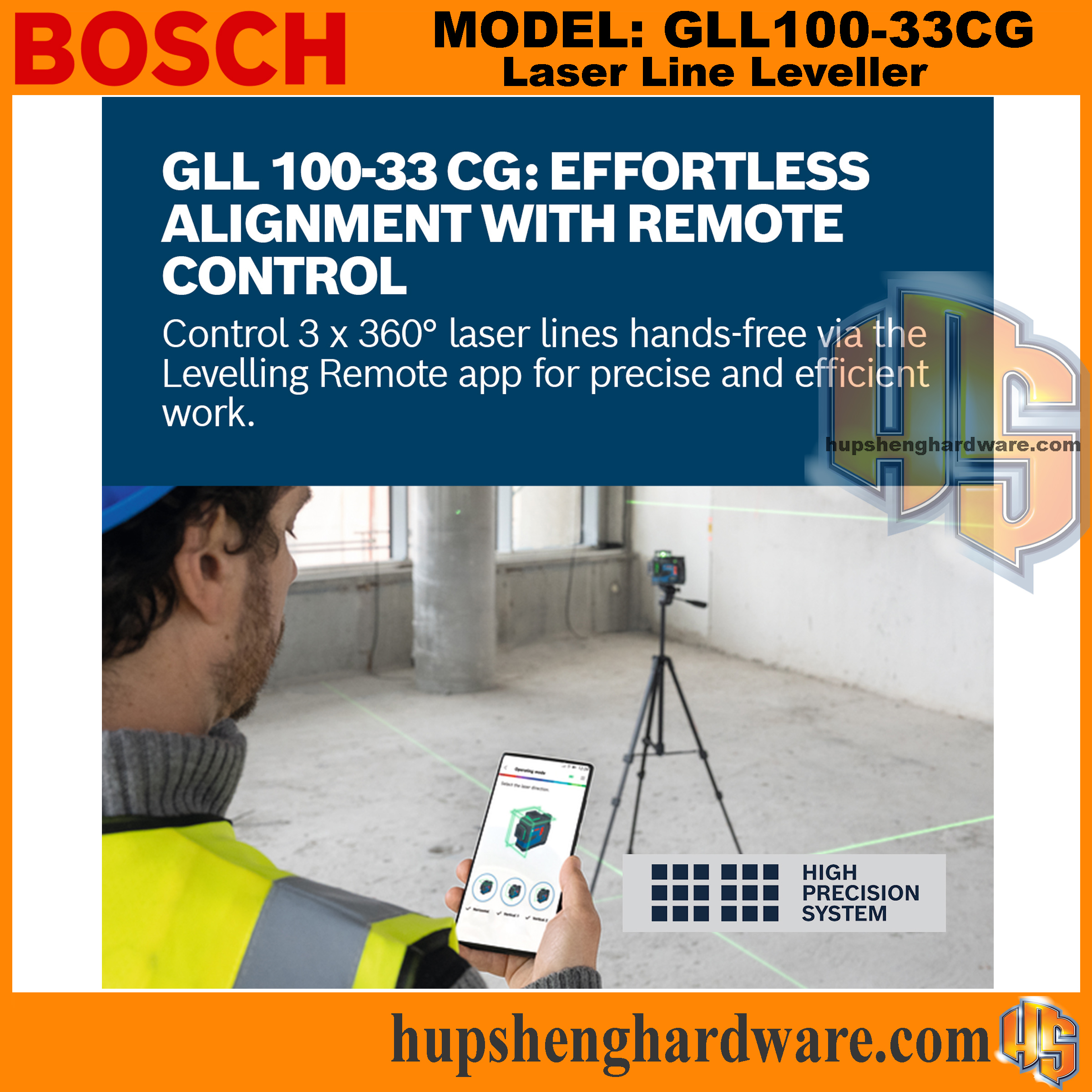

- Hands-free line control of the 3 x 360° laser lines via the Levelling Remote app for more accurate and time efficient working

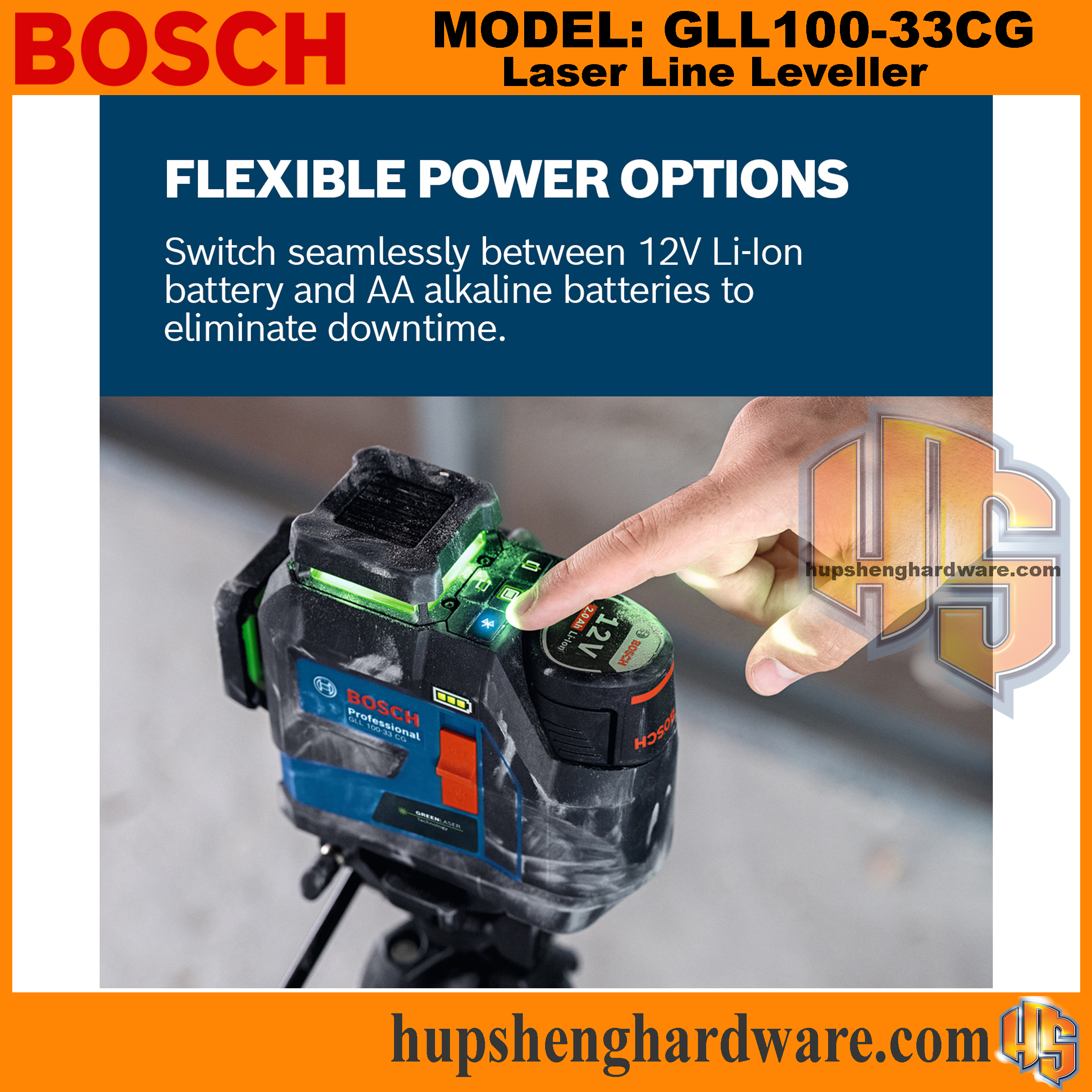

- Experience uninterrupted work with the flexibility to switch between 12V Li-Ion battery and AA alkaline batteries, eliminating downtime due to battery drain

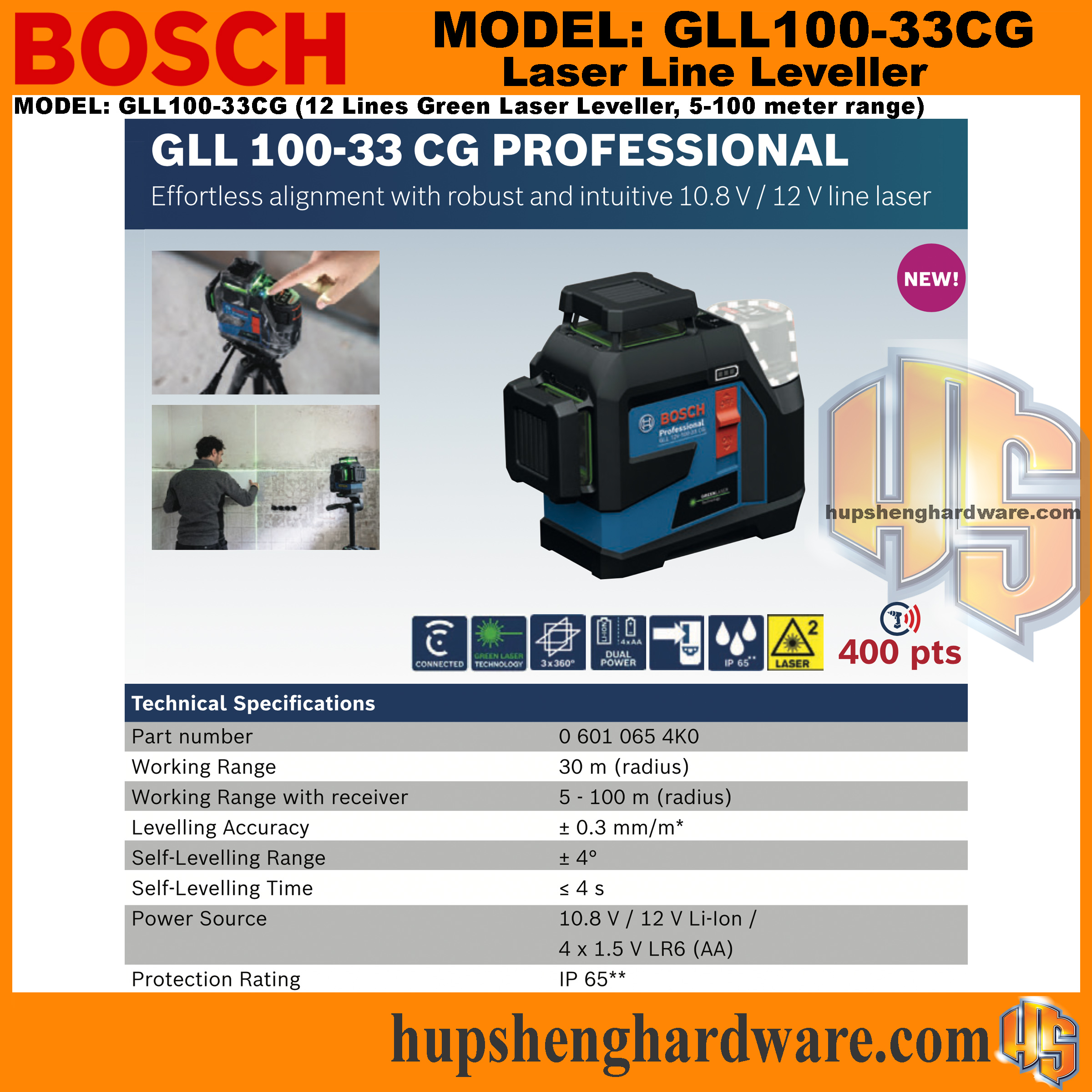

Specifications
| Battery voltage | 12.0 V |
| Laser diode | 500 – 540 nm, < 10 mW |
| Operating temperature | -10 – 40 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range, value | 30 m |
| Working range with receiver | 100 m (radius) |
| Accuracy | ± 0.3 mm/m |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Dust and splash protection | IP65 (except for the battery or battery adapter) |
| Power supply | 12 V Li-Ion battery 4 x 1.5 V LR6 (AA) |
| Operating time (max.) | 6 h (Li-Ion) and 4 h (4 x AA) in 3-line mode |
| Tripod thread | 1/4″ 5/8″ |
| Weight, approx. | 0.96 kg |
| Colour of laser line | green |
| Projection | 3 x 360° line |
| Compatible laser receivers | LR 7 |
