Description

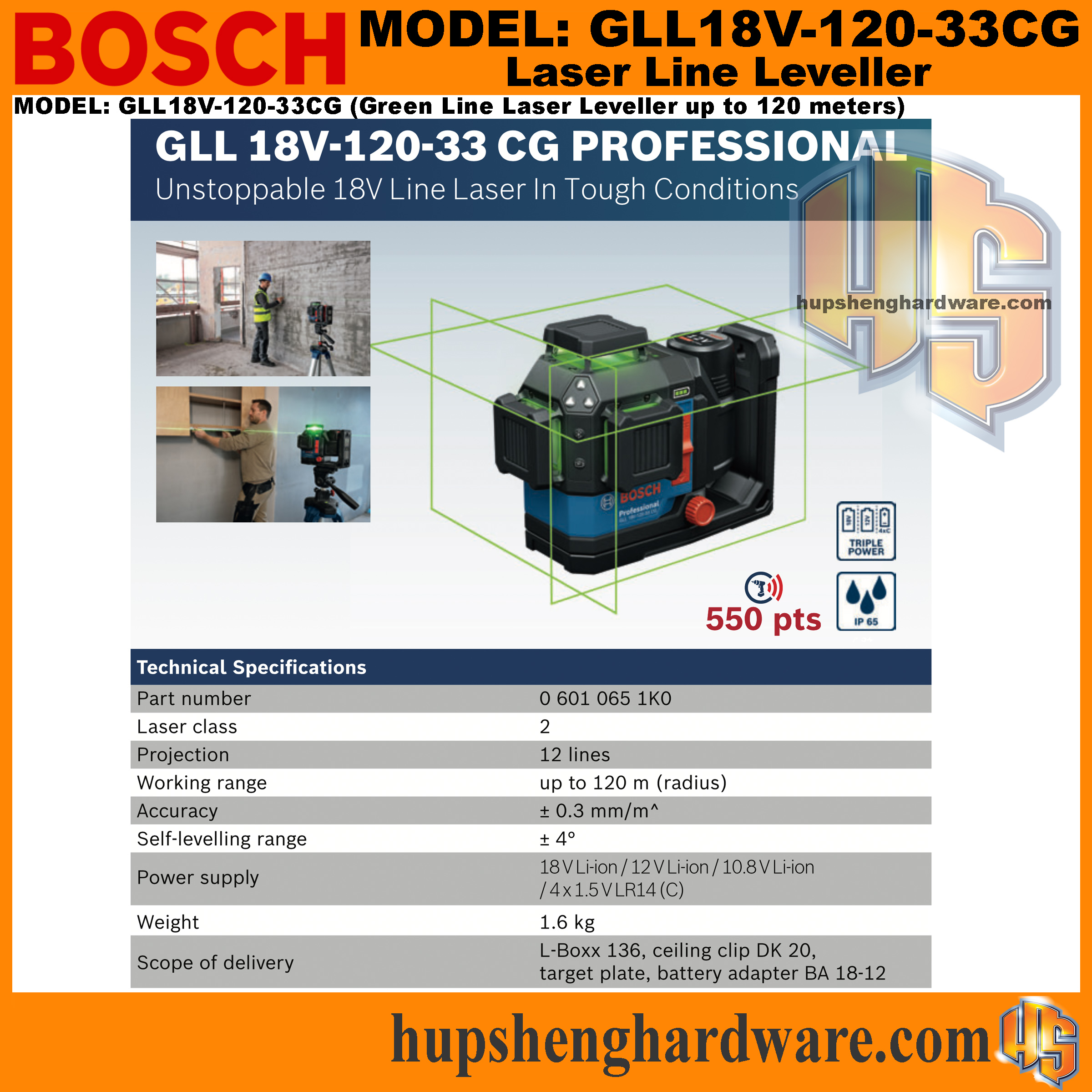

Model: Bosch GLL18V120-33CG
Bosch GLL18V-120-33CG Professional provides construction professionals with reliable accuracy in the toughest work conditions. The triple power source concept allows you to switch between 18V and 12V platforms, as well as alkaline C-cells to avoid downtime and stay focused on the job.

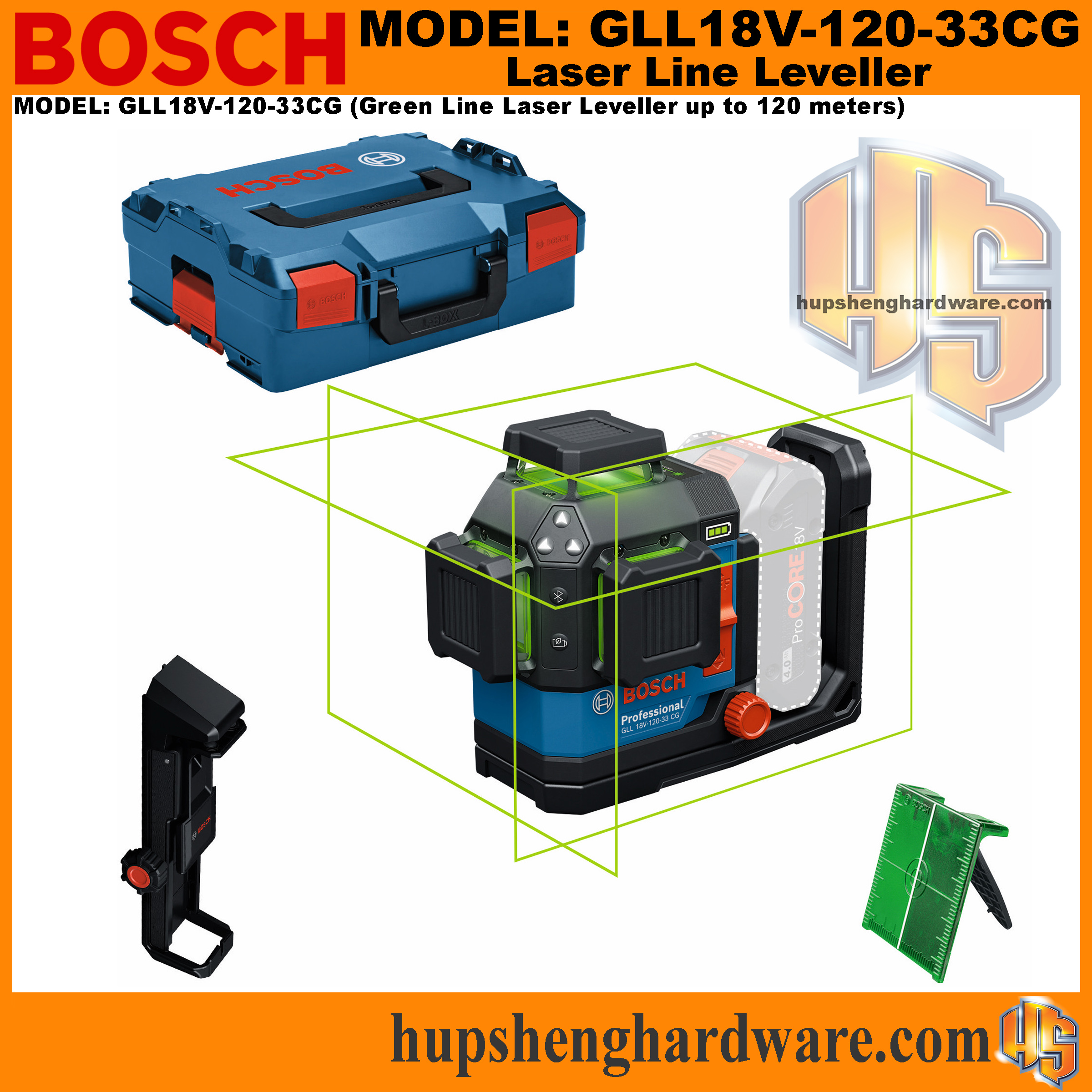

Accessories Included
-
L-BOXX 136Order number: 1 600 A01 2G0
-
Ceiling clip DK 20 ProfessionalOrder number: 1 608 M00 C4C
-
Laser target plate
-
Battery adapter BA 18-12Order number: 1 608 M00 C4A
Features

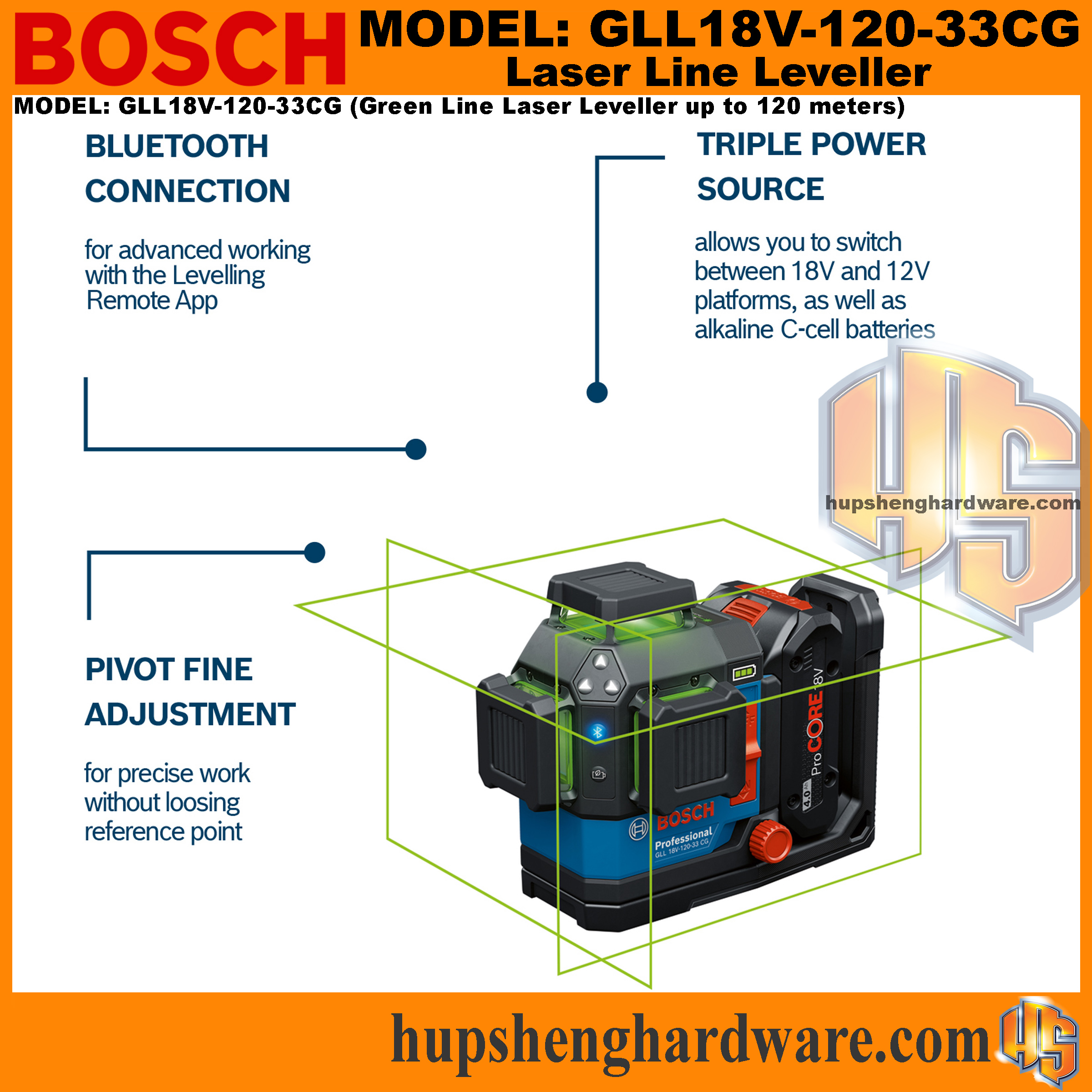

- Easily switch between 18V, 12V, and alkaline C-cell power sources to avoid downtime

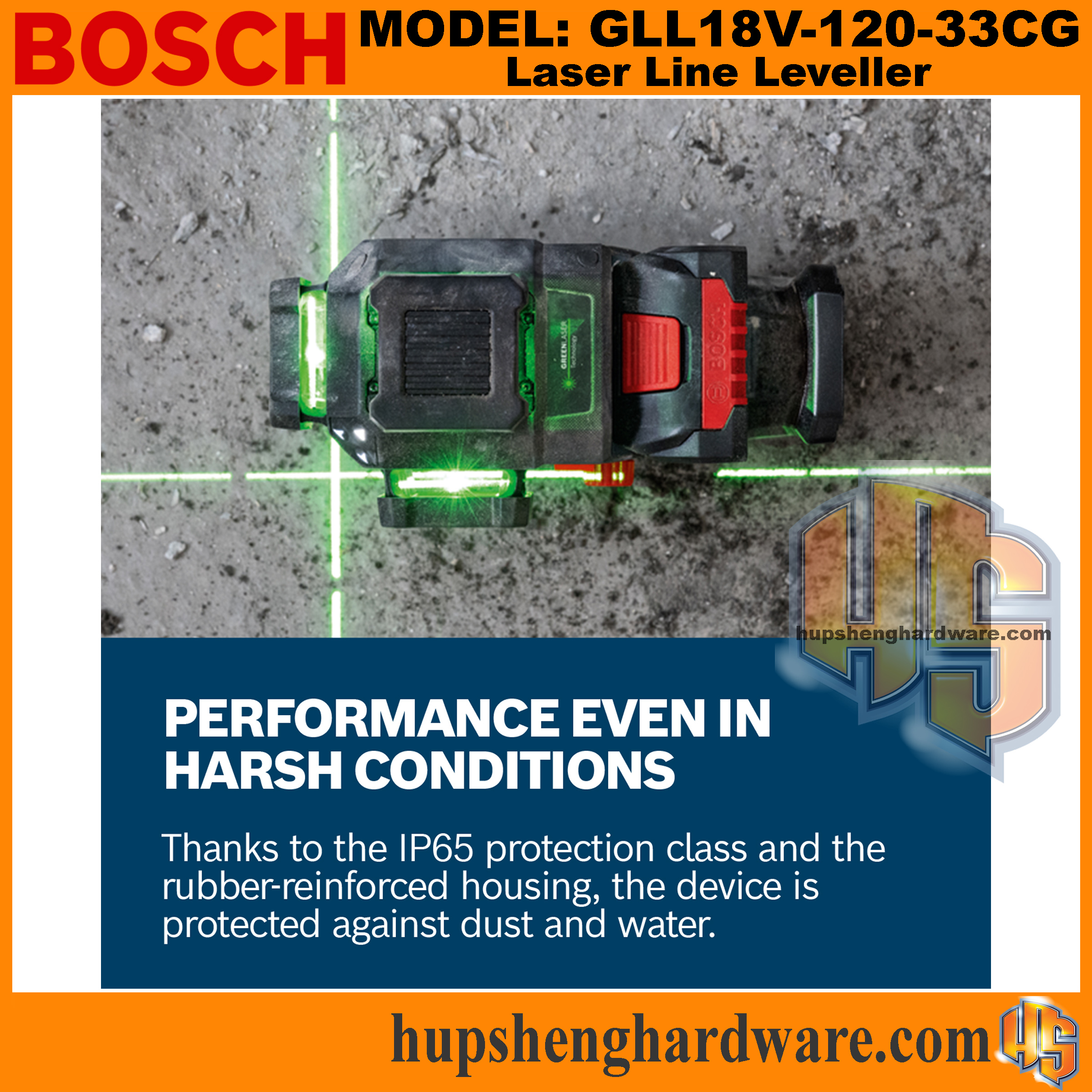

- Rubber-enforced housing and laser windows, and an IP65 rating for peace of mind on the toughest jobsites
- Secure mounting and precise work are made easy thanks to the integrated mount with strong magnets and pivot fine adjustment
Specifications
| Battery voltage | 18.0 V 12.0 V 4 x 1.5 V LR14 (C) |
| Laser diode | 500 – 540 nm, < 10 mW |
| Operating temperature | -10 – 40 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range, value | 35 m |
| Working range with receiver | 120 m (radius) |
| Accuracy | ± 0.3 mm/m |
| Self-levelling range | ± 4° |
| Levelling time | 3 s |
| Dust and splash protection | IP65 (except for the battery or battery adapter) |
| Power supply | 18 V Li-ion battery 12 V Li-Ion battery 4 x 1.5 V LR14 (C) |
| Operating time (max.) | 20 h (18V 4Ah Li-Ion) 8 h (12V 2Ah Li-Ion) 8 h (4 x C, energy saving mode) in 3-line mode |
| Tripod thread | 1/4″ 5/8″ |
| Weight, approx. | 1.3 kg |
| Colour of laser line | green |

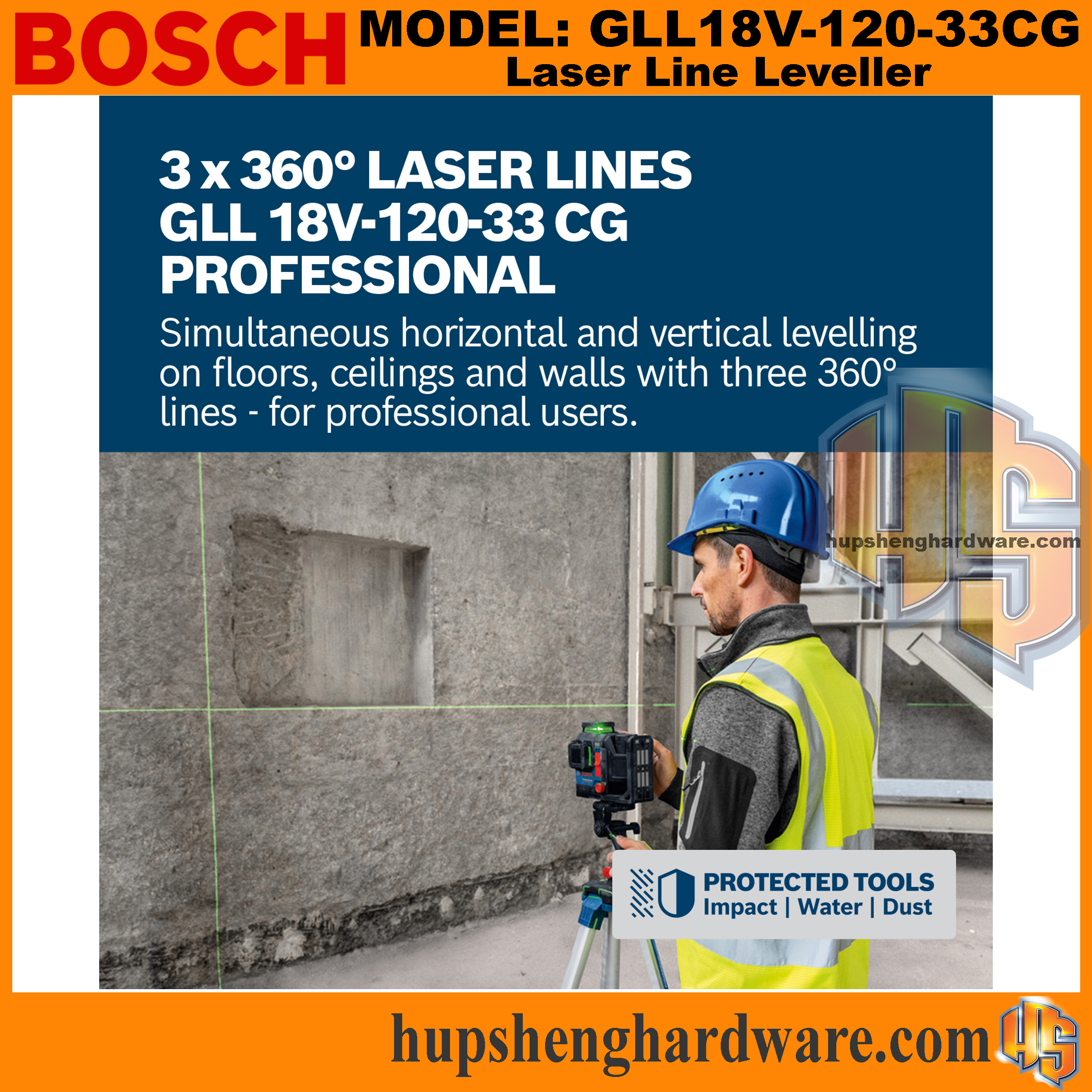

| Projection | 3 x 360° line |
| Compatible laser receivers | LR 7 |
| Weight with 4.0 Ah battery | 1.9 kg |
| Weight with alkaline batteries | 1.8 kg |
