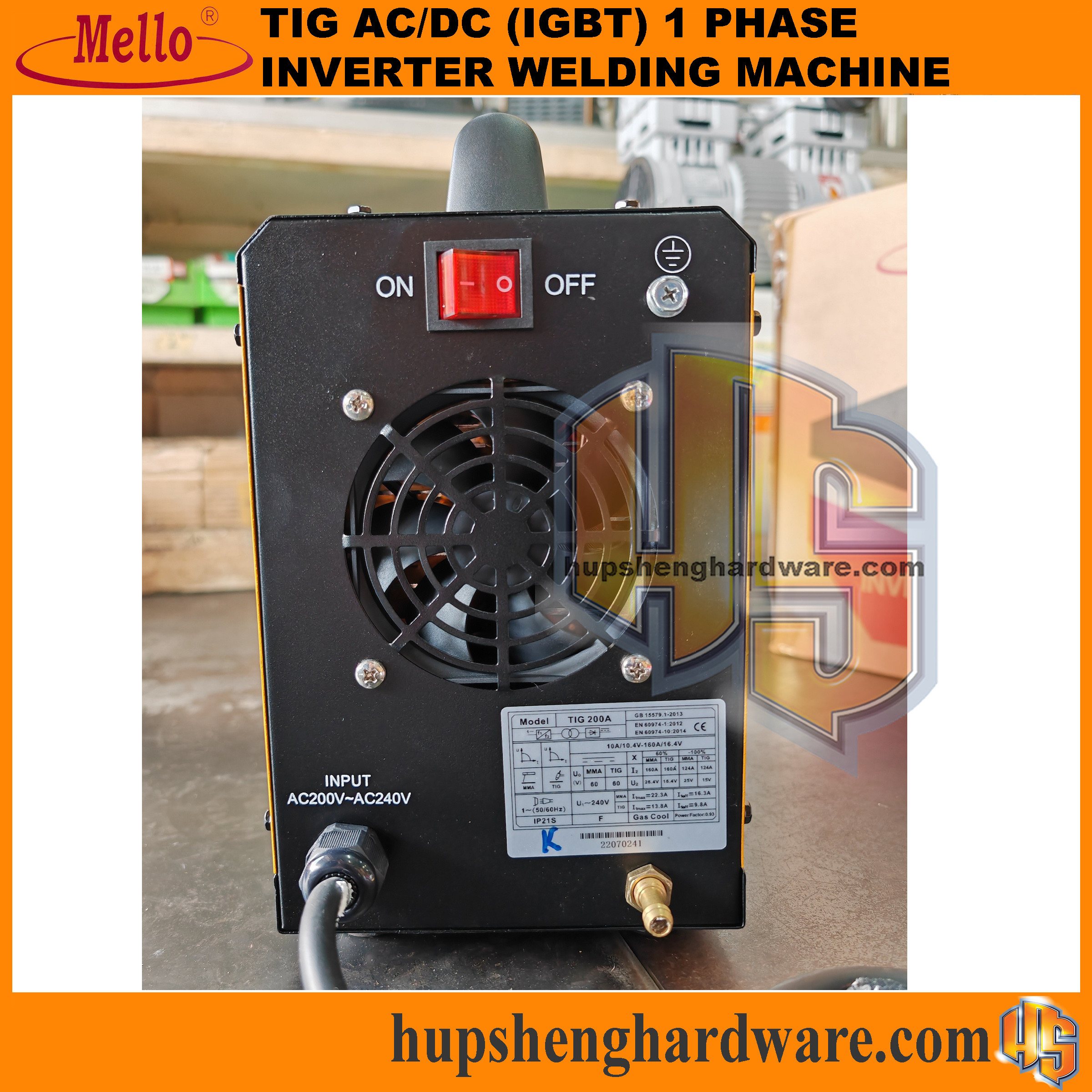

Mello TIG200A (IGBT): TIG MMA Welding Machine, Input 4.7kVA, Output 10-160Amp, Max Thick: 8mm, 7kg

RM780.00

Available on backorder

Description

Model: TIG200A

Mello TIG200A is a TIG welding with IGBT digital control with pulse.

  • 2 in 1 Function
    a) ARC Welding (Metal)
    b) TIG Welding (Stainless Steel)
  • Mello DC inverter TIG welding for thickness from 0.3mm to 8mm.

Specifications

ITEM / MODEL UNIT TIG-200A
Input Power Voltage / Freq V/Hz AC240V / 50Hz
Rate Input Power Capacity KVA 4.7
Rated Input Current A 21.5
No-load Voltage V 56
Rated Output Current A MMA : 10~160    TIG : 10~160
Rated Output Voltage V MMA : 26.4          TIG : 16.4
No-load Consumption W 60
Duty Cycle (25ºc) % 60
Efficiency % 85
Power factor (cosØ) 0.93
Insulation class F
Protection class S IP21S
Arc-starting HF
Postflow Time S 2.5 / 5
Weight (G.W / N.W) kg 9.7/ 6.8
Size (L x W x H) (CTN) mm 450 x 270 x 345
Accessories 1. Power cable 3M with 13A 3-pin plug.
2. Front Panel with KDP16 socket.

3. 300A Earth clamp with 3M 16mm² welding cable & KDP16 plug.
4. WP17 TIG Torch (Single line) 4M with set accs.
5. 3M 5/16” hose with 2pcs hose clip.
6. KDP16 Male 1pc.



Additional information

Weight 9 kg
Brand

Power Source
