Description
MODEL: Pentax MB150/01
Pentax MB150/01 is a two impeller compact centrifugal pump for constructing pressurisation systems for civil and industrial plant: guarantee good ratio between pressure and flow rate.
- WITHOUT Cable
- Motor Bracket: Cast Iron
- Impeller: Brass
SPECIFICATIONS
| Size Discharge | 1½” x 1¼” |
| Power | 1100 W / 240V |
| Flow Rate | 40 ~ 160 L/min |
| Head | 37.9 ~ 23.3 meters |
| Manometric Suction Lift | Max. 6 meters |

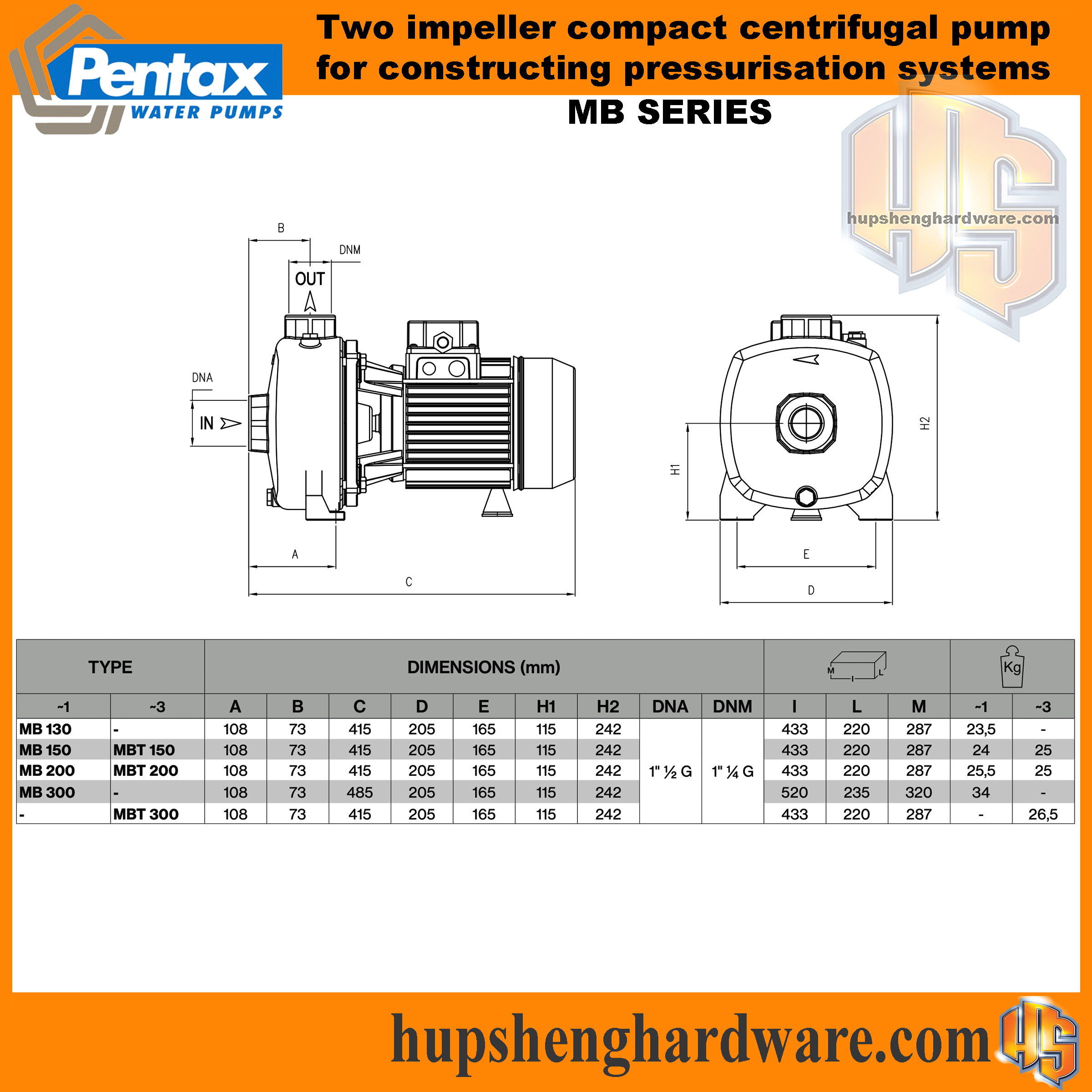

| Dimensions (L x W x H) | 415 x 205 x 242mm |
| Weight | 25kg |
CONSTRUCTION FEATURES
| CONSTRUCTION FEATURES | |
|---|---|
| Pump body | cast iron |
| Motor bracket | cast iron |
| Impeller | noryl® or brass |
| Seal | ceramic-graphite-NBR |
| Pump shaft end | steel AISI 303 |
| Ambient temperature | 0 – 50 °C |
| Pump body gasket | max 8 bar |
MOTOR
| 2 poles induction motor | 3~ 230/400V-50Hz 1~ 230V-50Hz (with thermal protection) |
|---|---|
| Insulation class | F |
| Protection degree | IPX4 |
