Description
Model: Mello CUT120C

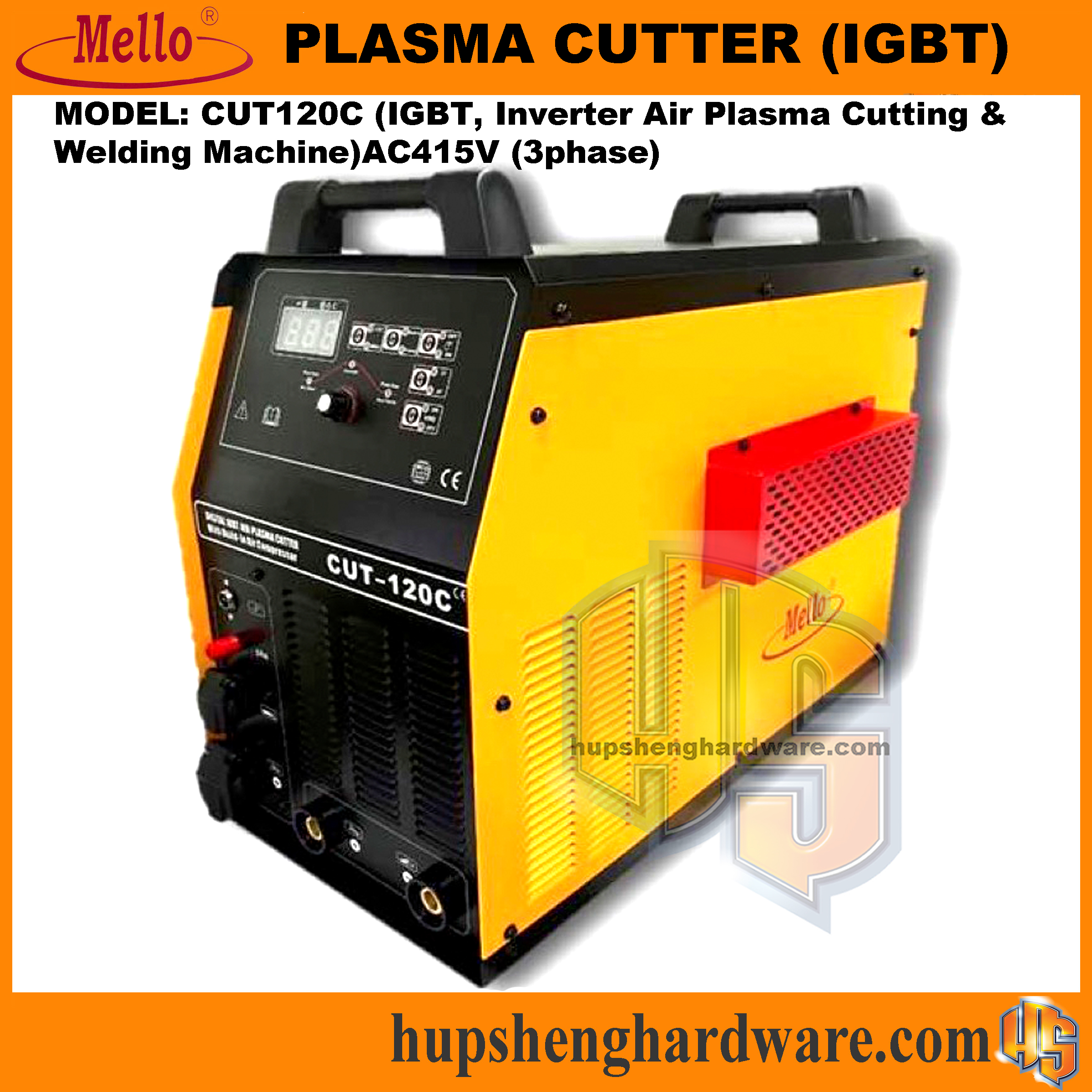

Mello CUT120C inverter air plasma cutting machine with IGBT technology and built in compressor.
It is portable enough to be carried to any job site. Connect to air compressor, grab the torch and start cutting right away.
Features
- Rate input power capacity: 15.2kVA
- Current Range: 20-100Amp
- Max. cutting thickness : 40mm

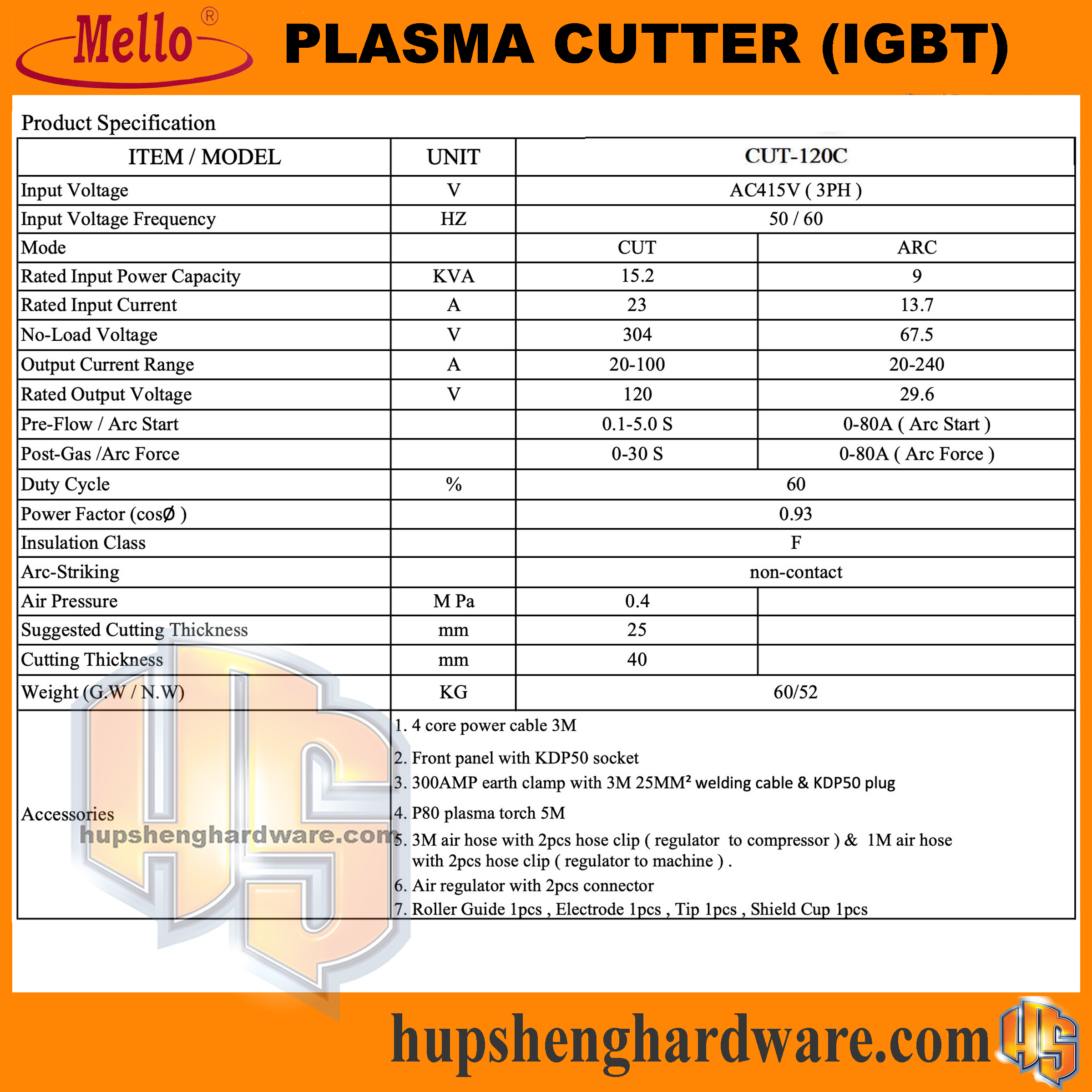

Specifications
| Input Voltage | V | AC415V ( 3PH ) | AC415V ( 3PH ) |
| Input Voltage Frequency | HZ | 50/60 | 50/60 |
| Mode | CUT | ARC | |
| Rate Input Power Capacity | KVA | 15.2 | 9 |
| Rate Input Current | A | 23 | 13.7 |
| No-Load | V | 304 | 67.5 |
| Output Current Range | A | 20-100 | 20-240 |
| Rate Output Voltage | V | 120 | 29.6 |
| Pre-Flow / Arc Start | 0.1-5.0 S | 0-80A (Arc Start) | |
| Post-Gas / Arc Force | 0-30 S | 0-80A (Arc Force) | |
| Duty Cycle | % | 60 | 60 |
| Power Factor (cosØ) | 0.93 | 0.93 | |
| Insulation Class | F | F | |
| Arc-Stricking | non-contact | non-contact | |
| Air Pressure | M Pa | 0.4 | |
| Suggested Cutting Thickness | mm | 25 | |
| Cutting Thickness | mm | 40 | |
| Weight | kg | 52 | 52 |
| Accessories | 1. 4 core power cable 3M 2. Front panel with KDP50 socket 3. 300AMP earth clamp with 3M 25MM² welding cable & KDP50 plug 4. P80 plasma torch 4. 3M air hose with 2pcs hose clip ( regulator to compressor ) & 1M air hose with 2pcs hose clip ( regulator to machine ) 5. Air regulator with 2pcs connector 6. Roller Guide 1pcs , Electrode 1pcs , Tip 1pcs , Shield Cup 1pcs |
