Description

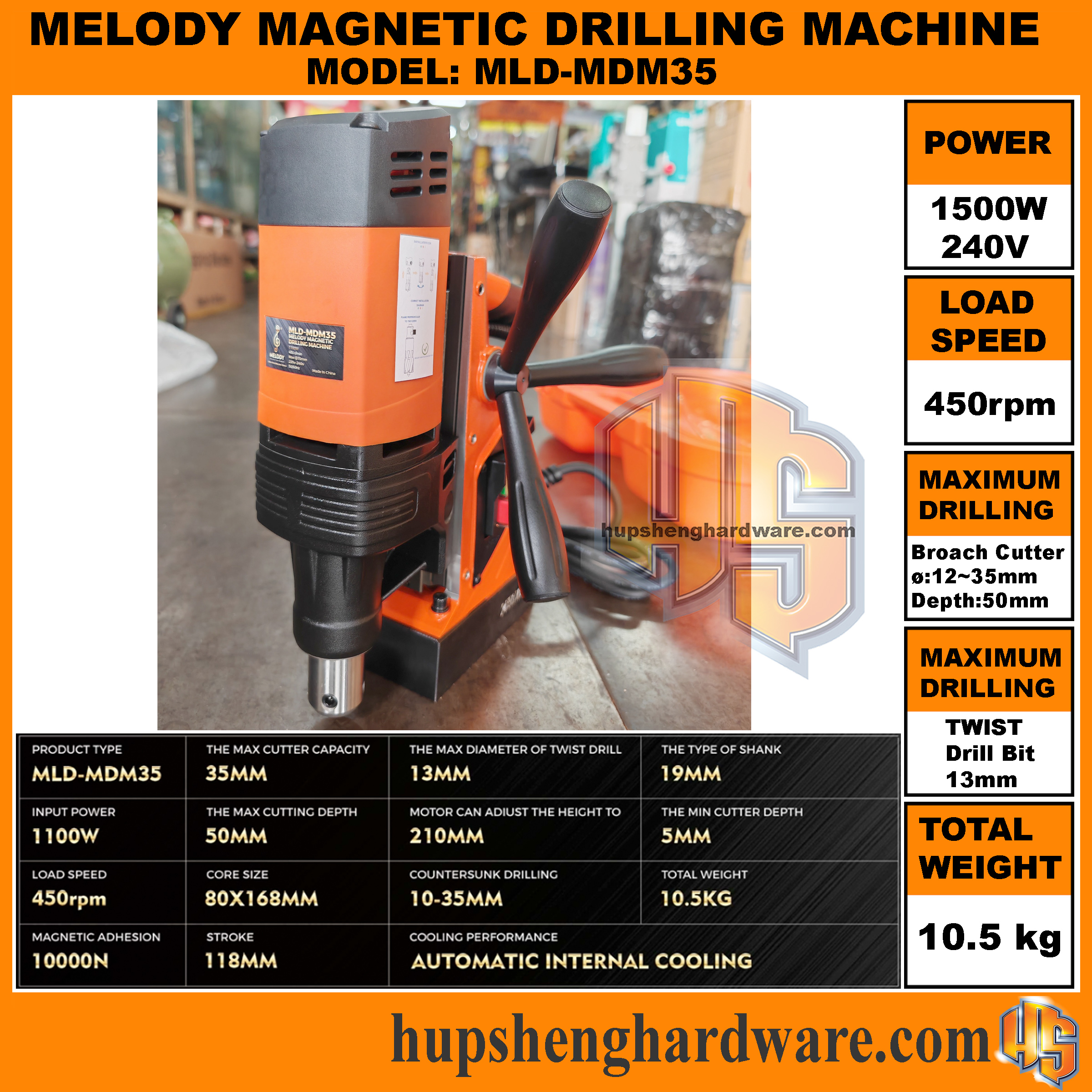

Model: Melody MLD-MDM35
Melody MLD-MDM50 is a magnetic drill with double sided slide rail, 1500w input power armature and magnetic adhesion of 15000N.

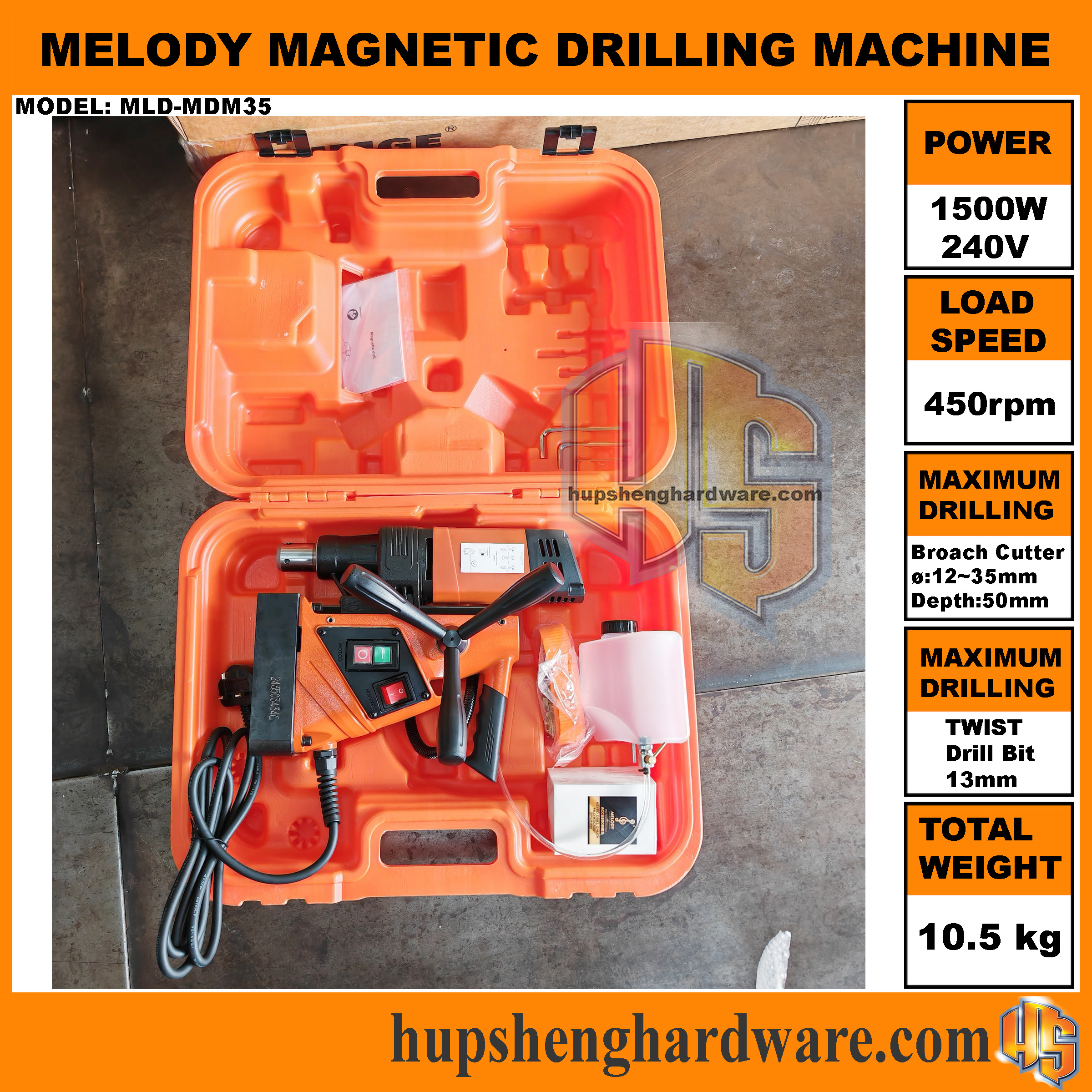

Accessories Included
- PVC container for coolant
- Hanging belt

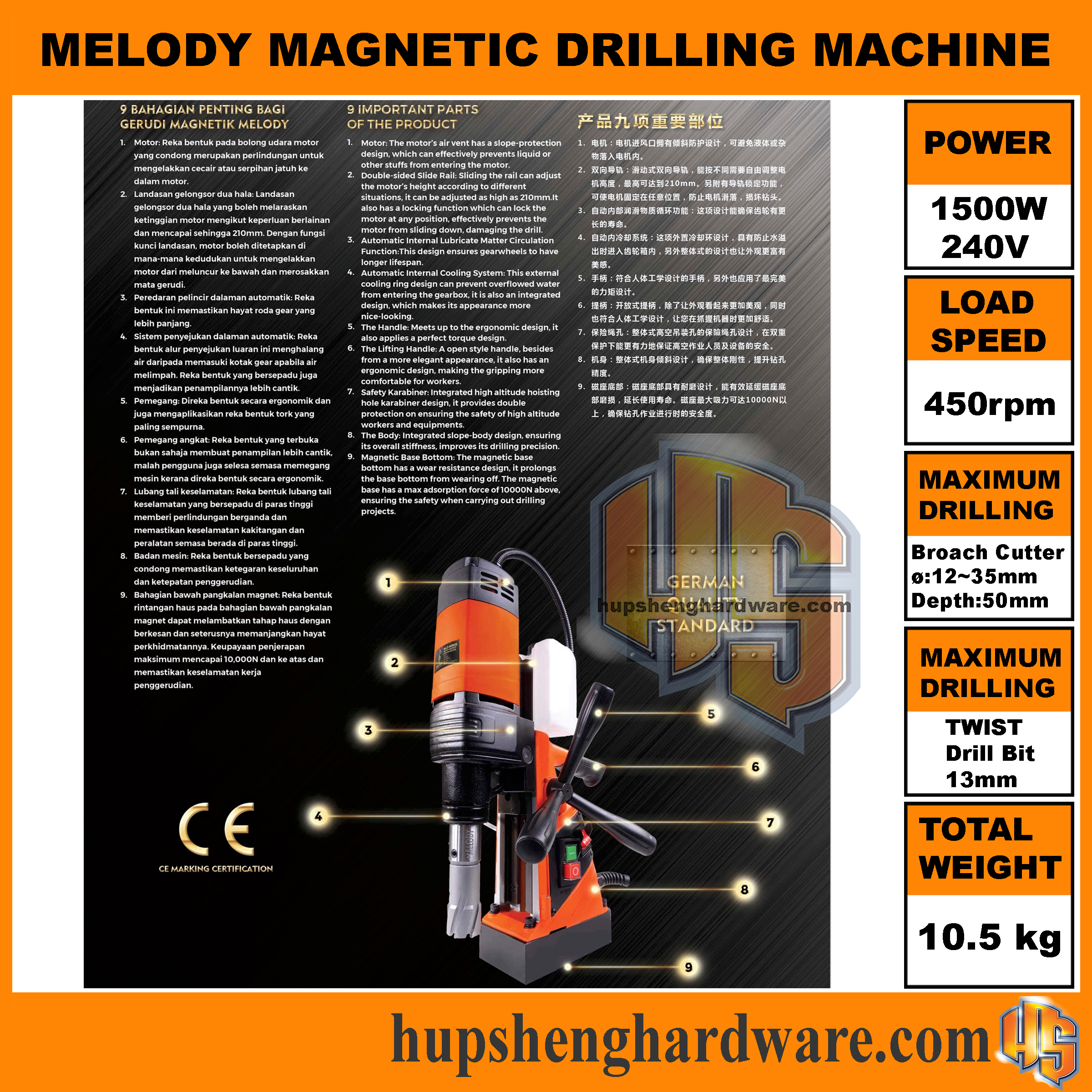

Features
- Motor’s air vent with slope protection design which can effectively prevents liquid or dust entering the motor.
- Double sided slide rail which can adjust the the motor’s height according to different situations.
- Automatic internal lubricate matter circulation function : to ensures gearwheels to have longer lifespan.
- Integrated slope-body design to ensure it overall stiffness and its drilling precision.
- Magnetic base bottom has a wear resistance design, it prolongs the base bottom from wearing off.

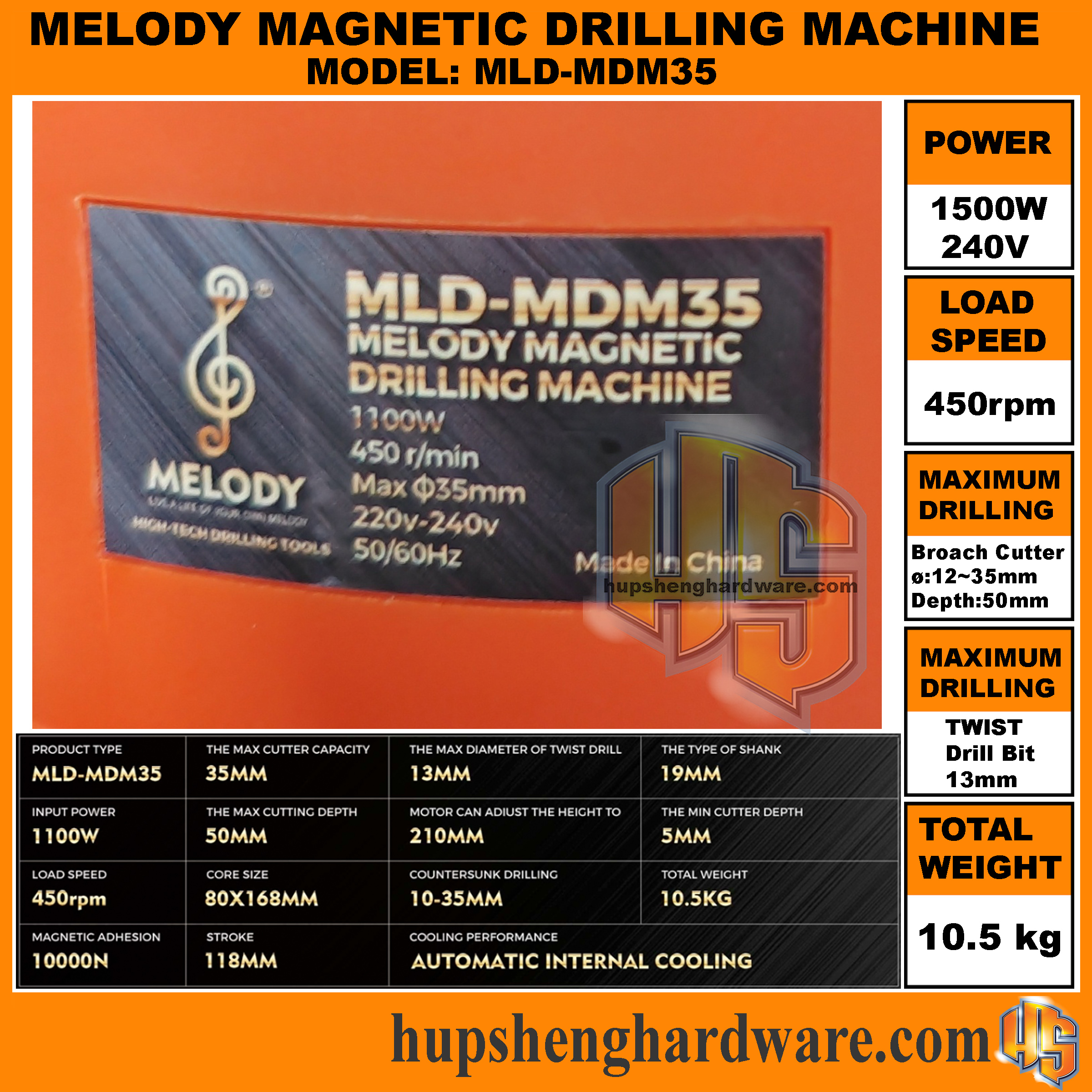

Specifications
| Input Power | 1100W, 240V, 50Hz |
| Load Speed | 450rpm |
| Magnetic Adhesion | 10000N |
| Maximum Drilling Size with TCT Broach Cutter | 12~35mm |
| Maximum Drilling Size with Twist Drill Bit | 3~13mm |
| Maximum Cutting Depth | 50mm |
| Core Size | 80 x 168mm |
| Stroke | 118mm |
| Adjustable Height for Motor | 210mm |
| Countersunk Drilling | 10~35mm |
| Shank Type | Weldon Shank |
| Minimum Cutting Depth | 5mm |
| Total Weight | 10.5kg |
| Cooling System for Motor | Automatic Internal Cooling |
