Description
Model: Melody MLD-MDM35Z
Melody MLD-MDM35Z is a magnetic drill can perform multi drilling directions in the front, side, and top surfaces on narrow space. Featured with auto feed function and laser positioning and magnetic adhesion of 90000N.
Features
- Adjustable water cooling direction
- Foldable handle
- Automatic feed function
- Laser marking
- High precision gears with low noise and long lifespan

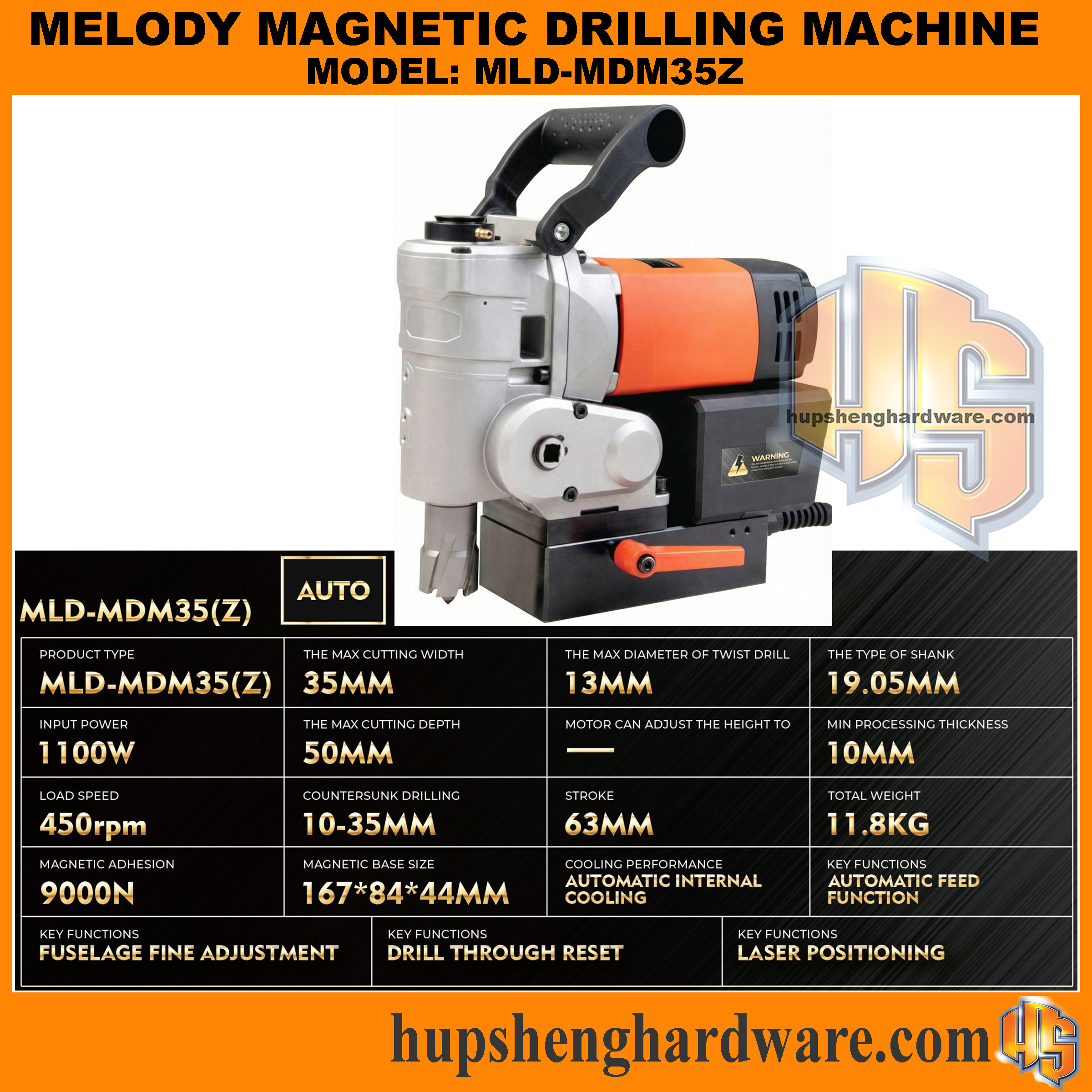

Specifications
| Input Power | 1100W, 240V, 50Hz |
| Load Speed | 450rpm |
| Magnetic Adhesion | 9000N |
| Maximum Drilling Size with TCT Broach Cutter | 10~35mm |
| Maximum Drilling Size with Twist Drill Bit | 3~13mm |
| Maximum Cutting Depth | 50mm |
| Countersunk Drilling | 10~35mm |
| Stroke | 63mm |
| Adjustable Height for Motor | N/A |
| Shank Type | Weldon Shank 19.05mm |
| Minimum Metal Thickness for Magnet Adhesion | 10mm |
| Magnetic Base Size | 167 x 84 x 44mm |
| Total Weight | 11.8kg |
