Description
Model: Pedrollo TURBO6A (Made in Italy)

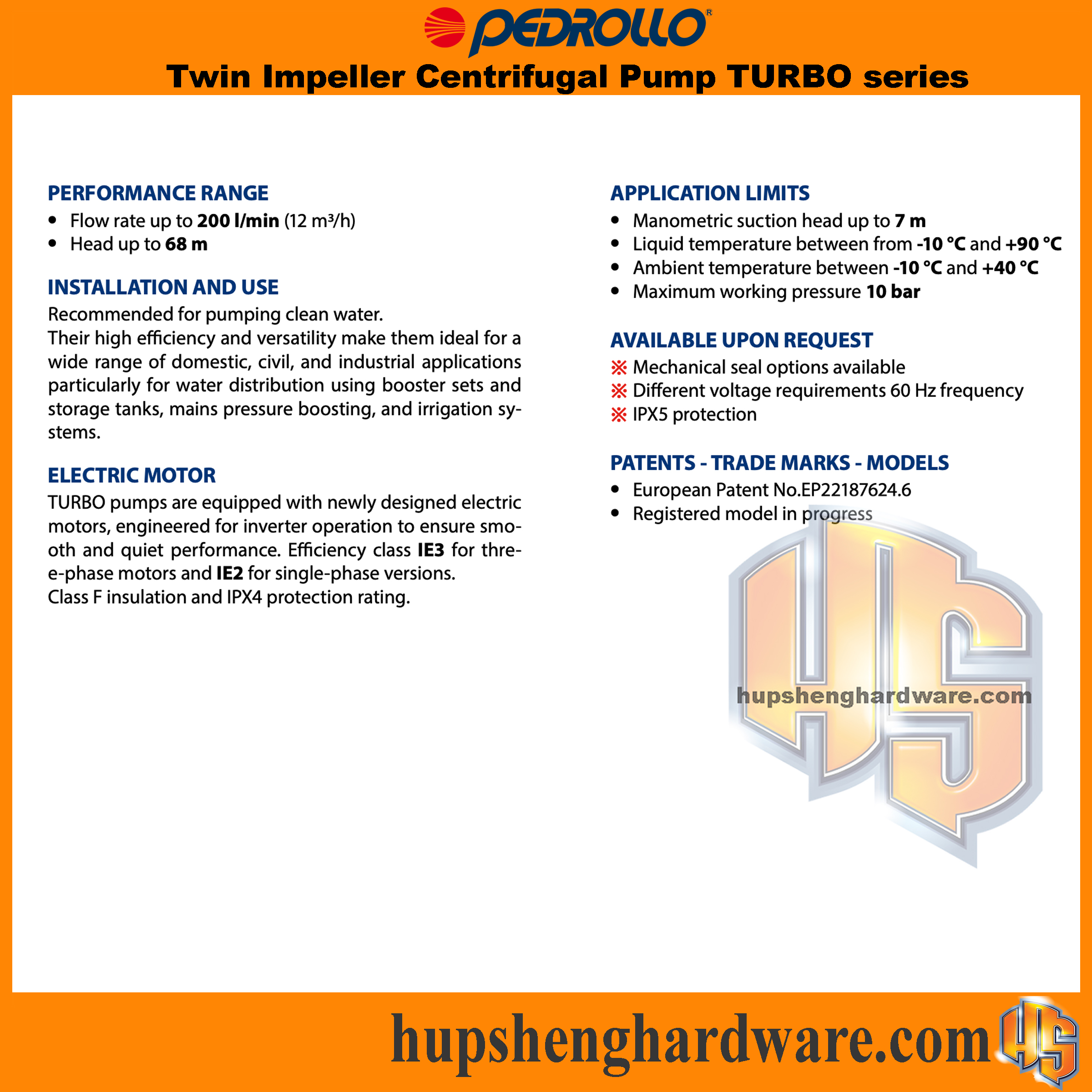

Pedrollo TURBO6A double impeller centrifugal electric pump. Recommended for pumping clean water. Their high efficiency and versatility make them ideal for a wide range of domestic, civil, and industrial applications particularly for water distribution using booster sets and storage tanks, mains pressure boosting, and irrigation systems.
Features
- ADVANCED HYDRAULIC REDESIGN:The new TURBO twin-impeller centrifugal pumps mark a significant step forward, thanks to an advanced hy- draulic redesign optimised through state-of-the-art flu- id dynamic simulations.
- This innovative approach has led to a flow rate increase of up to 40% (+40 litres per minute), a 9-point boost in efficiency, and a 30% reduction in noise levels all without raising energy consumption.
-
Efficiency class IE3 for three-phase motors and IE2 for single-phase versions. Class F insulation and IPX4 protection rating.
Application Limit
- Temperature of the liquid from -10 °C to +90 °C
- Ambient Temperature da -10 °C to +40 °C
- Manometric suction lift up to 7 m
- Max. working pressure 10 bar
Specifications
| Size Discharge | 1¼” x 1″ |
| Power | 2200 W / 3 Phase |
| Flow Rate | 20 ~ 200 L/min |
| Head | 66.5 ~ 21 meters |
| Manometric Suction Lift | Max. 7 meters |
| Liquid Temperature | Max. +90°C |
| Environment Temperature | Max. +40°C |
| Dimensions (L x W x H) | 423mm x 225mm x 256mm |
| Weight | 27.3 kg |
Accessories Included
- Without cable
- Carton box
